Place of Origin:
Guangdong, China
Brand Name:
Hilink
Certification:
CE FCC Rohs
Model Number:
HL-DWDM-8CH

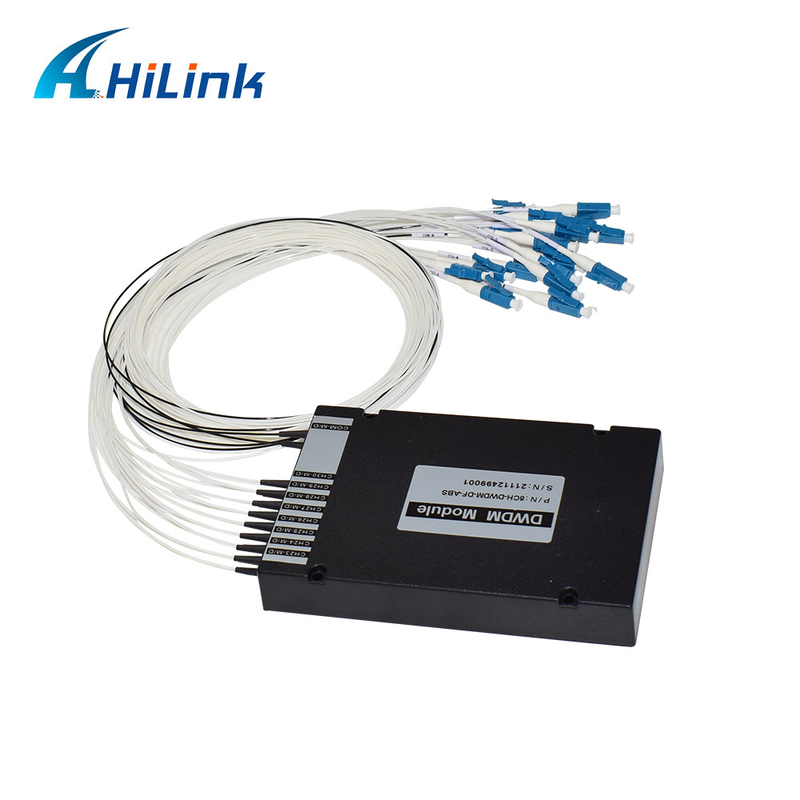

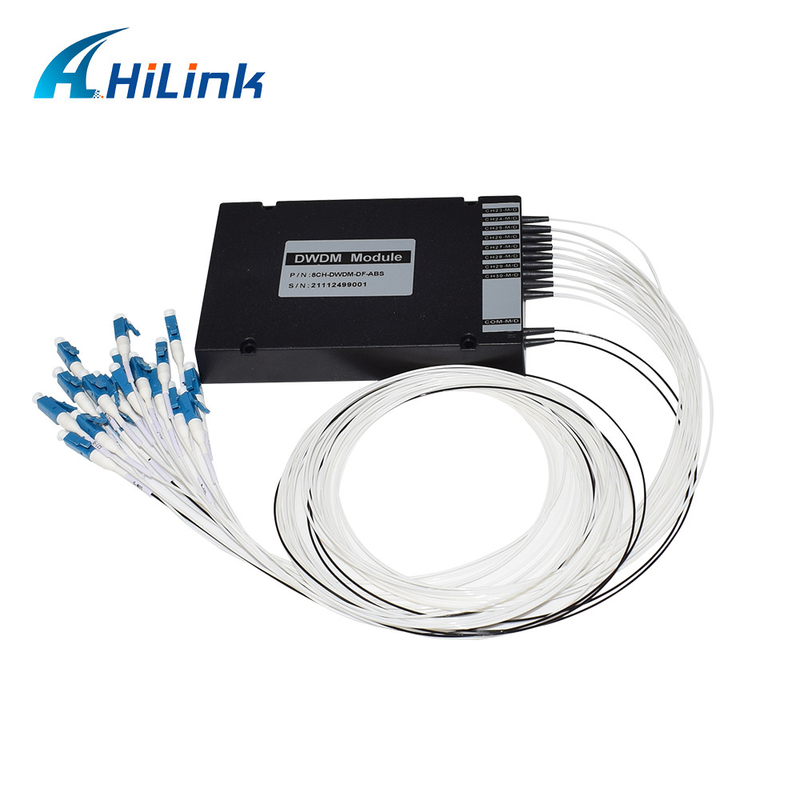

8CH DWDM Module Fiber Optic Mux and Demux CH23-CH30 Dual Fiber ABS Box Package
DWDM (Dense Wavelength Division Multiplexer) Mux/Demux Module offers high stable and reliable bandwidth in a cost-effective and small package. It's used with10G 80km DWDM SFP+ Transceiver for Long-Haul transportion.
* C Band
* 2-44 channels DWDM Mux/Demux (CH17-CH61)
* Channel spacing: 0.8nm(100GHz Grid)
* Com port is simplex
* Protocol transparent (10Mbps to 100Gbps)
* Low insertion loss
* Excellent channel isolation
* Epoxy-free optical path
* Compliant to G.657A1 standard
* ISO 9001 manufacturing facility
* Wide Operating Temperature: -20~+70℃
* Channel Add/Drop
* DWDM Network
* Wavelength Routing
* Fiber Optical Amplifier
* CATV System
| HL | Channel Spacing | Channel Number | Configuration | 1st Channel | Fiber Type | Fiber Length | Connector |
| Hilink |
1=100GHz 2=200GHZ |
4=4-Channel 8=8-Channel 16=16-Channel 32=32-Channel |
M=Mux D=Demux |
21=1560.61nm 22=1559.79nm 23=1558.98nm… |
1=Bare fiber 2=900um Jacket |
1=1 Meter 2=2 Meter
|
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC
|
