Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-QSFP28-100G-ER4
Video
100G Ethernet QSFP28 100G 40KM QSFP LWDM SMF SFP Transceiver DOM
PRODUCT DESCRIPTIONS
This product is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-ER4 Lite standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.
The central wavelengths of the 4 LAN WDM channels are 1295.56, 1300.05, 1304.58 and 1309.14 nm as members of the LAN WDM wavelength grid defined in IEEE 802.3ba. The high performance cooled LAN WDM EA-DFB transmitters and high sensitivity receivers provide superior performance for 100Gigabit Ethernet applications up to 40km links with FEC.
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP+ Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.
PRODUCT FEATURES
Hot pluggable QSFP28 MSA form factor
Compliant to IEEE 802.3ba 100GBASE-ER4 Lite
Up to 40km reach for G.652 SMF with FEC
Single +3.3V power supply
Operating case temperature: 0~70℃
Transmitter: cooled 4x25Gb/s LAN WDM TOSA (1295.56, 1300.05, 1304.58, 1309.14nm) with hermetic packages
Receiver: 4x25Gb/s ROSA with hermetic packages
4x28G Electrical Serial Interface (CEI-28G-VSR)
Maximum power consumption 4.5W
Duplex LC receptacle
RoHS-6 compliant
APPLICATIONS
100GBASE-ER4 Ethernet Links
Infiniband QDR and DDR interconnects
Client-side 100G Telecom connections
QSFP SERIES
| Part Number | Product Description |
| HL-QSFP-40G-SR4 | QSFP+, 40Gb/s, 40GBASE-SR4, MMF, 850nm, 100M |
| HL-QSFP-40G-LR4 | QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM |
| HL-QSFP-40G-ER4 | QSFP+, 40Gb/s, 40GBASE-ER4, SMF, 1310nm, 40KM |
| HL-QSFP28-100G-SR4 | QSFP28, 100Gb/s, 100GBASE-SR4, MMF, 850nm, 100M |
| HL-QSFP28-100G-LR4 | QSFP28, 100Gb/s, 100GBASE-LR4, SMF, 1310nm, 10KM |
| HL-QSFP28-100G-ER4 | QSFP28, 100Gb/s, 100GBASE-ER4, SMF, 1310nm, 40KM |
| HL-QSFP28-100G-ZR4 | QSFP28, 100Gbs, 100GBASE-ZR4, SMF, 1310nm, 60KM |
| HL-QSFP28-100G-ZR4 | QSFP28, 100Gb/s, 100GBASE-ZR4, SMF, 1310nm, 80KM |

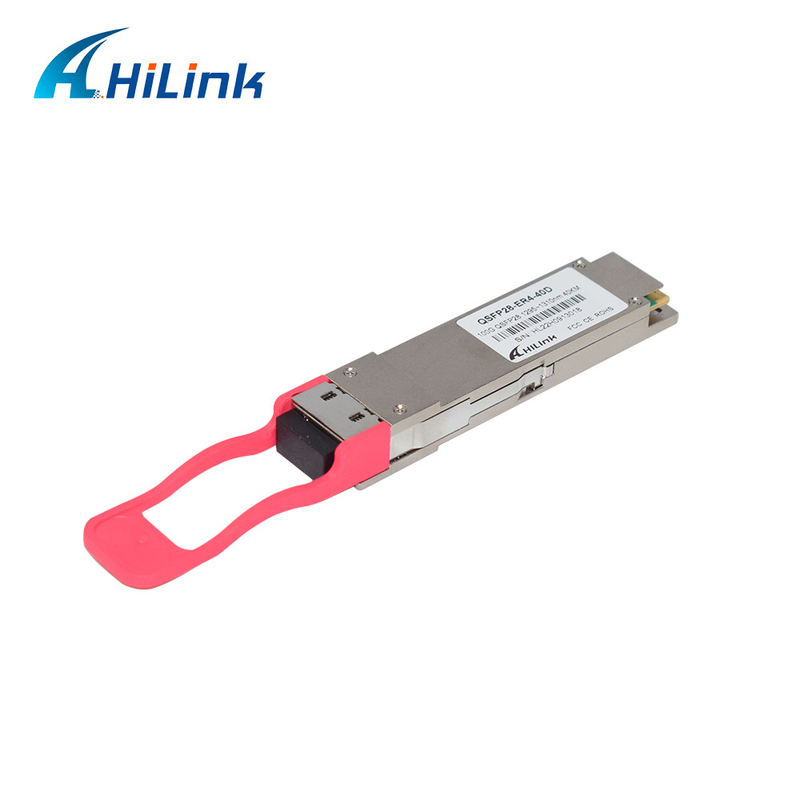

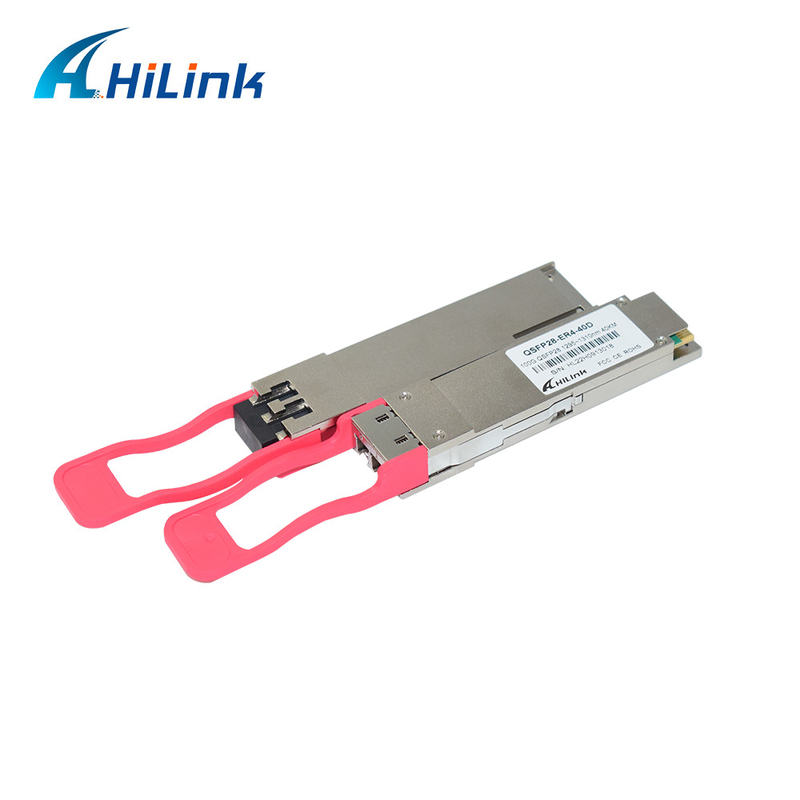

PRODUCT PICTURE SHOW
