5m Active Optical Cable AOC Cable 200G QSFP56 SR4 To 2xQSFP56 SR2 850nm

5m Active Optical Cable AOC Cable 200G QSFP56 SR4 To 2xQSFP56 SR2 850nm

5m Active Optical Cable

Data centers AOC Cable

200G QSFP56 AOC Cable

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-QSFP56-200G-AOC1M

Contact Us
Request A Quote
5m Active Optical Cable AOC Cable 200G QSFP56 SR4 To 2xQSFP56 SR2 850nm
5m Active Optical Cable AOC Cable 200G QSFP56 SR4 To 2xQSFP56 SR2 850nm 5m Active Optical Cable AOC Cable 200G QSFP56 SR4 To 2xQSFP56 SR2 850nm
Product Details
Product Name:
200G QSFP56 SR4 To 2xQSFP56 SR2
Data Transfer Rate:
200G
Length:
5m Or Customizted
Warranty:
1 Year
Compatible:
Cisco,Huawei,Finisar,Dlink Etc
Application:
Telecommunication
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Static bag, Plastic bag, Retail box or by required
Delivery Time
5-7 days
Payment Terms
L/C, T/T, Western Union,Paypal
Supply Ability
100pcs/week
RELATED PRODUCTS
Good price QSFP Cable Series 40G Active Optic Cable with Maximum Power Dissipation of 1.5W per end online

QSFP Cable Series 40G Active Optic Cable with Maximum Power Dissipation of 1.5W per end

Get Best Price
Good price 40G QSFP+ to QSFP+ AOC Active Optical Cable 20M OM3 Optical Transceiver Module Cable online

40G QSFP+ to QSFP+ AOC Active Optical Cable 20M OM3 Optical Transceiver Module Cable

Get Best Price
Good price 50/125um Multi-mode Active Optical Cable 20 Meter for Operating Case Temperature Range 0 to 70°C online

50/125um Multi-mode Active Optical Cable 20 Meter for Operating Case Temperature Range 0 to 70°C

Get Best Price
Good price 4-Channel PIN Photo Detector Array Active Fibre Cable for 40GBE and 10GBE Interconnects online

4-Channel PIN Photo Detector Array Active Fibre Cable for 40GBE and 10GBE Interconnects

Get Best Price
Contact Us
+86 17677464632
sales02@hilinktech.com
86-755-8317-6243
Contact Now
Product Description

200G QSFP56 SR4 to 2xQSFP56 SR2 850nm 5M Active Optical Cable AOC Cable





Features

Active optical cable with breakout from QSFP56 200G to two QSFP56 100G
Up to 53.125Gbps data rate per channel PAM4 modulation
Integrated 850nm VCSEL array and PD array
DDM function implemented
Hot-pluggable
Low power dissipation, <4W on 200G end, <3W on 100G end
Commercial operating case temperature range: 0℃ to 70 ℃
Compliant with ROHS2.0


Applications

Data centers and Cloud Networks
200G InfiniBand HDR systems


Standards Compliance

IEEE 802.3cd
InfiniBand 4xHDR
SFF 8679
CMIS4.0 or SFF8636

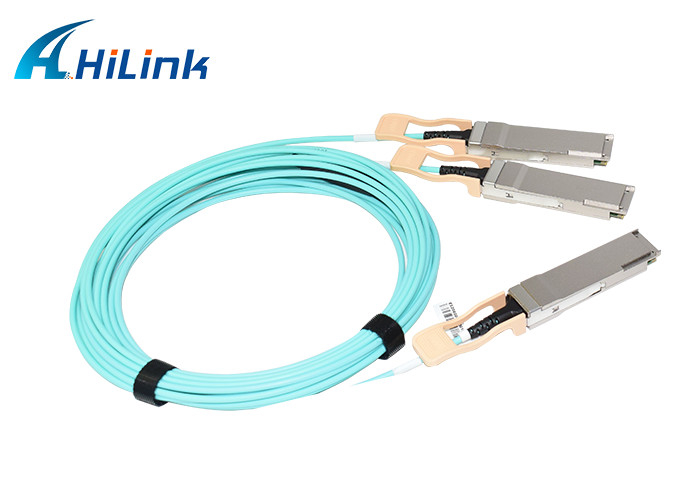

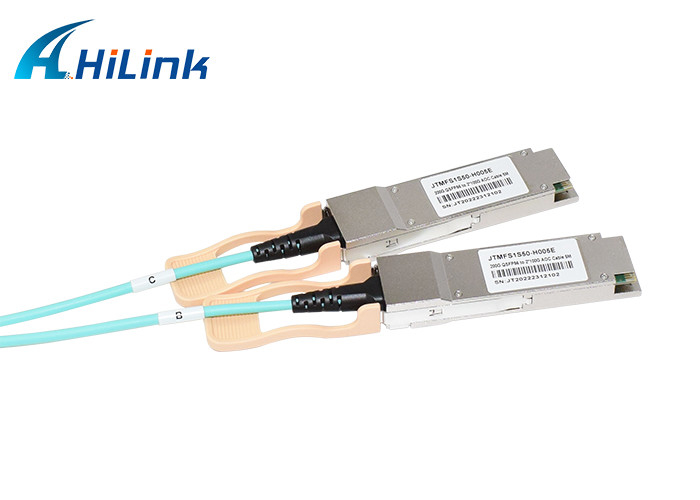

Product Picture Show

5m Active Optical Cable AOC Cable 200G QSFP56 SR4 To 2xQSFP56 SR2 850nm 05m Active Optical Cable AOC Cable 200G QSFP56 SR4 To 2xQSFP56 SR2 850nm 1



Package outline

5m Active Optical Cable AOC Cable 200G QSFP56 SR4 To 2xQSFP56 SR2 850nm 2



Order information

Part Number Description
CAD2XF01CS1-XX 200G QSFP56 SR4 to 2xQSFP56 SR2 AOC 1M
CAD2XF03CS1-XX 200G QSFP56 SR4 to 2xQSFP56 SR2 AOC 3M
CAD2XF05CS1-XX 200G QSFP56 SR4 to 2xQSFP56 SR2 AOC 5M
CAD2XF07CS1-XX 200G QSFP56 SR4 to 2xQSFP56 SR2 AOC 7M
CAD2XF10CS1-XX 200G QSFP56 SR4 to 2xQSFP56 SR2 AOC 10M
CAD2XF15CS1-XX 200G QSFP56 SR4 to 2xQSFP56 SR2 AOC 15M
CAD2XF20CS1-XX 200G QSFP56 SR4 to 2xQSFP56 SR2 AOC 20M
CAD2XF30CS1-XX 200G QSFP56 SR4 to 2xQSFP56 SR2 AOC 30M
CAD2XF40CS1-XX 200G QSFP56 SR4 to 2xQSFP56 SR2 AOC 40M
CAD2XF50CS1-XX 200G QSFP56 SR4 to 2xQSFP56 SR2 AOC 50M
CAD2XFxxCS1-XX 200G QSFP56 SR4 to 2xQSFP56 SR2 AOC xxM
