Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC RoHS
Model Number:
HL-100G-CFP-ER4-40

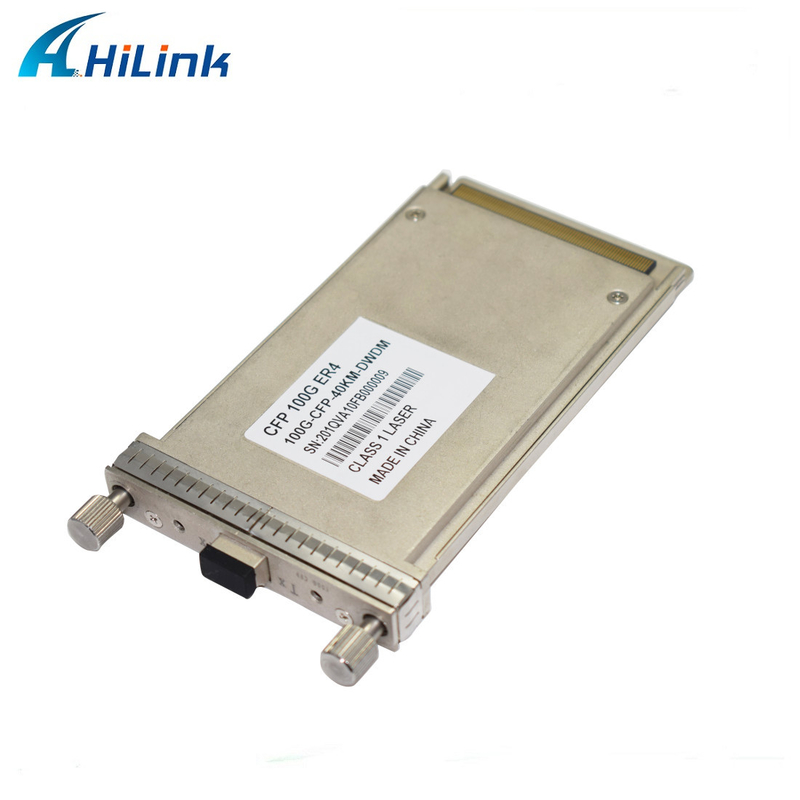

Ethernet Rate 100G and OTU4 CFP 40KM ER4 LAN-WDM SMF Dual LC Optical Transceiver
HiLink's CFP 100G ER4 transceivers are designed for use in 100 Gigabit Ethernet links over 40km single mode fiber, and it compliant to the CFP MSA and IEEE 802.3ba 100GBASE-ER4. Digital diagnostics are available via MDIO as specified in the CFP MSA Management Interface Specification.
The transceiver's designs are optimized for high performance and cost efficiency to provide customers the best solutions for Datacom and Telecom applications.The transceiver is RoHS-6 compliant and lead-free per Directive 2002/95/EC.
| Item No. | HL-100G-CFP-ER4-40 | Vendor Name | Hilink |
| Form Type | CFP | Max Data Rate | 4*27.95Gbps |
| Wavelength | 1296,1300,1305,1309 nm | Max Cable Distance | 40KM |
| Interface | LC Duplex | DOM Support | Yes |
| Cable Type | SMF | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
Features
Lane bit rate 25.78 Gb/s 100GE, 27.95Gb/s OTU4
Up to 40km transmission on SMF
LAN WDM EML laser and PIN receiver with SOA
High speed I/O electrical interface (CAUI-10)
MDIO interface with integrated Digital Diagnostic monitoring
CFP MSA package with duplex LC connector
Single +3.3V power supply;
Maximum power consumption 16W;
Operating case temperature: -5 to +70 °C;
Complies with IEEE802.3ba and ITU-T G.959
RoHS compliant
Applications
Compatibility
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Details Photos
Hilink Advantage
1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
