Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC RoHS
Model Number:
HL-SFP28-25G-AOC

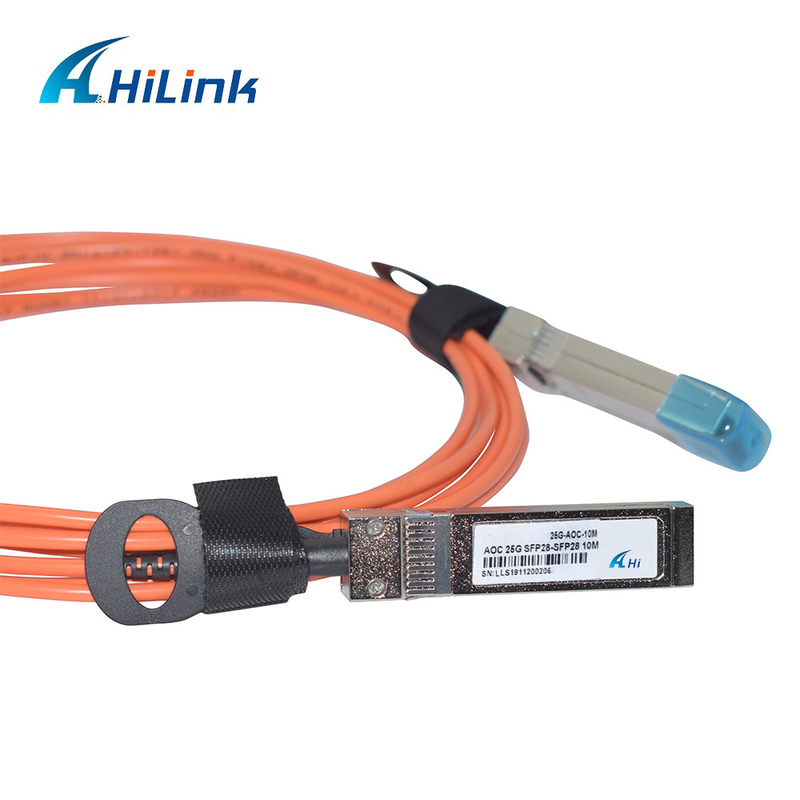

25G SFP28 Active optical cable DDM Network Cabling Direct-attach AOC 1~100M
Hilink's 25G active optical cable can provide an ideal alternative solution for high-speed cable and short-distance SFP28 optical module, it is widely used in high-speed, high-density and low-power data center networks. 25G active optical cable is composed of optical fiber transceivers at both ends and OM3 or OM4 multimode optical fibers of different lengths, which ensure the stability of data transmission and the flexibility of application.
Features
850nm VCSEL array&PIN photo detector array
Management Interface and digital diagnostic
Low power consumption
Support serial ID function through EEPROM
3.3V power supply voltage
Power consumption less than 1W
Operating case temperature 0°C to +70°C
| Parameter | Symbol | Unit | Min | Typ | Max | Notes |
| Optical transmitter Characteristics | ||||||
| Data Rate | DR | Gbps |
8.5 |
25.78125 |
- | |
| Center Wavelength Range | λc | nm | 820 | 850 | 880 | |
|
Average Launch power Tx_off |
Poff | dBm | - | - | -45 | |
| Launch Optical Power | P0 | dBm | -6.0 | 2.4 | 1 | |
| Extinction Ratio | ER | dB | 2 | - | - | |
| Spectral Width(RMS) | RMS | nm | - | 0.65 | ||
| Optical Receiver Characteristics | ||||||
| Data Rate | DR | Gbps | 8.5 |
25.78125 |
- | |
| Bit Error Rate | BER | dBm | - | - | E-12 | |
|
Damage threshold |
DT |
dBm | 3.4 | - | - | |
| Overload Input Optical Power | PIN | dBm | 2.4 | - | - | 2 |
| Center Wavelength Range | λc | nm | 820 | - | 880 | |
| Receiver Sensitivity in Average Power | Sen | dBm | - | - | -5.2 | 3 |
| Los Assert | LosA | dBm | -30 | - | - | |
| Los De-Assert | LosD | dBm | - | - | -13 | |
| Los Hysteresis | LosH | dB | 0.5 | - | - | |
Note: 1. Coupled into 50/125 MMF.
2. Measured with PRBS 231-1 test pattern @25.78125Gbps.BER=E-12
3. BER=1x10-12;PRBS231-1@25.78125Gbps
Applications

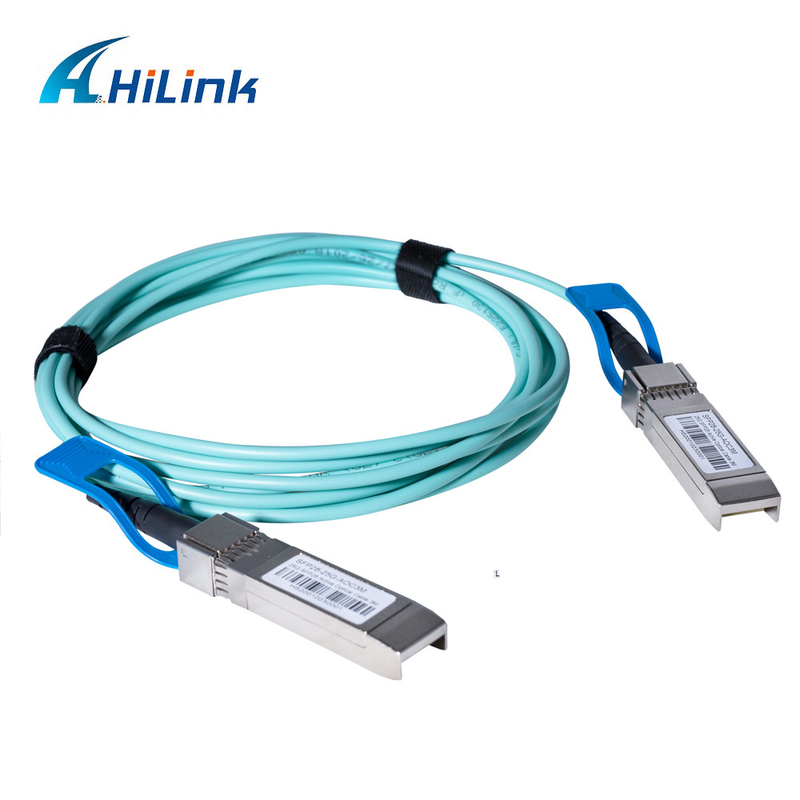

Details Images
Hilink Advantages
1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
