Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC RoHS
Model Number:
HL-SFP-10G-AOC

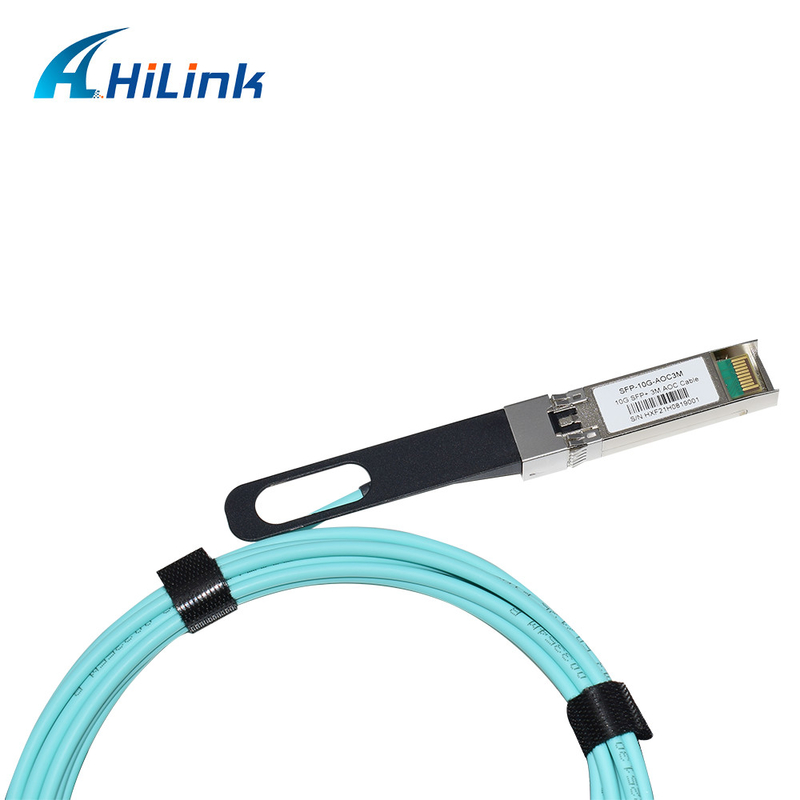

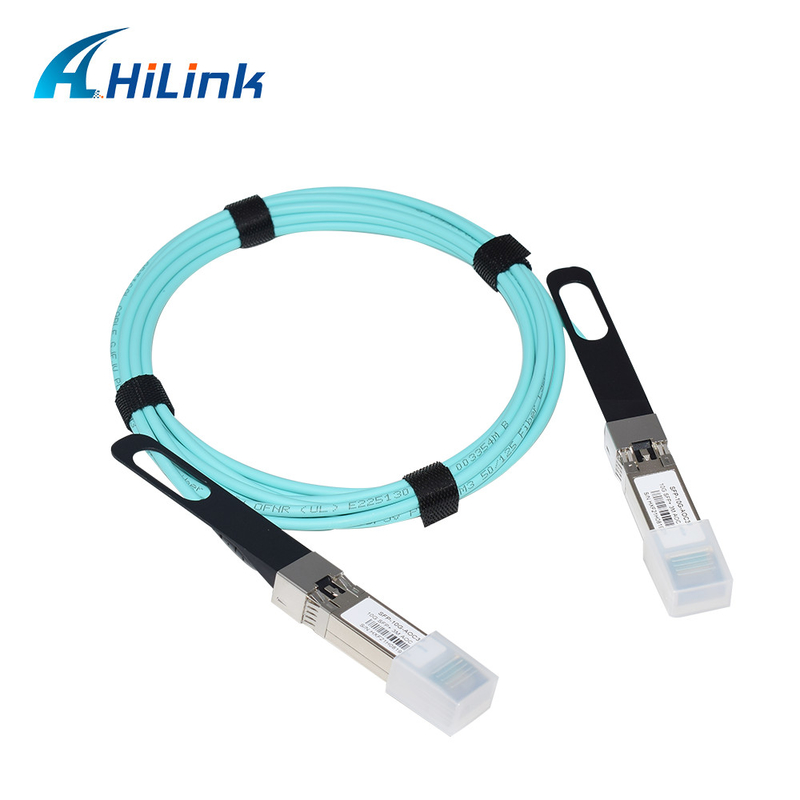

SFP+ to SFP+ 10G OM3 Active Optical Cable Direct-attach AOC Cables 1~100M
General Description
Hilink's 10G SFP+ AOC active optical direct-attach cables are designed for high speed, high density and low power consumption for today’s data center networking applications. They are suitable for very short distances and offer a very cost-effective way to establish a 10-gigabit link between SFP+ ports of switches within racks and across adjacent racks.
The 10G SFP+ AOC cables are composed of SFP+ optical transceivers in both ends and OM3 multimode fiber cable in different cable length from 1 to 100 meters. This integrated optical transceiver removes the complicated optical fiber interface and brings friendly and intuitive electrical-to-electrical interface to users.
Features
| Parameter | Symbol | Unit | Min | Typ | Max | Notes |
| Optical transmitter Characteristics | ||||||
| Data Rate | DR | Gbps | 9.953 | 10.3125 | 11.3 | |
| Center Wavelength Range | λc | nm | 820 | 850 | 880 | |
| Laser Off Power | Poff | dBm | - | - | -45 | |
| Launch Optical Power | P0 | dBm | -6.0 | 1 | ||
| Extinction Ratio | ER | dB | 3 | - | - | |
| Spectral Width(RMS) | RMS | nm | - | 0.45 | ||
| Optical Receiver Characteristics | ||||||
| Data Rate | DR | Gbps | 9.953 | 10.3125 | 11.3 | |
| Bit Error Rate | BER | dBm | - | - | E-12 | 2 |
| Overload Input Optical | PIN | dBm | 2.4 | - | - | 2 |
| Power | ||||||
| Center Wavelength Range | λc | nm | 820 | - | 880 | |
| Receiver Sensitivity in Average Power | Sen | dBm | - | - | -9.9 | |
| Los Assert | LosA | dBm | -26 | - | - | |
| Los De-Assert | LosD | dBm | - | - | -12 | |
| Los Hysteresis | LosH | dB | 0.5 | - | - | |
Note: 1. Coupled into 50/125 MMF.
2. Measured with PRBS 231-1 test pattern @10.3125Gbps.BER=10E-12
Applications
Details Images
Hilink Advantages
1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
