Place of Origin:
Guangdong, China
Brand Name:
Hilink
Certification:
CE RoHs
Model Number:
HL-QSFP-40G-LR4

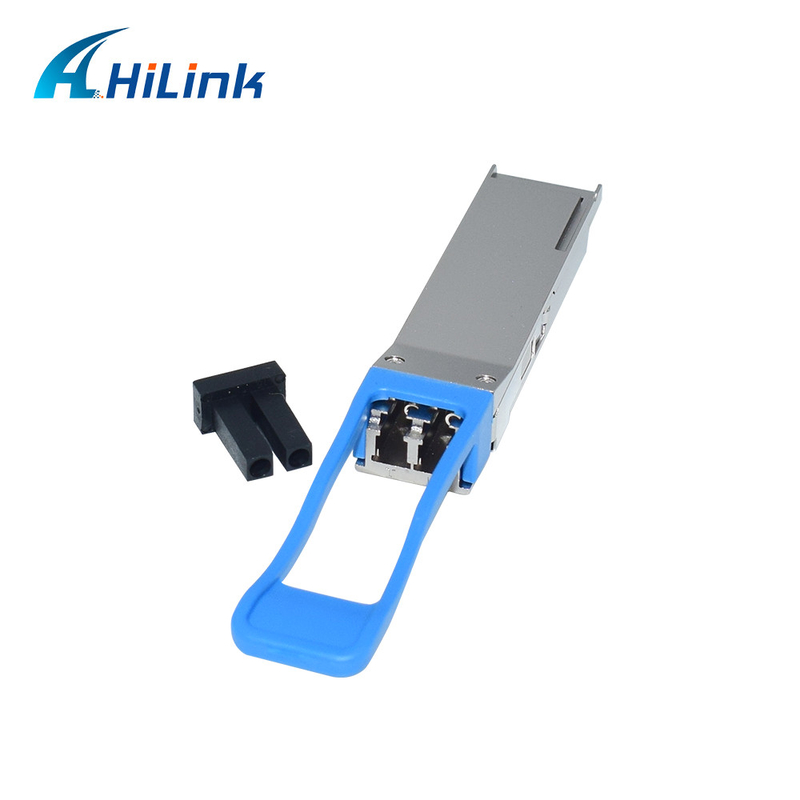

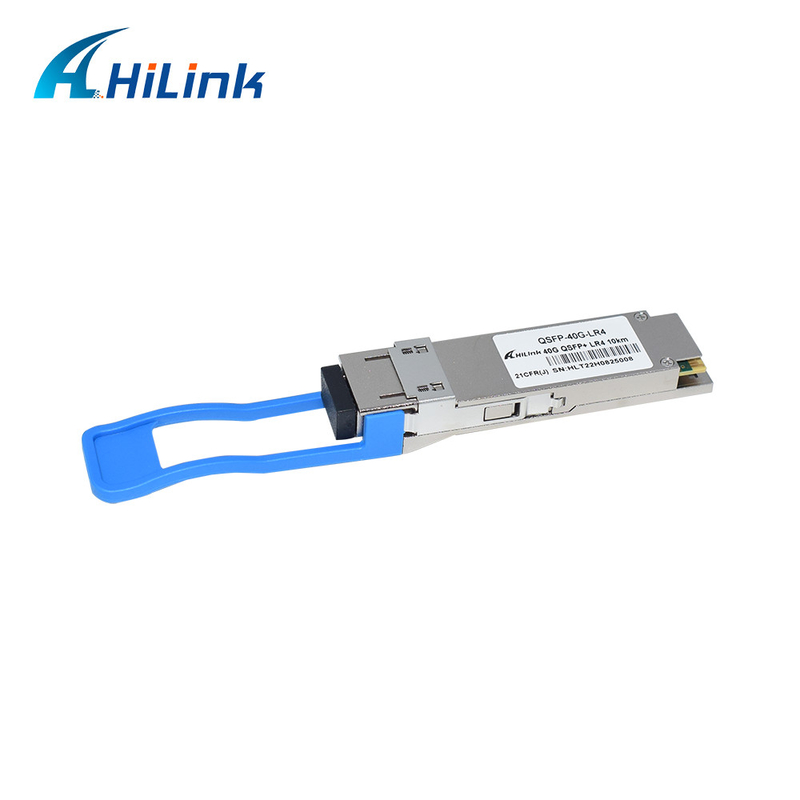

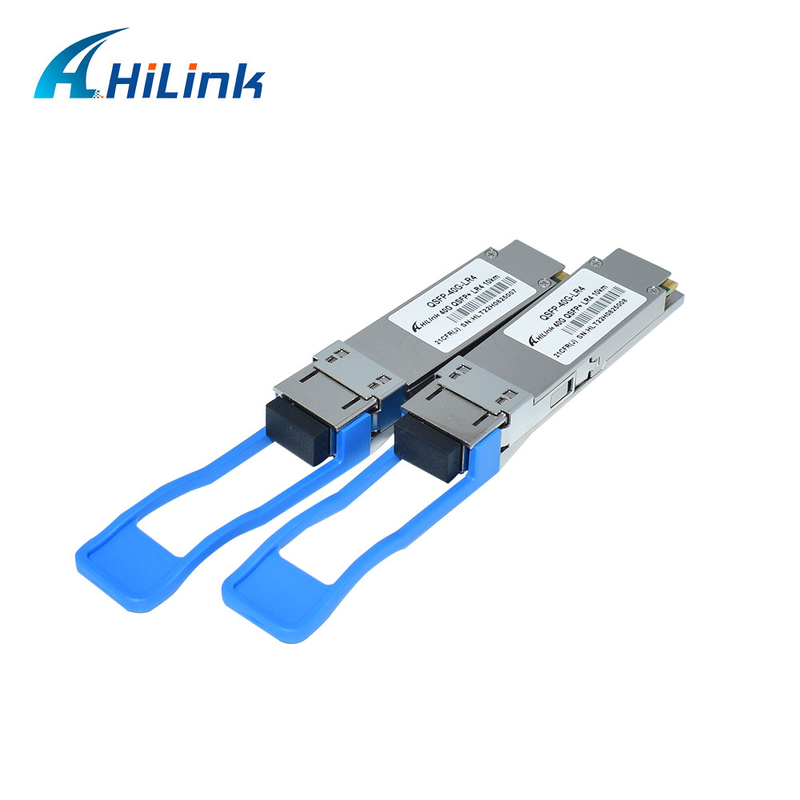

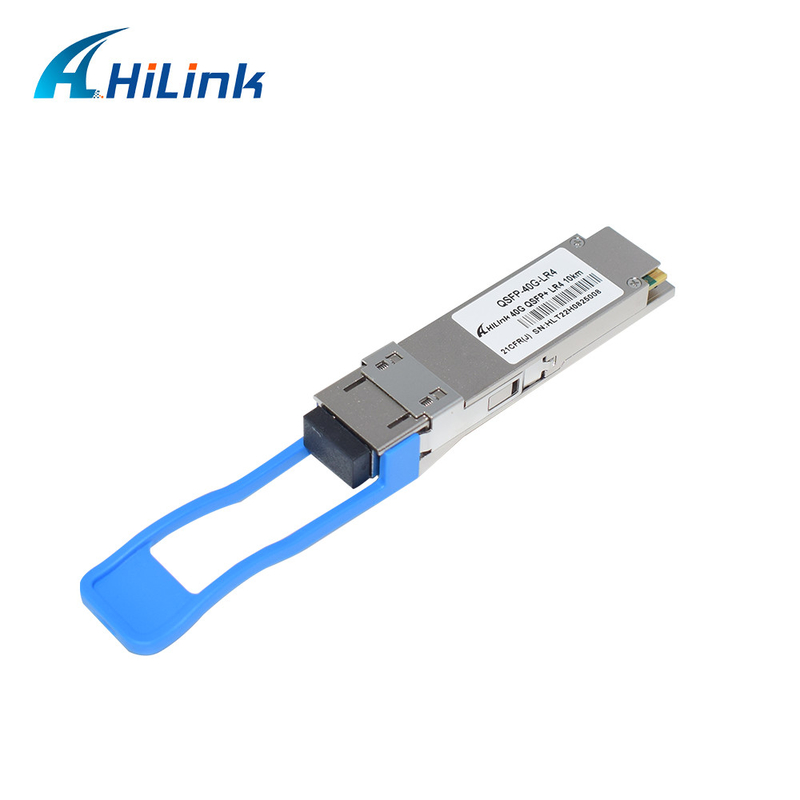

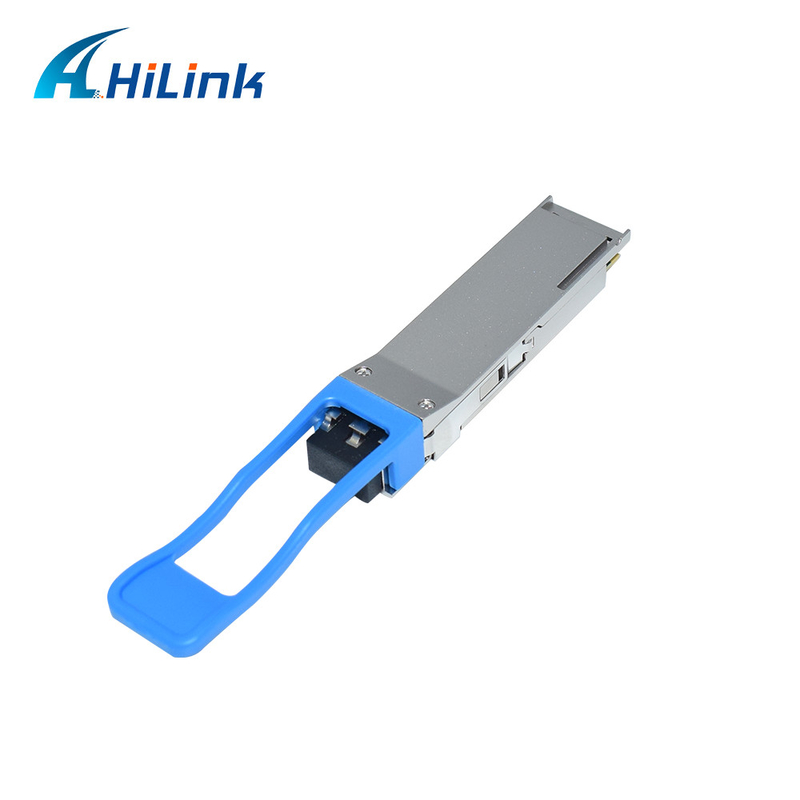

40G Base QSFP 40G LR4 1310nm 10km Compatible Transceiver Module Optical
Features:
4 CWDM channels are 1271, 1291,1311 and 1331 nm
Single +3.3V power supply
QSFP+ MSA compliant
Up to 10km transmission
Operating case temperature: 0~70C
Maximum 3.5W operation power
RoHS compliant
Compliant with IEEE802.3ba
Compliant with QSFP+ MSA: SFF-8436
Hilink 40G QSFP LR4 optical transceiver integrates the transmit and receive path onto one module. Four electric-absorption modulated lasers (DFBs) with 1271, 1291,1311 and 1331 nm center wavelengths, which multiplexed/demutiplexed into a single-mode fiber through an industry-standard LC connector.
Applications:
40G Ethernet
Infiniband 4X SDR DDR QDR
40G Telecom connections
