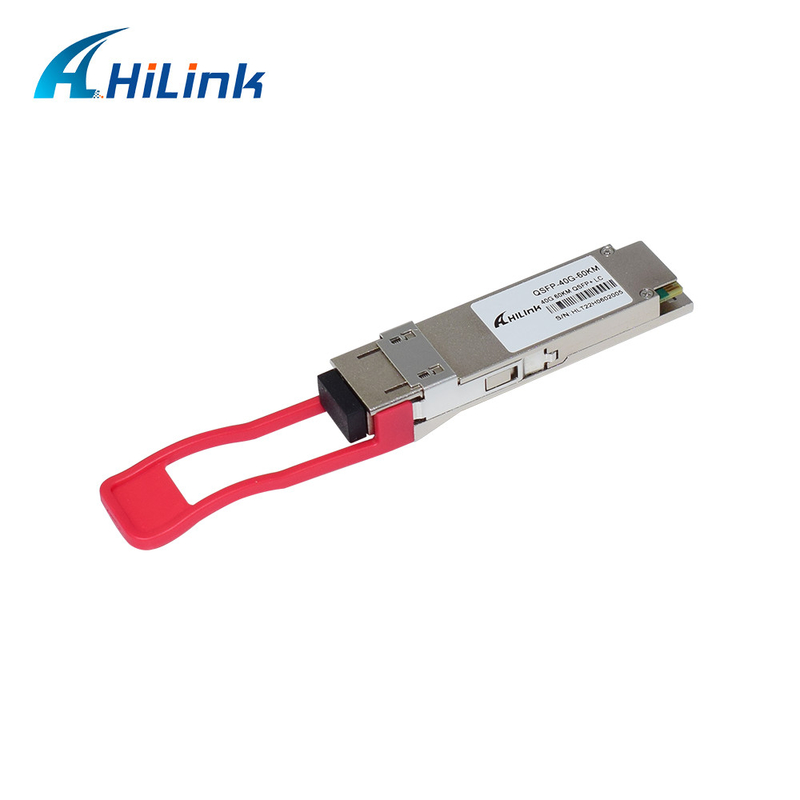

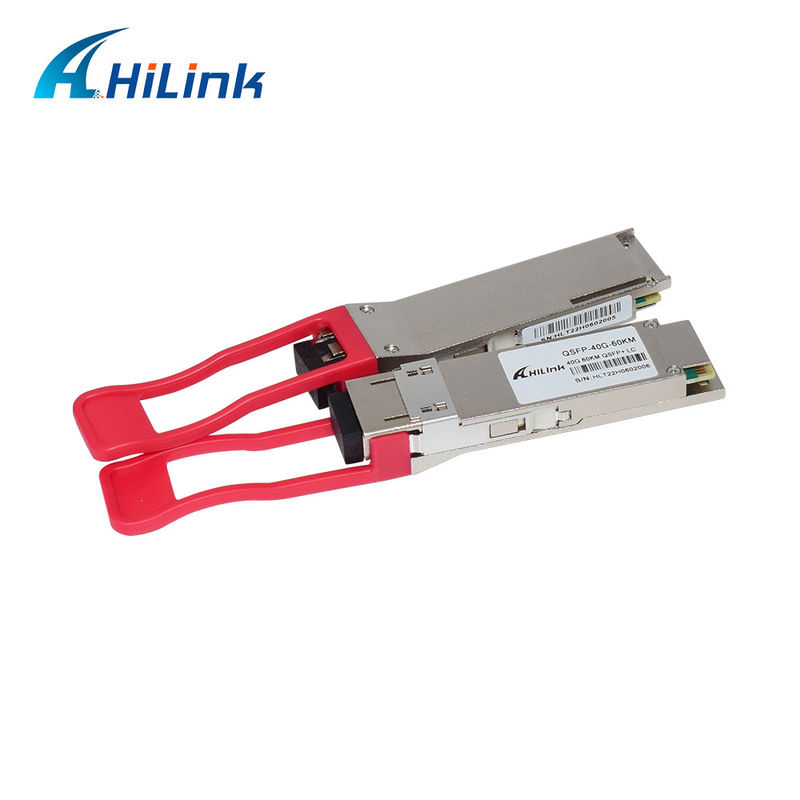

QSFP+ 40G ZR4 Lite 60KM Dual LC Infiniband QDR/DDR Optical Transceiver
Hilink 40G QSFP+ 60km optical transceiver integrates the transmit and receive path onto one module. Four electric-absorption modulated lasers (DFBs) with 1270~1330nm center wavelengths, which multiplexed/demutiplexed into a single-mode fiber through an industry-standard LC connector. Each data steam is recovered by a APD photodetector and transimpedance amplifier, retimed, and passed on to an output driver.
| Item No. | HL-QSFP-ZR4-60 | Vendor Name | Hilink |
| Form Type | QSFP+ | Max Data Rate | 40Gbps |
| Wavelength | 1270~1330nm | Max Cable Distance | 60KM |
| Interface | LC Duplex | Optical Components | DFBs + APD |
| Cable Type | SMF | DOM Support | Yes |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
Features
4 CWDM channels are 1271, 1291,1311 and 1331 nm
Single +3.3V power supply
QSFP+ MSA compliant
Up to 60km transmission
Operating case temperature: 0~70C
Maximum 3.5W operation power
RoHS compliant
Compliant with IEEE802.3ba
Compliant with QSFP+ MSA: SFF-8436
Specificatioins
| Parameter | Symbol | Min | Typ | Max | Unit | Note |
| Data Rate per Channel | - | 10.3125 | 11.2 | Gbps | ||
| Power Consumption | - | 2.5 | 5 | W | ||
| Supply Current | Icc | 0.75 | 1.3 | A | ||
| Control I/O Voltage-High | VIH | 2.0 | Vcc | V | ||
| Control I/O Voltage-Low | VIL | 0 | 0.7 | V | ||
| Inter-Channel Skew | TSK | 150 | Ps | |||
| RESETL Duration | 10 | Us | ||||
| RESETL De-assert time | 100 | ms | ||||
| Power On Time | 100 | ms | ||||
| Transmitter | ||||||
| Single Ended Output Voltage Tolerance | 0.3 | 4 | V | 1 | ||
| Common mode Voltage Tolerance | 15 | mV | ||||
| Transmit Input Diff Voltage | VI | 150 | 1200 | mV | ||
| Transmit Input Diff Impedance | ZIN | 85 | 100 | 115 | ||
| Data Dependent Input Jitter | DDJ | 0.3 | UI | |||
| Receiver | ||||||
| Single Ended Output Voltage Tolerance | 0.3 | 4 | V | |||
| Rx Output Diff Voltage | Vo | 370 | 600 | 950 | mV | |
| Rx Output Rise and Fall Voltage | Tr/Tf | 35 | ps | 1 | ||
| Total Jitter | TJ | 0.3 | UI | |||
Note:
1. 20～80%
Applications
Rack to rack
Data centers Switches and Routers
Metro networks
Switches and Routers
40G BASE-ZR4 Lite
