Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC RoHS
Model Number:
HL-QSFP28-SR4
QSFP28 100G SR4 MMF 850nm 100M OM4 MPO Connector Optical Transceivers
Hilink 100G QSFP28 SR4 optical transceiver is up to 100m OM4 MMF Distance.
Item |
Description |
|---|---|
|
Transceiver form factor |
QSFP28 |
|
Transmission speed |
100GE |
|
Center wavelength (nm) |
850 |
|
Standards compliance |
100GBASE-SR4 |
|
Connector type |
MPO/PC (8-strand or 12-strand, type B, female connector) |
|
Applicable cable and maximum transmission distance |
Multimode fiber (OM4): 0.1 km |
|
Transmit power (dBm) |
-7.6 to +2.4 |
|
Maximum receiver sensitivity(dBm) |
-5.4 |
|
Overload power (dBm) |
2.4 |
|
Extinction ratio (dB) |
3.0 |
|
Operating temperature |
0°C to 70°C (32°F to 158°F) |
Features
MTP/MPO optical connector
Single +3.3V power supply
Hot-pluggable QSFP28 MSA form factor
Up to 100m OM4 MMF Distance
4x28G Electrical Serial Interface (CEI-28G-VSR)
AC coupling of CML signals
Low power dissipation(Max:3.5W)
Built in digital diagnostic function
Operating case temperature range:0℃ to 70℃
Compliant with 100GBASE-SR4
I2C Communication Interface
Applications
100GBASE-SR4
Infiniband QDR/DDR/SDR
100G Datacom connections
Compatibility
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

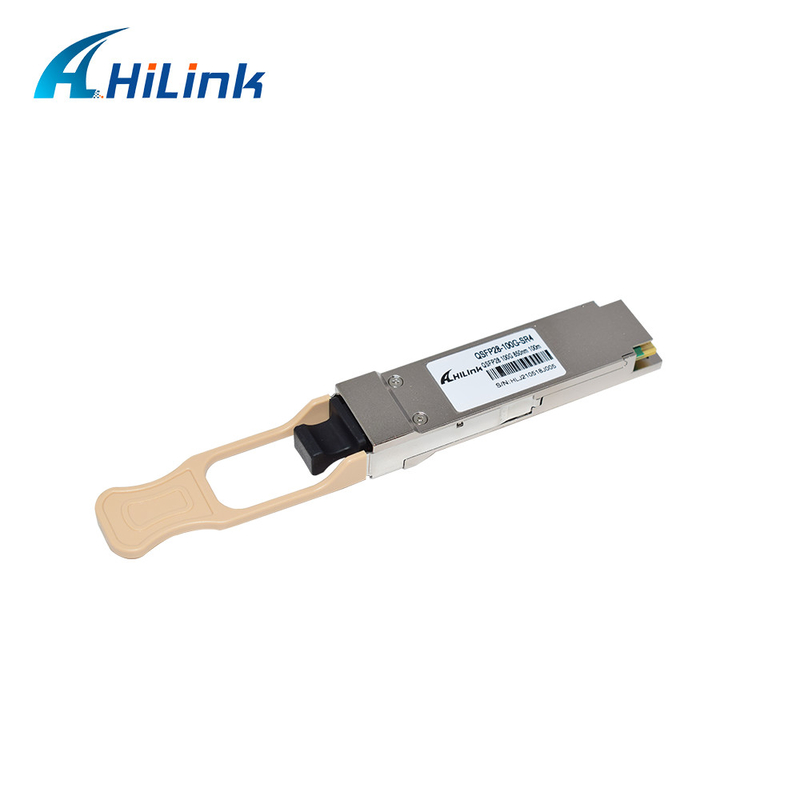

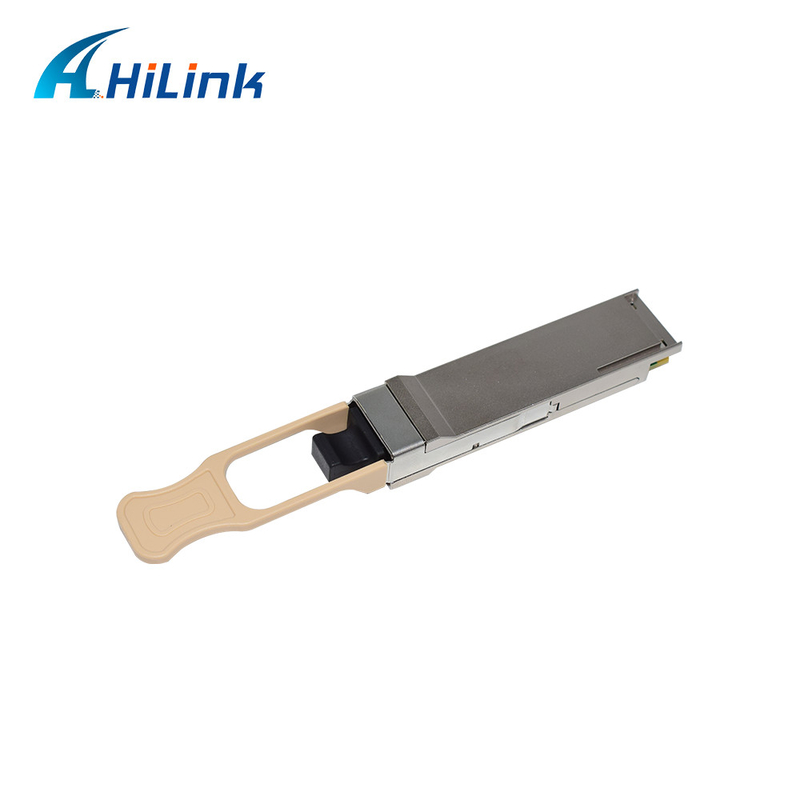

Details Photos
Hilink Advantage
1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products passed CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
