Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-QSFP-LR4

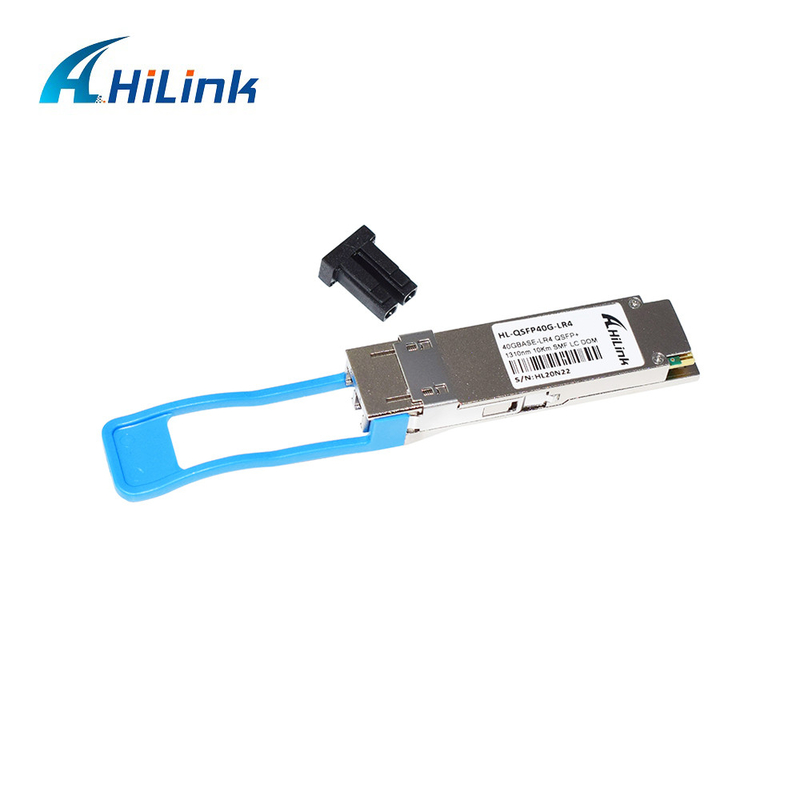

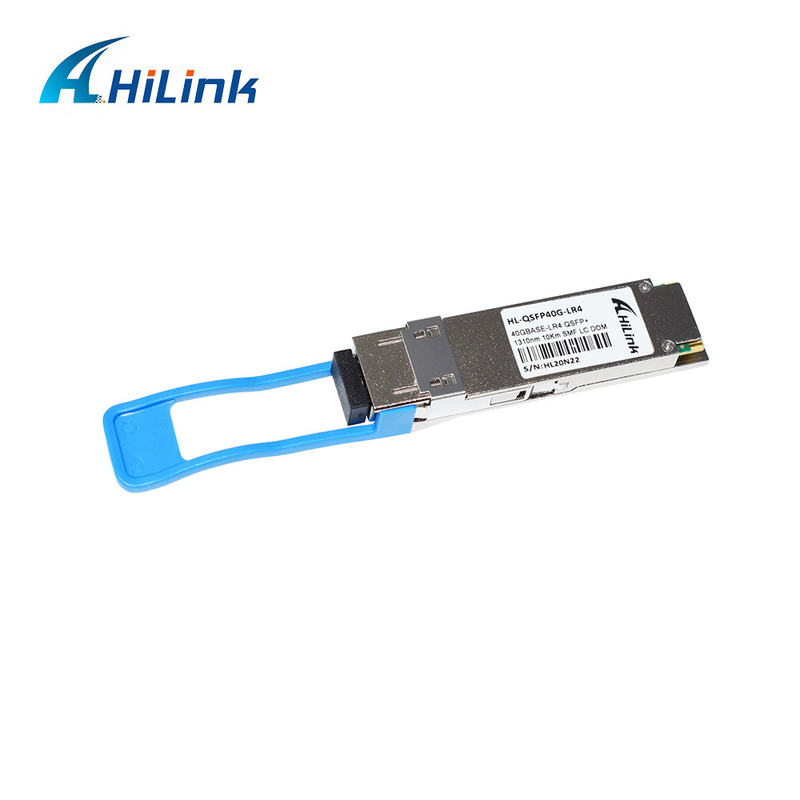

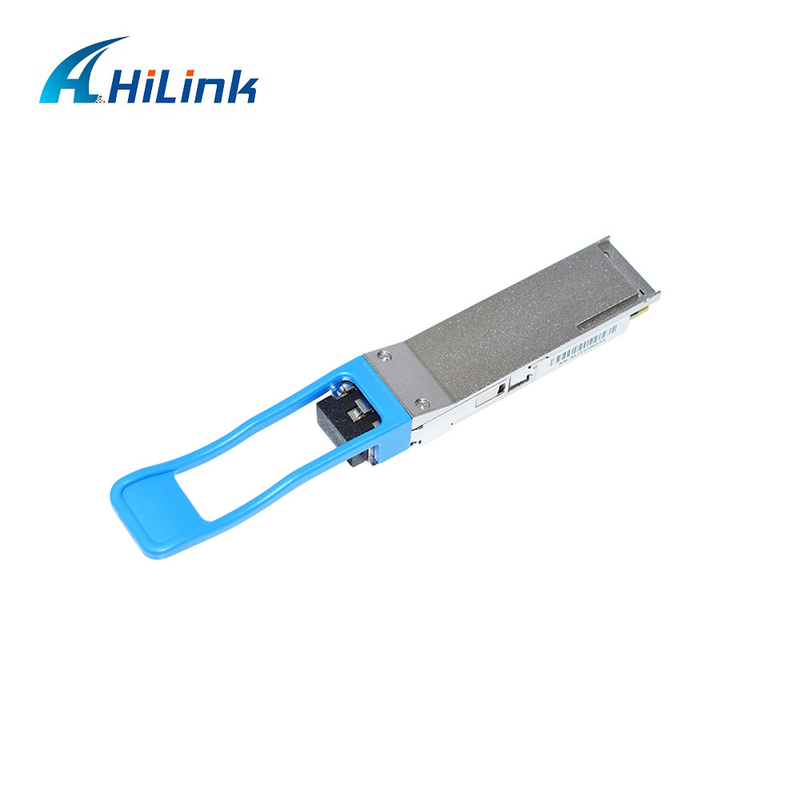

40G QSFP+ LR4 4Channels DFB SMF 10KM LC Connector Ethernet Module
Hilink HL-QSFP-40G-LR4 optical transceiver integrates the transmit and receive path onto one module. Four electric-absorption modulated lasers (DFBs) with 1271, 1291,1311 and 1331 nm center wavelengths, which multiplexed/demultiplexed into a single-mode fiber through an industry-standard LC connector.
Features
4 CWDM channels are 1271, 1291,1311 and 1331 nm
Single +3.3V power supply
QSFP+ MSA compliant
Up to 10km transmission
Operating case temperature: 0~70C
Maximum 3.5W operation power
RoHS compliant
Compliant with IEEE802.3ba
Compliant with QSFP+ MSA: SFF-8436
Specifications
| Item No. | HL-QSFP-LR4 | Vendor Name | Hilink |
| Form Type | QSFP+ | Max Data Rate | 40Gbps |
| Wavelength | 1271,1291,1311,1331nm | Max Cable Distance | 10KM |
| Interface | LC Duplex | Optical Components | DFB |
| Cable Type | SMF | DOM Support | Yes |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Applications
Details Photos
Hilink Advantages
1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
