QSFP56 DAC Direct Attach Copper Twinax Cable 200G 3M

200G QSFP56 to QSFP56 DAC Cable Direct Attach Twinax Cable 3M (10ft)

General Description

Hilink's HL-QS56-200G-DAC 200G QSFP56 Passive Cables assembly feature eight differential copper pairs,providing four data transmission channels at speeds up to 56Gbps(PAM4) per channel,and meets 200G Ethernet and InfiniBand Enhanced Data Rate(EDR) requirements

Features

• Compatible with IEEE 802.3bj and IEEE 802.3cd

• Supports aggregate data rates of 200Gbps(PAM4)

• Cable length available from 0.5M to 3M

• 26AWG through 30AWG cable

• Straight and break out assembly configurations available

• Customized cable braid termination limits EMI radiation

• Customizable EEPROM mapping for cable signature

Applications

• Switches,servers and routers

• Data Center networks

• Storage area networks

• High performance computing

• Telecommunication and wireless infrastructure

• Medical diagnostics and networking

• Test and measurement equipment

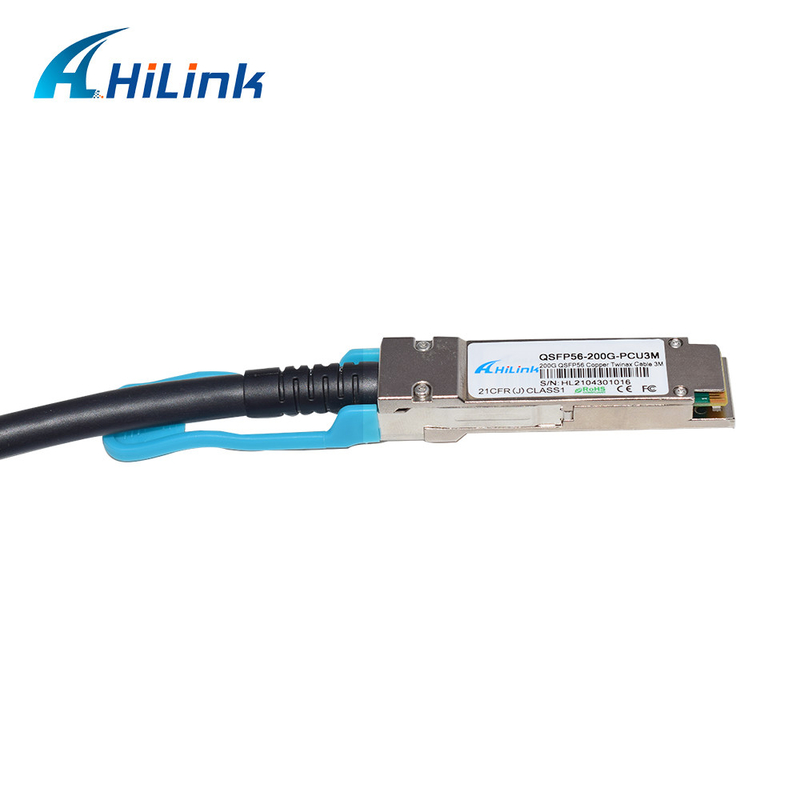

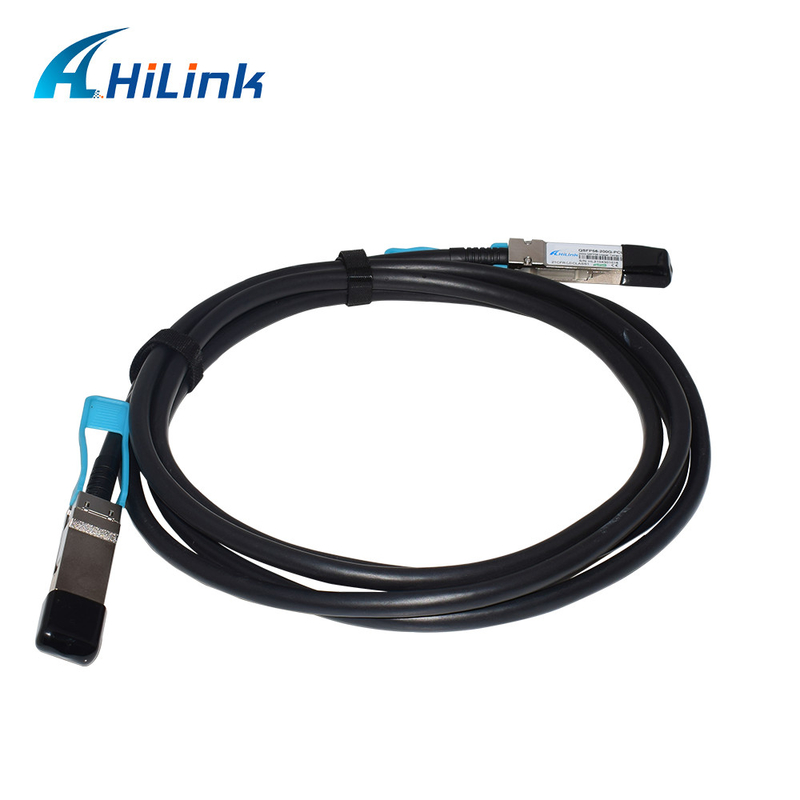

Details Images

Hilink Advantages

1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
