Place of Origin:
China
Brand Name:
HILINK
Certification:
CE FCC RoHS
Model Number:
HL-DAC-40G-CU-3m
QSFP to QSFP Copper Cable QSFP+ 40G Passive Direct Attach Cable 3M DAC
General Description
The Quad Small Form-factor Pluggable Plus (hereafter referred to as QSFP+) solution is designed for high-density applications. The hot-pluggable transceiver integrates 4 transmitting and 4 receiving channels. These QSFP+ cable assemblies can replace four standard SFP+ cable assemblies. This results in higher port density, more cost effectiveness and reduce power budget as compared to standard SFP+ cable assemblies. Hilink QSFP+ Direct Attach Cables are compliant with the SFF-8436 specifications. Various choices of wire gauge are available from 30 to 24 AWG with various choices of cable length (up to 7m).
| Length ( M ) | Cable ( AWG ) |
| 1 | 30 |
| 2 | 30/26 |
| 3 | 30/26 |
| 4 | 26 |
| 5 | 26/24 |
| 6 | 24 |
| 7 | 24 |
Features
• Hybrid cable conforms to the Small Form Factor SFF-8436 and SFF-8431
• Support for multi-gigabit data rates :1.0 Gbps - 10.3125 Gbps (per channel)
• Maximum aggregate data rate: 41.25 Gbps (4 x 10.3125Gbit/s)
• Hybrid cable link length up to 5m (passive limiting)
• High-Density QSFP 38-PIN and QSFP 38-PIN Connector
• Power Supply :+3.3V
• Low power consumption: 0.02 W (typ.)
• Temperature Range: 0~ 70 °C
Benefits
• Cost-effective copper solution
• Lowest total system power solution
• Lowest total system EMI solution
• Optimized design for Signal Integrity
Applications
• 10G/40Gigabit Ethernet
• InfiniBand SDR, DDR, QDR Switches, Routers, and HBAs
• Data Centers
• Fibre Channel
• Networked storage systems
• Computer cluster cross-connect

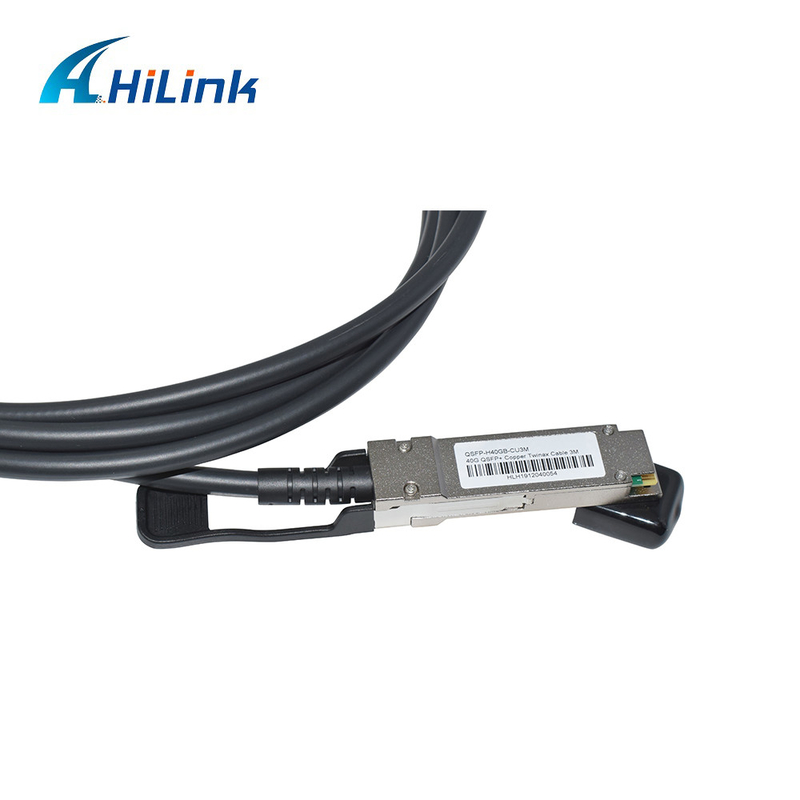

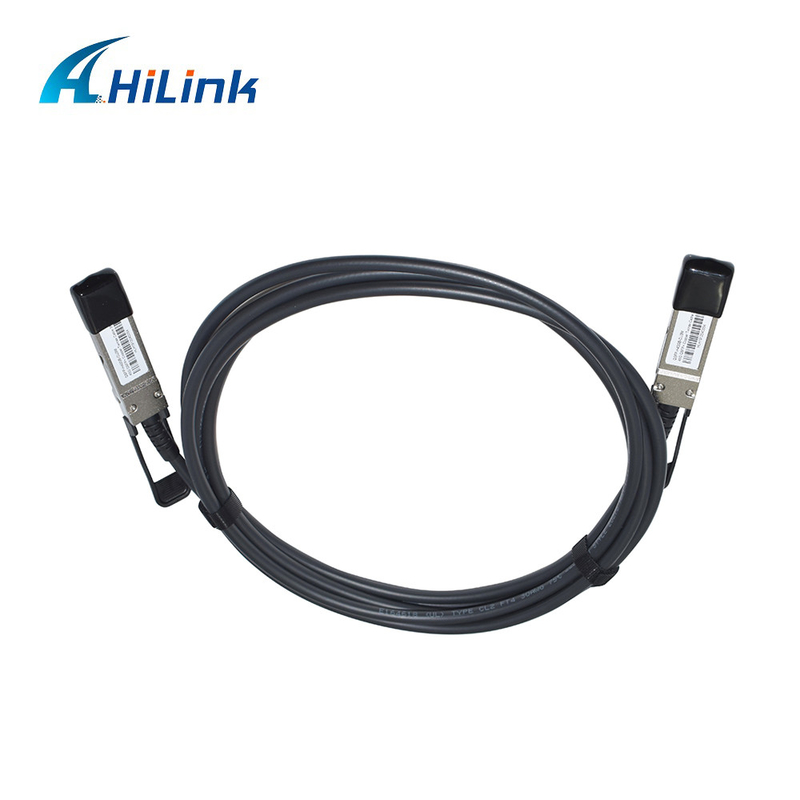

Details Images
Hilink Advantages
1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
