Place of Origin:
Guangdong, China
Brand Name:
Hilink
Certification:
CE Rohs
Model Number:
QSFP-40G-SWDM4 LC SR4
Video

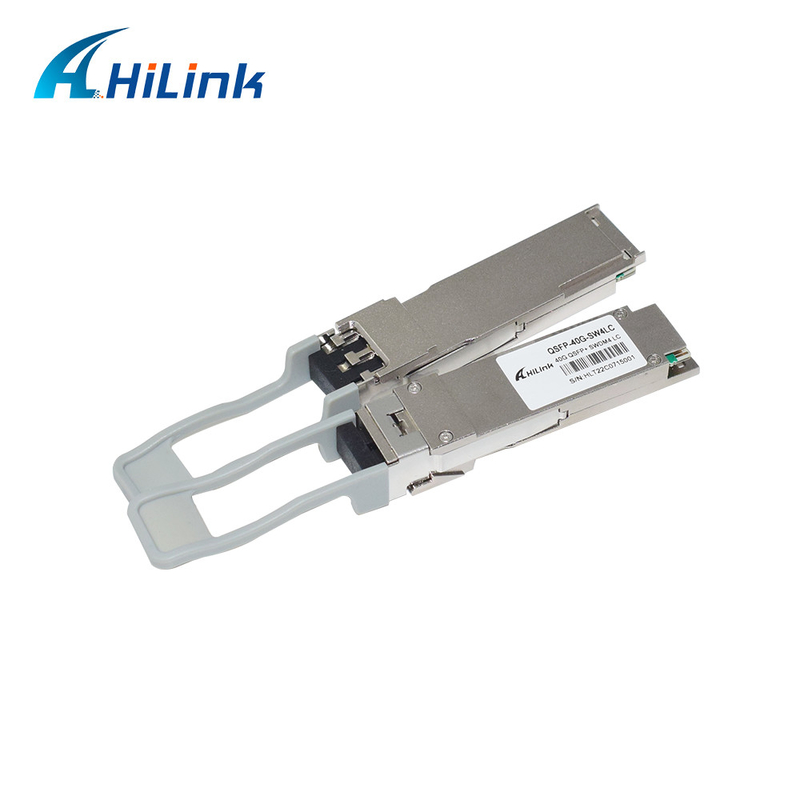

QSFP-40G-SWDM4 LC SR4 40G QSFP+ 850nm 150M LC dual Fiber Transceiver MMF
Hilink 40G QSFP+ SWDM4 transceiver modules are designed for use intransceiver modules are designed for use in 40G Ethernet links over duplex multimode fiber.
Optical Module Four channels/lanes in the 850-940nm region @ 10Gbps to transport the Ethernet signal.
Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA.
| Part Number | Product Description |
| HL-QSFP-SR4 | 850nm, 40G, 150m, 0ºC ~ +70ºC |
| HL-QSFP-CSR4 | 850nm, 40G, 400m, 0ºC ~ +70ºC |
| HL-QSFP-IR4 | 1310nm, 40G, 2KM, 0ºC ~ +70ºC |
| HL-QSFP-LR4 | 1310nm, 40G, 10km, 0ºC ~ +70ºC |
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Units |
| Storage Temp Range | Ts | -40 | +85 | ℃ |
| Supply Voltage | Vcc | -0.5 | 3.6 | V |
| Relative Humidity | RH | 15% | 85% |
Operating Conditions
| Parameter | Symbol | Min | Max | Units |
| Case Temp-Operating | Tcase | 0 | 70 | ℃ |
| Supply Voltage | Vcc | 3.14 | 3.46 | V |
| Power Consumption | P | 3.5 | W | |
| Link Distance on OM3 Fiber | 2 | 240 | M | |
| Link Distance on OM4 Fiber | 2 | 350 | M | |
| Link Distance on OM5 Fiber | 2 | 440 | M |
Features
Package & Shipping
International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.
Our Service
OEM/ODM order is available
We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
FAQ
Q1: Can i have a sample order? what is your MOQ?
A1: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable, We do not have MOQ,1 sample is available.
Q2:How does your company do regarding quality control?
A2: Every single optic individually tested in our test center, and also tested for compatibility on a variety of different brands of network equipment.
Q3:What are the trade terms?
A3:Payment term: Western Union, T/T, Trade Assurance, Paypal, Alipay cash payment. Warranty: 3 years
Q4:Are you trading company or manufacture?
A4:Hilink with more than 14 years in doing fiber optic module, have our own factory, strong technicial support.
