Place of Origin:
Guangdong, China
Brand Name:
Hilink
Certification:
CE Rohs
Model Number:
40G QSFP SR4 BIDI LC
Video

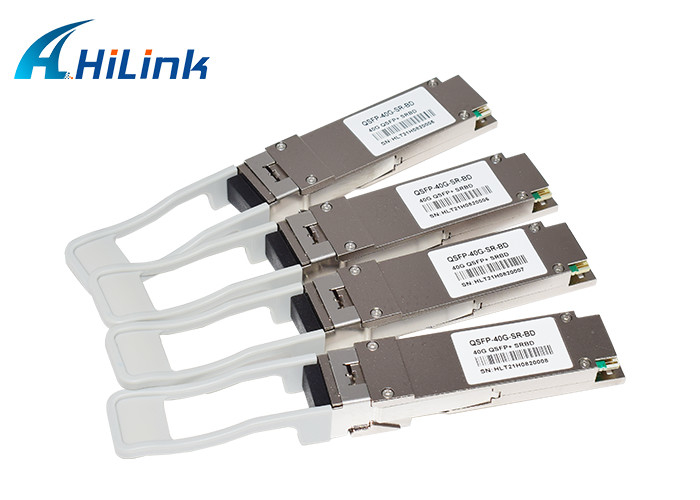

New Trendy WDM Bidirection 40G QSFP SR4 BIDI LC Connector 850nm 100m Transceiver
| Product Name | 40G QSFP SR4 BIDI |
| HS Code | 851779500 |
| Logo | Can be customize |
| operating tempertature | 0 to 70℃ |
| DIstance | 100M |
.
HILINK QSFP BiDi SR4 is a Four-Channel, Pluggable, LC Duplex, Fiber-Optic QSFP+ Transceiver for 40 Gigabit Ethernet Applications.
This Transceiver Module is a high performance module for short-range duplex data communication and interconnect applications.
It internally multiplexes an XLPPI 4x10G interface into two 20Gb/s electrical channels, transmitting and receiving each optically over one simplex LC fiber using bi-directional optics.
This Fiber Optic Module in an aggregate bandwidth of 40Gbps into a duplex LC cable.
Allows reuse of the installed LC duplex cabling infrastructure for 40GbE application.
Link distances up to 100 m using OM3 and 150m using OM4 optical fiber are supported.
Features
Compliant to QSFP+ SFF-8436 Specification
Aggregate bandwidth of > 40Gbps
Operates at 10.3125 Gbps per electrical channel with 64b/66b encoded data
QSFP MSA compliant
Capable of over 100m transmission on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF
Single +3.3V power supply operating
Without digital diagnostic functions
Temperature range 0°C to 70°C
Datacom/Telecom switch & router connections
Data aggregation and backplane applications
Package & Shipping
International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.
Our Service
OEM/ODM order is available
We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
Advantage
Hilink, which a leading supplier of Fiber Optic Module and solution , as well as cooperation with many different country all over the world.
Offer 3 years warranty, competitive price.
