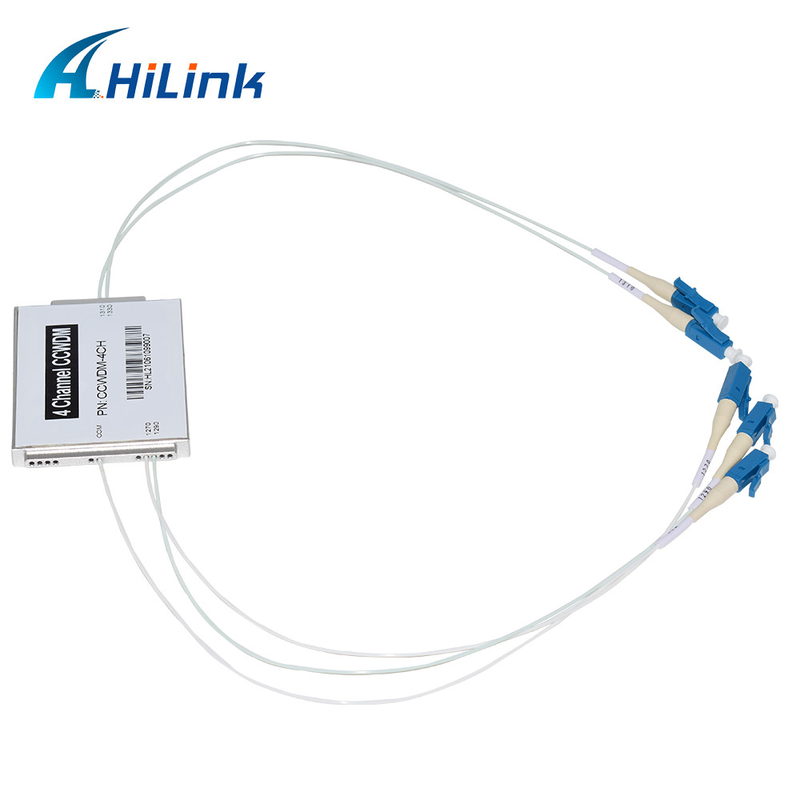

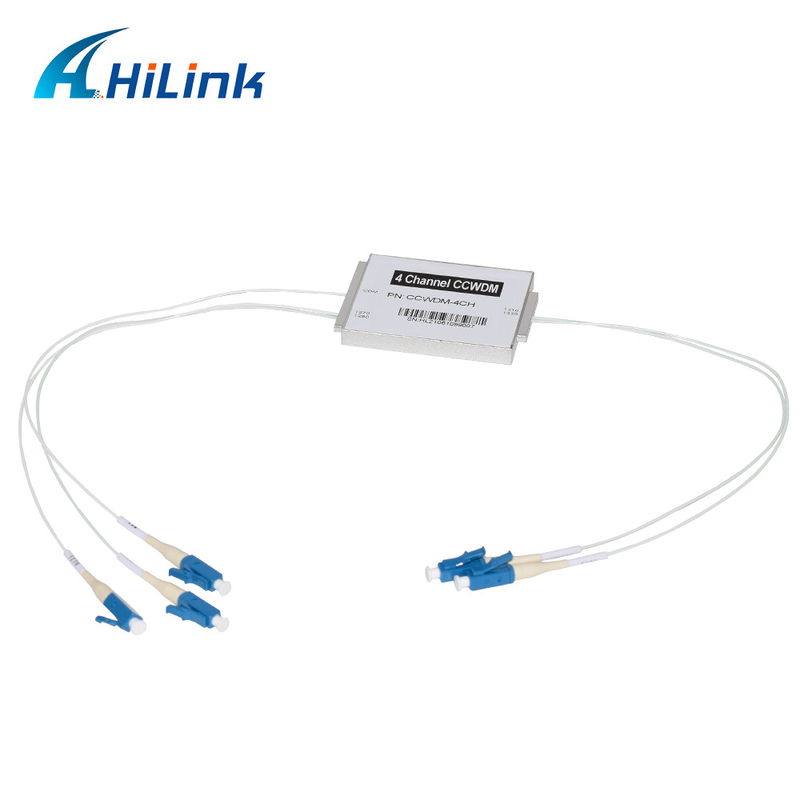

Compact CWDM Mutiplexer Module CCWDM-4CH LC/UPC Low Insertion Loss WDM Network
Hilink's Low Loss Compact Coarse Wavelength Division Multiplexer (CCWDM) is based on Thin-Film-Filter and Micro-Optics.This technology is a lead-free packaging platform with high reliability.
Highlights
* Mini form
* Ultra low loss
* High channel isolation
* Ultra-Low Insertion Loss
* High Isolation
* Low PDL
* Compact Design
* Good channel-to-channel uniformity
* Mounted in 19' 1U Racks or ABS box optional
* Wide Operating Wavelength: From 1260nm to 1620nm
* Wide Operating Temperature: From -40℃ to 85℃
* High Reliability and Stability
Compliance
* Telcordia GR-1209-CORE-2001
* Telcordia GR-1221-CORE-1999
* RoHS
|
Description |
Unit |
Min |
Typical |
Max. |
||
|
Optional channel loss |
dB |
|
0.8 |
1.1 |
||
|
Pass band width |
nm |
13 |
|
|
||
|
Flatness |
dB |
|
0.3 |
0.5 |
||
|
Adjacent channel isolation |
dB |
30 |
35 |
|
||
|
Non adjacent channel isolation |
dB |
40 |
45 |
|
||
|
Directivity |
dB |
55 |
|
|
||
|
PDL |
dB |
|
|
0.2 |
||
|
PMD |
ps |
|
|
0.2 |
||
|
Max. power |
mw |
500 |
||||
|
Pass channel insertion loss |
P |
dB |
0.8 |
1.0 |
||
|
A |
1.0 |
1.5 |
||||
|
Channel wavelength |
nm |
1471 1491 1511 1531 1551 1571 1591 1611 Can be selected on request or any 4channel between 1260-1625 |
||||
|
Operating temperature |
°C |
0 ~+70 |
||||
|
Storage temperature |
°C |
-40 ~+85 |
||||
|
Package |
mm |
43(L)X28(W)X6(H) or customerized |
||||
