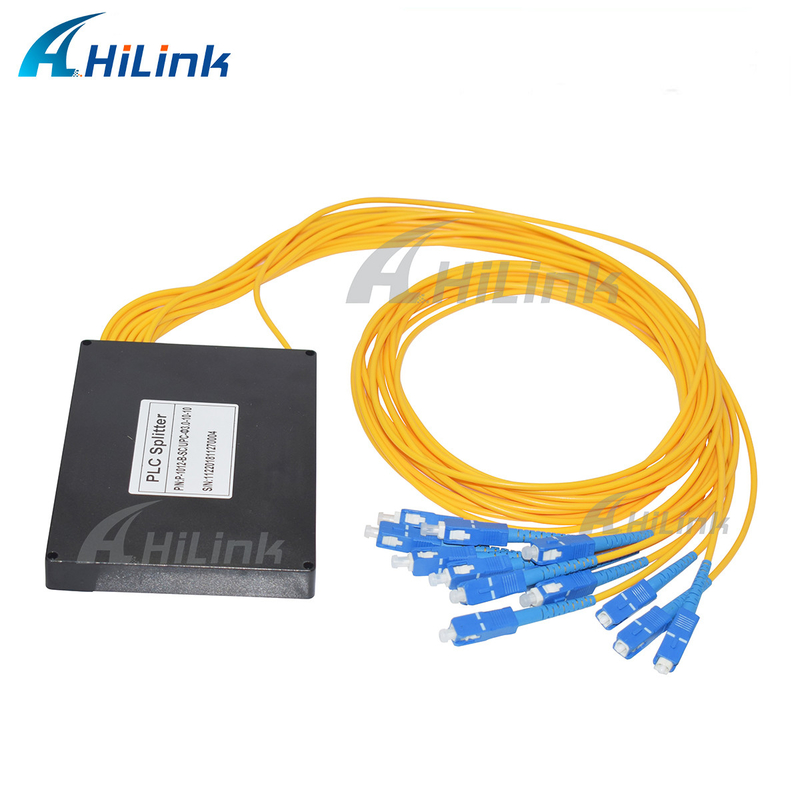

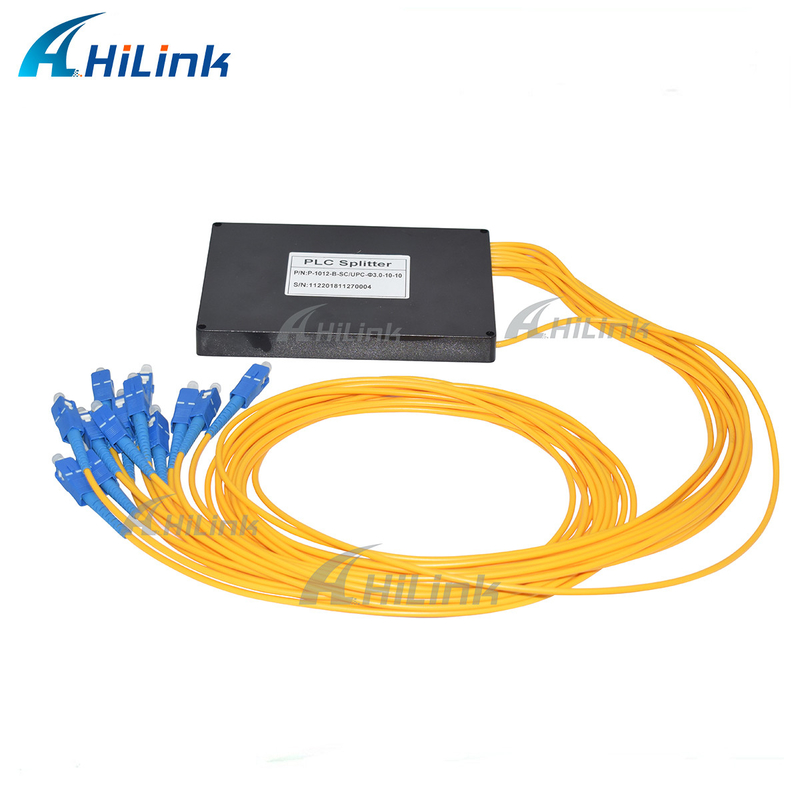

PLC Splitter 1*2/4/8/16/32/64 ABS/Steel Tube Package Type
Planar Lightwave Circuit Splitter (PLC Splitters) is a technology based on planar waveguide optical power distribution products,with low insertion loss and polarization dependent loss, small size, wide operating wavelength range, high channel uniformity and good characteristics. Especially for passive optical network (EPON, BPON, GPON, etc.) to connect the central office and terminal equipment and optical signal splitter to achieve. All products comply with Telcordia GR-1209-CORE, Telcordia GR-1221-CORE, YD / T 1117-2001 and RoHS standards.
| Parameters |
1X2
|
1X4 | 1X8 | 1X 16 | 1X32 | 1X 64 | 1X128 |
|---|---|---|---|---|---|---|---|
| Operating Wavelength (nm) | 1260~1650 | ||||||
|
Fiber Type |
G657A1 or customer specified |
||||||
| Insertion Loss (dB) (P/SGrade ) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | 23.8/24.2 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 | 2.5 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 |
| Return Loss (dB) ( P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Stability (-40~85 C)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (°C) | -40~85 | ||||||
| Storage Temperature (C) | -40~85 | ||||||
| Device Dimension (mm) | 40x4x4 | 40x4x4 | 40x4x4 | 50x4x4 | 50x7x4 | 60x12x4 | N/A |
| Module Dimension (mm) | 100x80x10 | 100x80x10 | 100x80x10 | 120x80x18 | 140x115x18 | 140x115x18 | 140x115x18 |
| Mini-Module Dimension (mm) | 50x7x4 | 50x7x4 | 50x7x4 | 60x12x4 | 80x20x6 | 100x40x6 | N/A |
Features
* Ultra-end insertion loss and associated loss of polarization
* Good spectral uniformity
* FTTx
* Passive Optical Network (PON)
