Place of Origin:
Guangdong, China
Brand Name:
Hilink
Certification:
CE Rohs
Model Number:
40G QSFP+ ER4 25-30KM
Features
4 CWDM lanes MUX/DEMUX design
Up to 11.2Gbps per channel bandwidth
Aggregate bandwidth of > 40Gbps
Duplex LC connector
Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Standard
QSFP MSA compliant Up to30km transmission
Compliant with QDR/DDR Infiniband data rates
Single +3.3V power supply operating
Built-in digital diagnostic functions
Temperature range 0°C to 70°C
RoHS Compliant Part
Applications
Optical Parameters(TOP = 0 to 70 °C, VCC = 3.0 to 3.6 Volts)
| Parameter | Symbol | Min | Typ | Max | Unit | Ref. |
| Transmitter | ||||||
|
Wavelength Assignment |
L0 | 1264.5 | 1271 | 1277.5 | nm | |
| L1 | 1284.5 | 1291 | 1297.5 | nm | ||
| L2 | 1304.5 | 1311 | 1317.5 | nm | ||
| L3 | 1324.5 | 1331 | 1337.5 | nm | ||
| Side-mode Suppression Ratio | SMSR | 30 | - | - | dB | |
| Total Average Launch Power | PT | - | - | 6 | dBm | |
| Average Launch Power, each Lane | -3 | - | 4 | dBm | ||
| Difference in Launch Power between any two Lanes (OMA) | - | - | 4 | dB | ||
| Optical Modulation Amplitude, each Lane | OMA | -4 | +2.5 | dBm | ||
| Launch Power in OMA minus Transmitter and Dispersion Penalty (TDP), each Lane | -4.8 | - | dBm | |||
| TDP, each Lane | TDP | 2.3 | dB | |||
| Extinction Ratio | ER | 3.5 | - | - | dB | |
| Transmitter Eye Mask Definition {X1, X2, X3, Y1, Y2, Y3} | {0.25, 0.4, 0.45, 0.25, 0.28, 0.4} | |||||
| Optical Return Loss Tolerance | - | - | 20 | dB | ||
| Average Launch Power OFF Transmitter, each Lane | Poff | -30 | dBm | |||
| Relative Intensity Noise | Rin | -128 | dB/HZ | 1 | ||
| Optical Return Loss Tolerance | - | - | 12 | dB | ||
| Receiver | ||||||
| Damage Threshold | THd | 3.3 | dBm | 1 | ||
| Average Power at Receiver Input, each Lane | R | -15 | 0 | dBm | ||
| Receive Electrical 3 dB upper Cut off Frequency, each Lane | 12.3 | GHz | ||||
| RSSI Accuracy | -2 | 2 | dB | |||
| Receiver Reflectance | Rrx | -26 | dB | |||
| Receiver Power (OMA), each Lane | - | - | 3.5 | dBm | ||
| Receive Electrical 3 dB upper Cutoff Frequency, each Lane | 12.3 | GHz | ||||
| LOS De-Assert | LOSD | -15 | dBm | |||
| LOS Assert | LOSA | -25 | dBm | |||
| LOS Hysteresis | LOSH | 0.5 | dB | |||
Note
1. 12dB Reflection
| HL-40G-QSFP | MPO 40G 850nm 100m QSFP SR4 |
| MPO 40G 1310nm 2km QSFP IR4 | |
| 40G Dual 1270nm 1290nm 1310nm 1330nm QSFP LR4 |

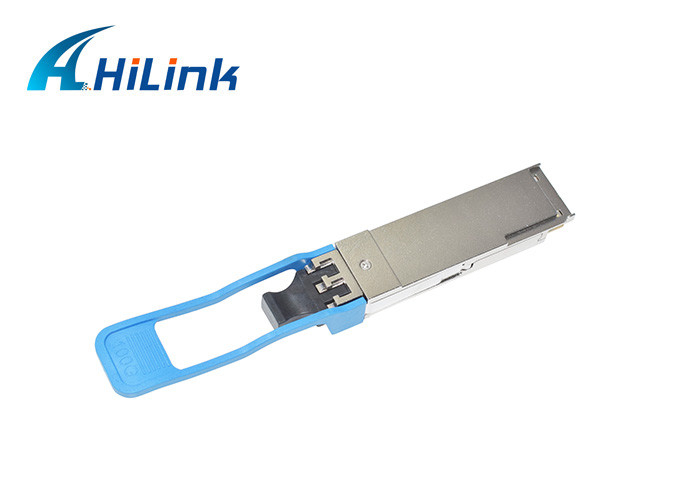

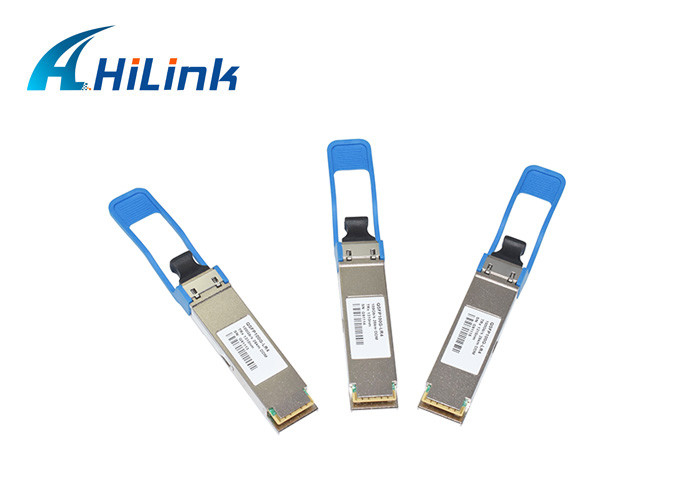

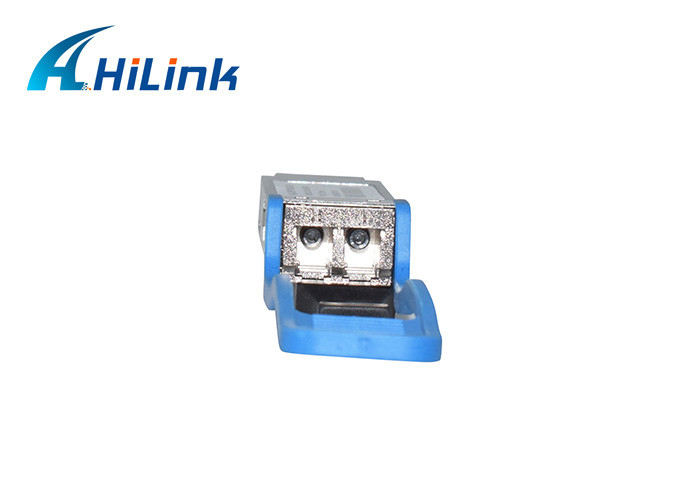

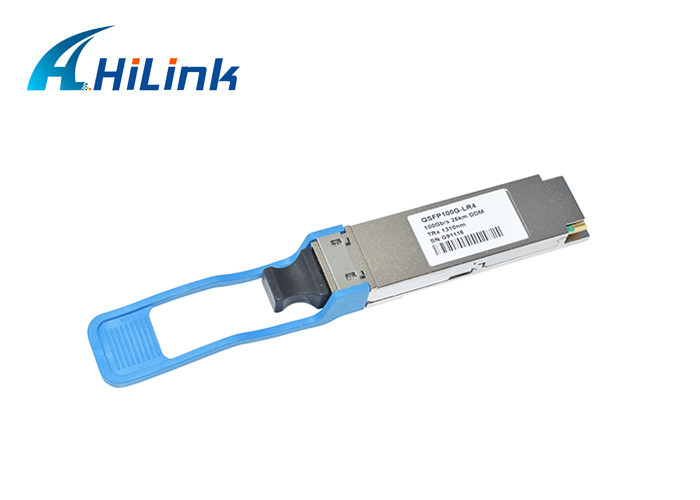

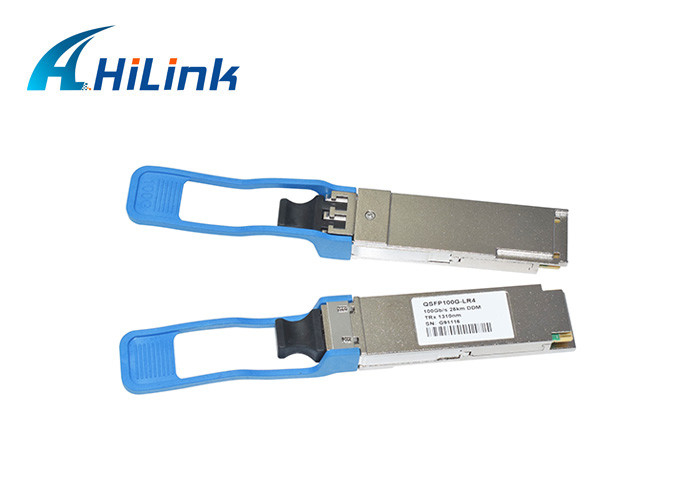

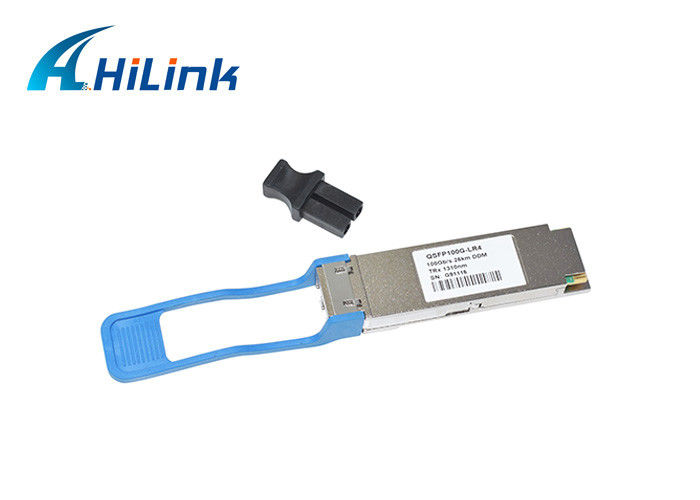

Real Picture
Package & Shipping
International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.
Our Service
OEM/ODM order is available
We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
