Place of Origin:
Guangdong, China
Brand Name:
Hilink
Certification:
CE Rohs
Model Number:
100G QSFP28 ZR4 80KM
QSFP28 transceiver modules are designed for 100 Gigabit Ethernet over single mode fiber. They are compliant with the QSFP28 MSA, 100GBASE-ZR4. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA.
QSFP28 are compliant with RoHS.
Features
Compliant with QSFP28 MSA
4 cooled 25Gb/s channels LAN WDM EML TOSA
4 channels SOA PIN photo detector
Single +3.3V power supply
Class 1 laser safety certified
Commercial operating temperature: 0oC to +70oC
Up to 80km on SMF with FEC
Duplex LC connector
RoHS 6/6 Compliant
Applications
100GBASE-ZR4 Ethernet links
Data center
Transmitter Optical Characteristics
| Parameter | Symbol | Minimum | Typical | Maximum | Unit | Notes |
| Launch Optical Power per lane | Po | +2.0 | - | +6.5 | dBm | 1 |
| Total Launch Optical Power | Po | - | - | +12.5 | dBm | 1 |
| Center Wavelength Range | L1 | 1294.53 | 1295.56 | 1296.59 | nm | - |
| L2 | 1299.02 | 1300.05 | 1301.09 | nm | - | |
| L3 | 1303.54 | 1304.58 | 1305.63 | nm | - | |
| L4 | 1308.09 | 1309.14 | 1310.19 | nm | - | |
| Extinction Ratio | EX | 8.0 | - | - | dB | 2 |
| Spectral width(-20dB) | Δλ | - | - | 1 | nm | - |
| Side Mode Suppression Ratio | SMSR | 30 | - | - | dB | - |
| Optical Return Loss Tolerance | ORLT | - | - | 20 | dB | - |
| Pout @TX-Disable Asserted | Poff | - | - | -30 | dBm | 1 |
| Eye Mask {X1, X2, X3, Y1, Y2, Y3} | {0.25, 0.4, 0.45, 0.25, 0.28, 0.4} | |||||
Notes:
Receiver Optical Characteristics
| Parameter | Symbol | Minimum | Typical | Maximum | Unit | Notes |
| Center Wavelength | L1 | 1294.53 | 1295.56 | 1296.59 | nm | - |
| L2 | 1299.02 | 1300.05 | 1301.09 | nm | - | |
| L3 | 1303.54 | 1304.58 | 1305.63 | nm | - | |
| L4 | 1308.09 | 1309.14 | 1310.19 | nm | - | |
| Sensitivity per Channel (OMA) | S | - | - | -26.9 | dBm | 1 |
| Overload (each channel) | POL | +2.0 | - | - | dBm | 1 |
| Damage Threshold(each channel) | Pdamage | +4.5 | - | - | dBm | - |
| Receiver Reflectance | Rf | - | - | -26 | dB | - |
| LOS De-Assert | LOSD | - | - | -28.0 | dBm | - |
| LOS Assert | LOSA | -35.0 | - | - | dBm | - |
| LOS Hysteresis | - | 0.5 | - | 5.0 | dB | - |
Notes:

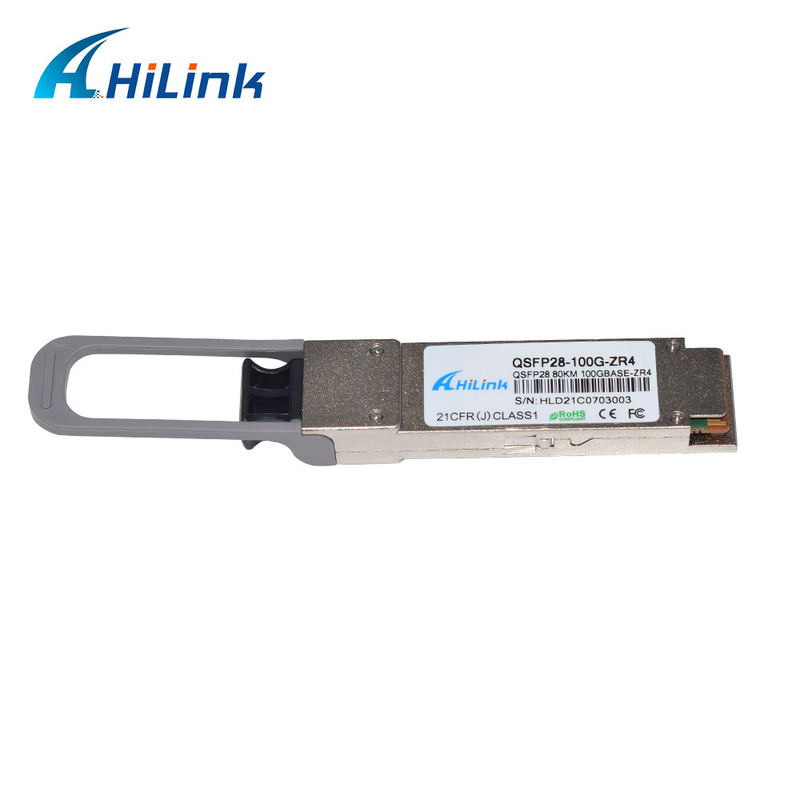

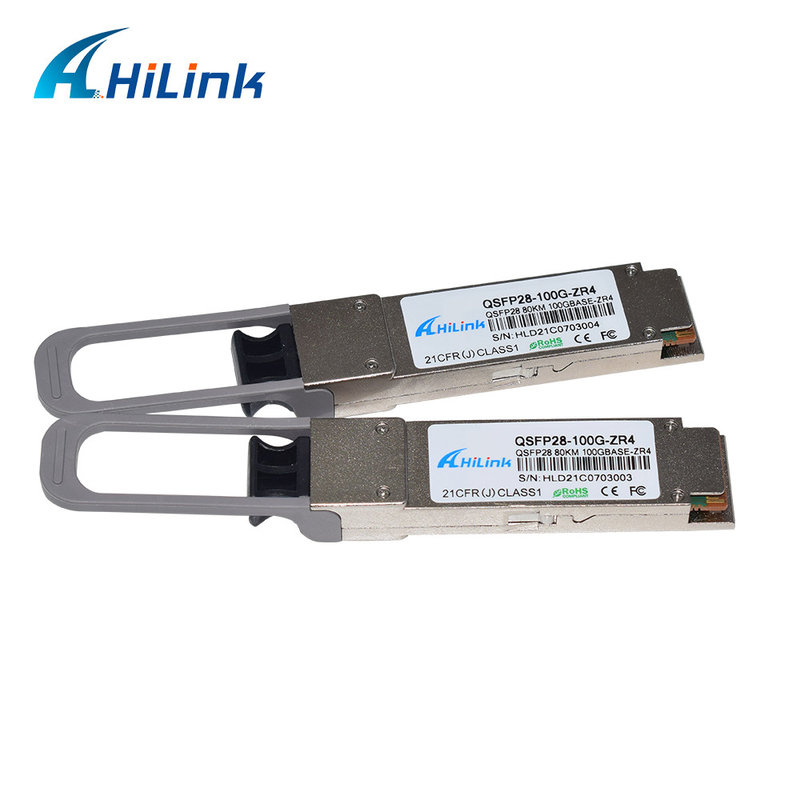

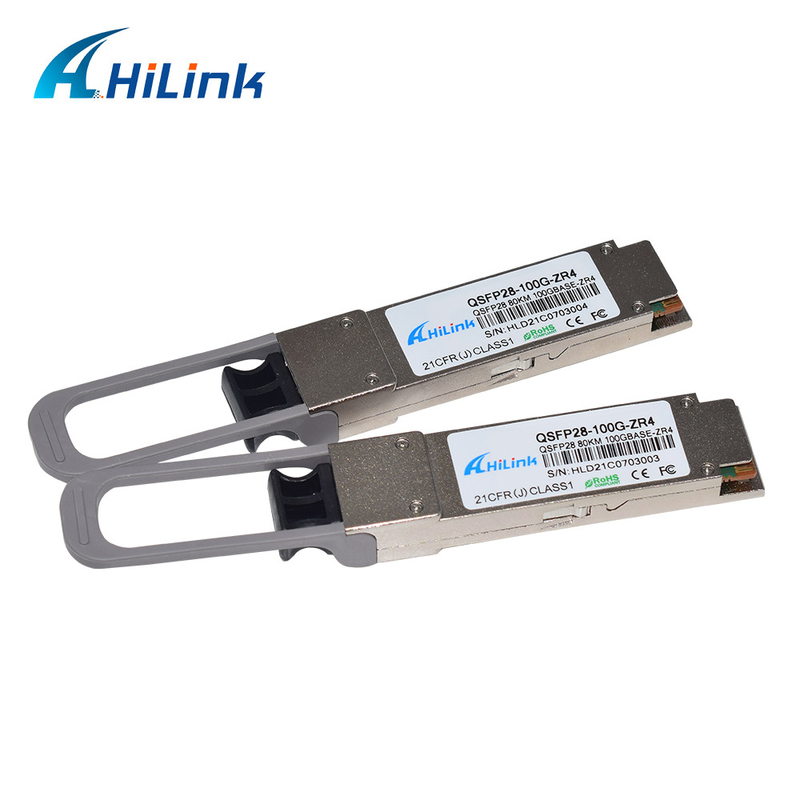

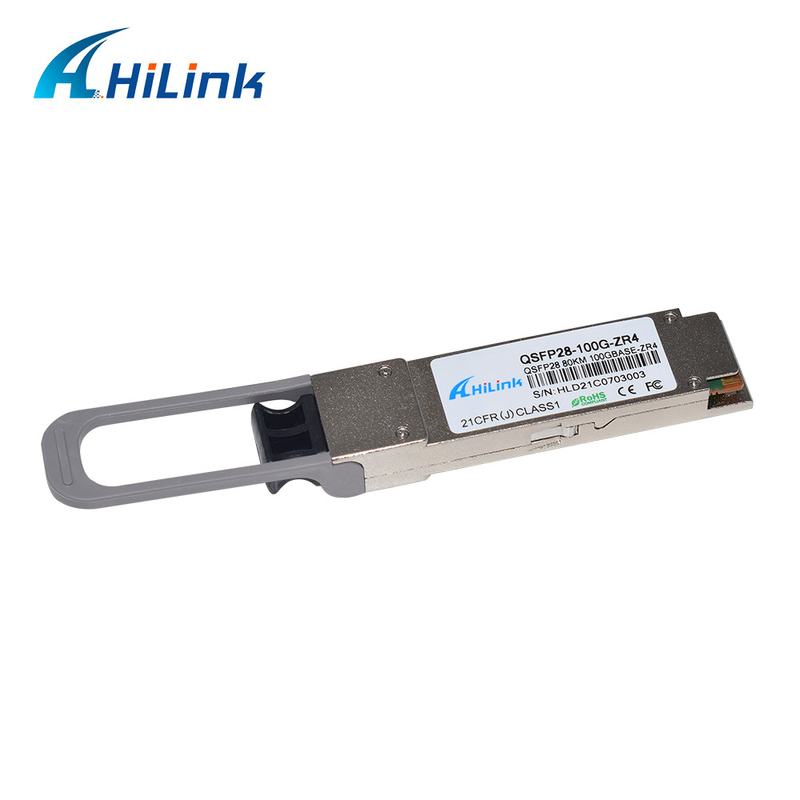

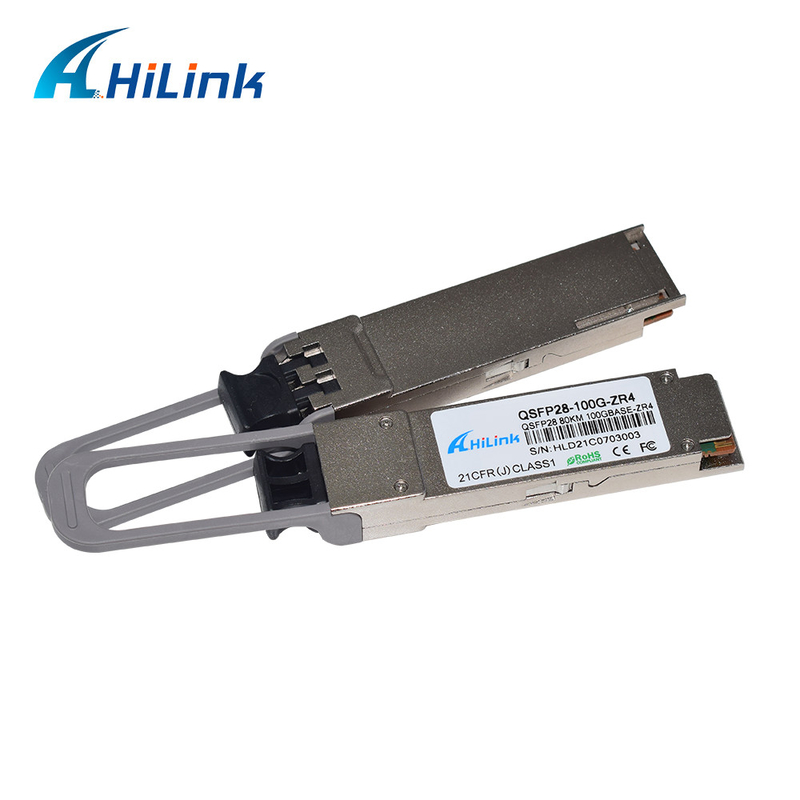

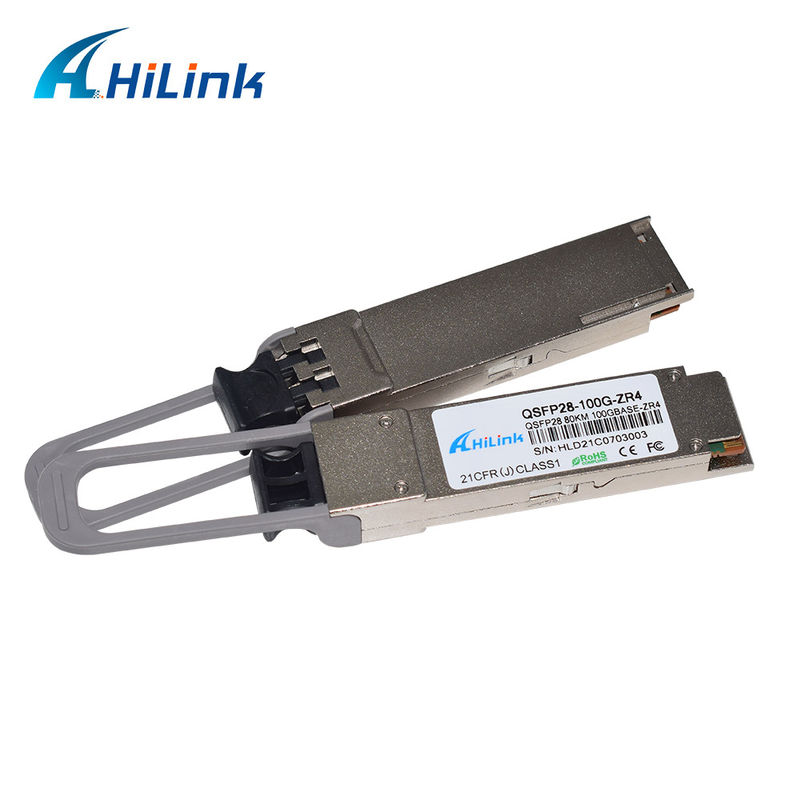

Real Picture
Package & Shipping
International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.
Our Service
OEM/ODM order is available
We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
