Long Haul 1.25G 120KM DWDM C-Band ITU-T Dual LC SFP Modules DDM

Hilink DWDM 1.25Gbps SFP transceiver

1.25G 120KM Fiber Optic Sfp Module

SFF-8472 MSA Compliant SFP Modules

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

DWDM-SFP-120

Request A Quote

Long Haul 1.25G 120KM DWDM C-Band ITU-T Dual LC SFP Modules DDM

Product Details

Wavelength:

DWDM CH17~61

Data:

1.25Gbs

Distance:

120KM

Package:

SFP

Connector:

Dual LC

Logo:

Customised

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

Negotiable

Packaging Details

Blister Packaging

Delivery Time

3-5 Working Days

Payment Terms

T/T, Western Union, MoneyGram,Paypal

Supply Ability

100PCS Per Day

1000BASE-ZX 200KM 1.25G 1550nm 200KM LC SMF SFP Transceiver

Get Best Price

1.25G SFP Transceiver Module for Speed Data Transmission in Commercial Environments

Get Best Price

1.06 Gb/s Fibre Channel LC Connector SFP Transceiver Module with CE FCC Support Operating Temperature Range 0°C to 70°C

Get Best Price

Small Form-factor Pluggable Transceiver Operating temp range 0°C to 70°C Connector LC

Get Best Price

86-755-8317-6243

Contact Now

Product Description

Long Haul 1.25G 120KM DWDM C-Band Dual LC SFP Modules DDM

Hilink HLSCXX12L-DD120 DWDM 1.25Gbps SFP transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 120km.

Features

All 100 GHz C-Band Wavelengths on the DWDM ITU Grid
SFF-8472 MSA Compliant
Cold Start up Wavelength Compliance
Low Power Dissipation <1.3W Maximum
-5ºC to 70ºC Operating Case Temperature
Diagnostic Performance Monitoring of Transmit Power
Laser Bias, Receive Power, LD&Module Temperature
APD Bias Voltage, TEC Current
Extended link budget with APD receiver technology
OC48/STM-16 Long Reach 80km, 120km and 200km Versions
RoHS compliant and lead free

Details

Item No.	DW-SFP-120	Vendor Name	Hilink
Form Type	SFP	Max Data Rate	1.25Gbps
Wavelength	CWDM	Max Cable Distance	120KM
Interface	LC duplex	Optical Components	DFB CWDM
Cable Type	SMF	DOM Support	Yes
TX Power	0~5dBm	Receiver Sensitivity	<-32dBm
Commercial Temperature Range	0 to 70°C (32 to 158°F)	HTS-Harmonized Code	8517706000

Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

Applications

DWDM up to 1.25GBASE-ZX
Metropolitan and access systems
IP routers and ATM core switches
DWDM for Metro Area Networks

1.25G DWDM Optical Transceiver series

DWDM SFP (1.25G)
HLSDXX12L-CD40	1.25G	CH17~CH61	40km	DWDM+PIN	0~70℃
HLSDXX12L-CD80	1.25G	CH17~CH61	80km	DWDM+PIN	0~70℃
HLSDXX12L-CD120	1.25G	CH17~CH61	120km	DWDM+APD	0~70℃

Details Photos

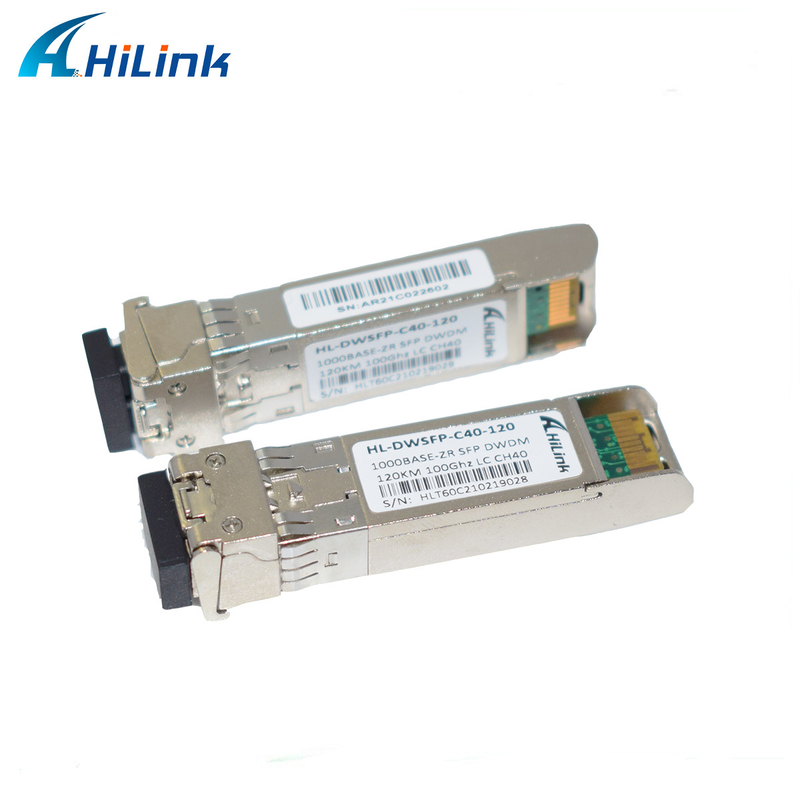

Long Haul 1.25G 120KM DWDM C-Band ITU-T Dual LC SFP Modules DDM 0

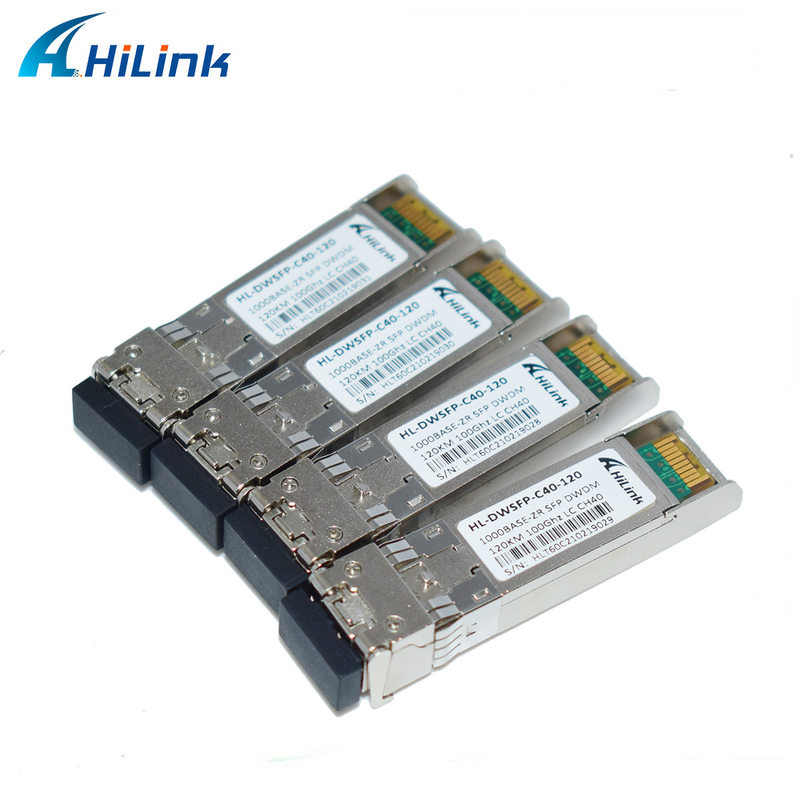

Long Haul 1.25G 120KM DWDM C-Band ITU-T Dual LC SFP Modules DDM 1

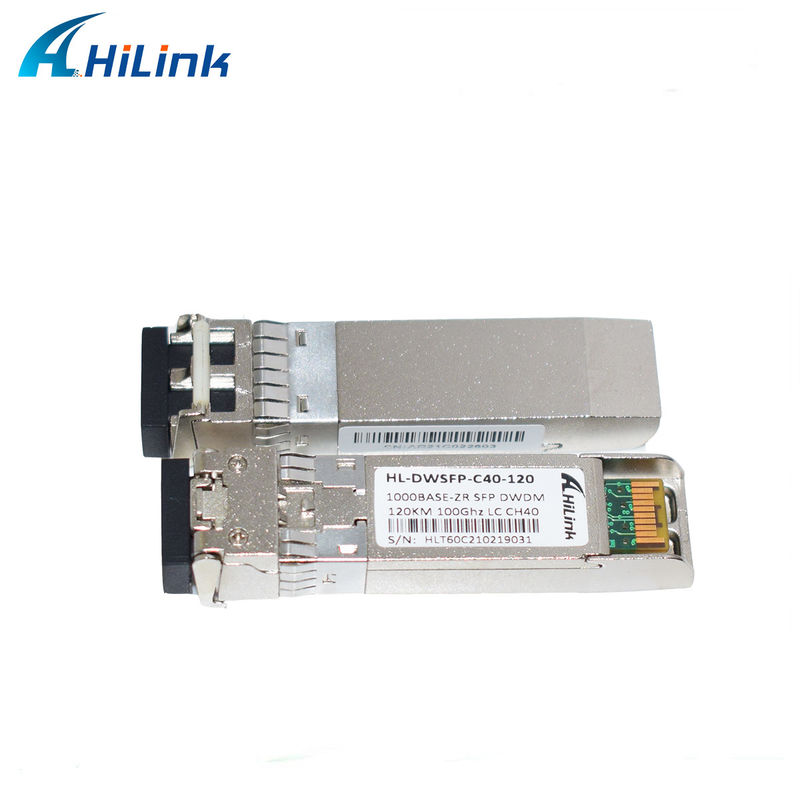

Long Haul 1.25G 120KM DWDM C-Band ITU-T Dual LC SFP Modules DDM 2

Hilink Advantage

1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
