Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
CWDM-SFP28XX-10
25G CWDM 10KM SFP28 Transceiver Module DDM DOM Transceiver Fiber Optic
Hilink 25G CWDM SFP28 10km optical transceivers are designed for 25G Ethernet and CPRI/eCPRI links reach up to 10km over Single-Mode Fiber (SMF).
1271nm ,1291nm,1311nm,1331nm,1351nm,1371nm CWDM 25.78Gbps SFP+ transceiver is designed for use in 25Gb/s data rateover single-mode fiber for link length 10Km.
Features
Compliant with SFP28 MSA and CPRI/eCPRI
Data rate up to 25Gbps
Reach up to 10km on SMF
Low power consumption < 1.5W
Dual LC receptacles
Operating case temperature range: 0°C to +70°C
Single 3.3V power supply
RoHS compliant (lead free)
Details
| Item No. | CW-SFP28GX-10 | Vendor Name | Hilink |
| Form Type | SFP28 | Max Data Rate | 10Gbps |
| Wavelength | CWDM | Max Cable Distance | 10KM |
| Interface | LC duplex | Optical Components | DFB CWDM |
| Cable Type | SMF | DOM Support | Yes |
| TX Power | 0~6dBm | Receiver Sensitivity | <-12dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Applications
CPRI option 10
eCPRI

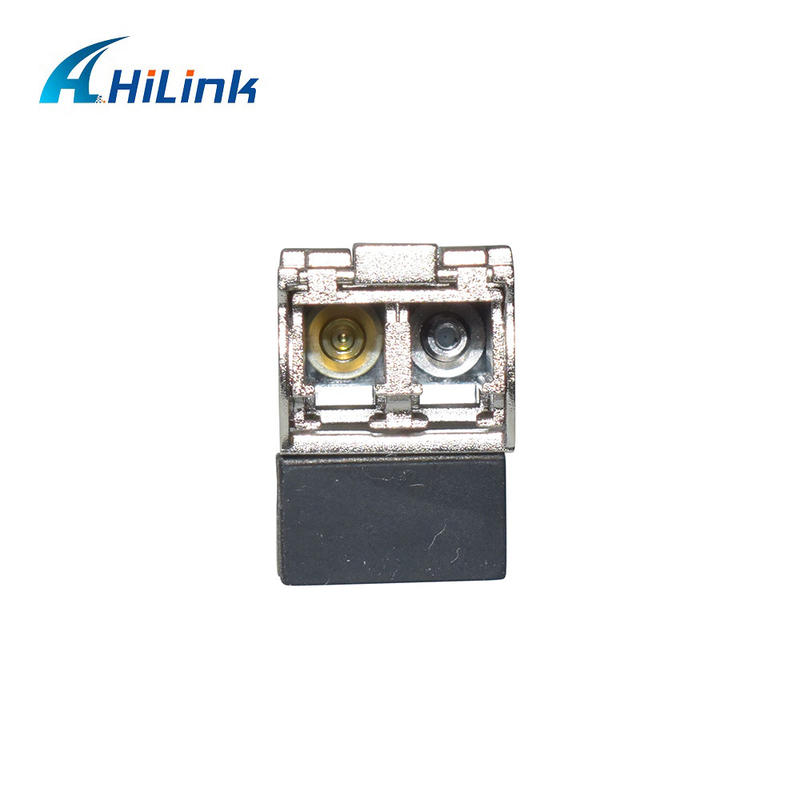

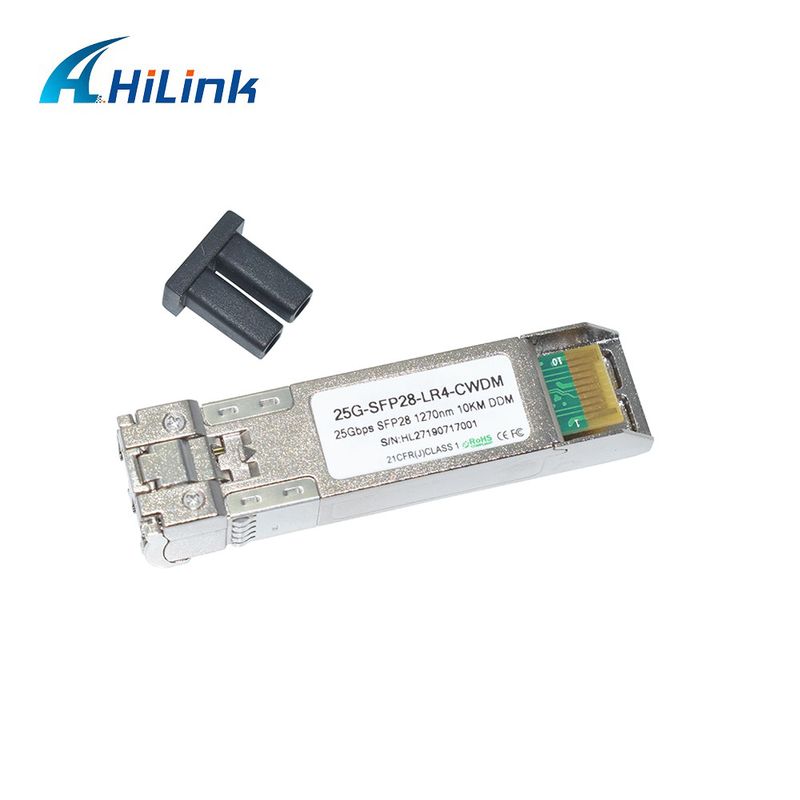

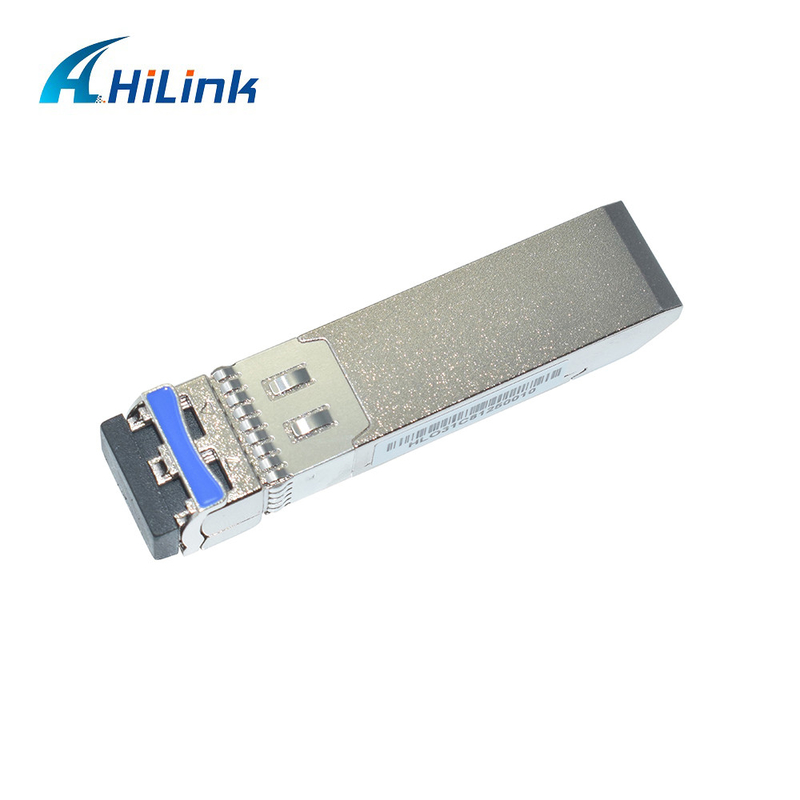

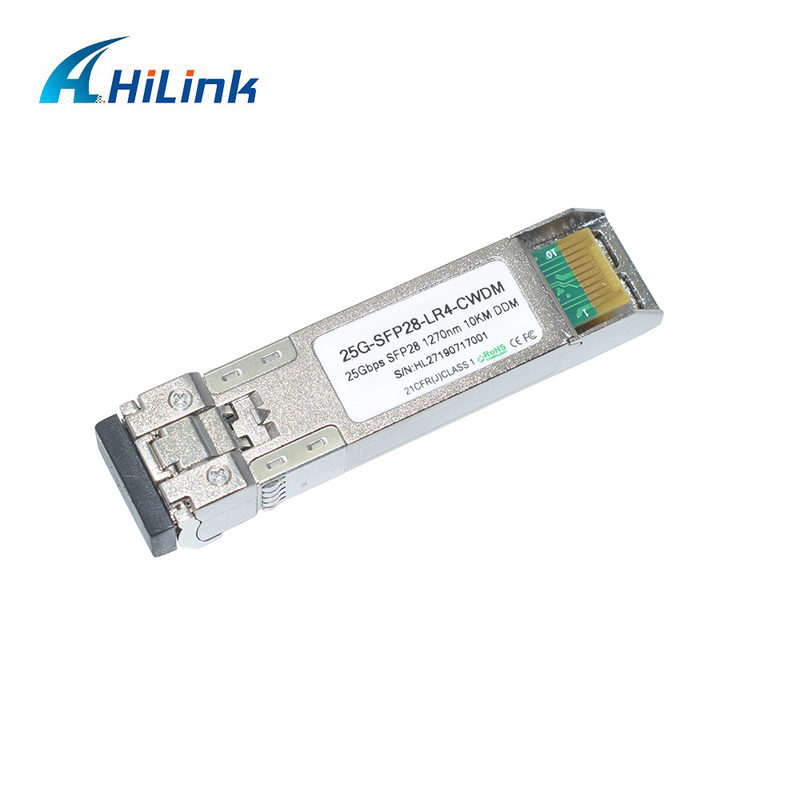

Details Photos
Hilink Advantage
1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
