QSFP56 SR4 Optical Transceiver Module 100m 850nm 200 Gbps Fiber Optic Transceiver

QSFP56 SR4 Optical Transceiver Module 100m 850nm 200 Gbps Fiber Optic Transceiver

Single MPO12 Optical Transceiver Module

MPO12 connector Optical Transceiver Module

200 Gbps Fiber Optic Transceiver

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-QSFP56-200G-SR4

Contact Us
Request A Quote
Product Details
Key Work:
QSFP56 200G SR4 100M
Data Rate:
200Gb/s
Distance:
100M
Wavelength:
850nm
Connector:
MPO Connector
CE FCC:
Support
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Static bag, Plastic Flat, Retail box, by requires
Payment Terms
L/C, T/T, Western Union.Paypal
Supply Ability
100/PCS/MONTH
Product Description

200G QSFP56 SR SR4 100m 850nm Fiber Optic Products Optica Module 200 Gbps Transceiver

GENERAL
          The HiLink 200G QSFP56 SR4 is a 4×50Gbps multi mode fiber, hot pluggable optical transceiver. The module integrates four parallel lanes with baud rate at 26.5625GBd each lane. It can transmit up to 70 m on fiber OM3 fiber or 100 m on OM4 fiber with FEC.

PRODUCT FEATURES
Compliant with IEEE Std 802.3bs, IEEE Std 802.3cm
Compliant with 200G-SR4 optical specifications
4x53.125Gb/s electrical interface (200GAUI-4)
Reach up to 70m on MMF(OM3)
Reach up to 100m on MMF(OM4)
Single +3.3V power supply
Case temperature range: 0 ~ +70℃
Maximum power consumption 5W
Single MPO12 connector

APPLICATIONS
200GBASE-SR4 100G Ethernet
Telecom networking
Data centers

RELATED PRODUCT
QSFP28-100G-SR4 100GBASE-SR4 850nm 100M LC
QSFP28-100G-LR4 100GBASE-LR4 1310nm 10KM LC
QSFP28-100G-ER4 100GBASE-ER 1310nm 40KM LC
QSFP28-100G-ZR4 100GBASE-ZR 1310nm 80KM LC
QSFPDD-400G-SR8 400GBASE-SR 850nm 100M MPO

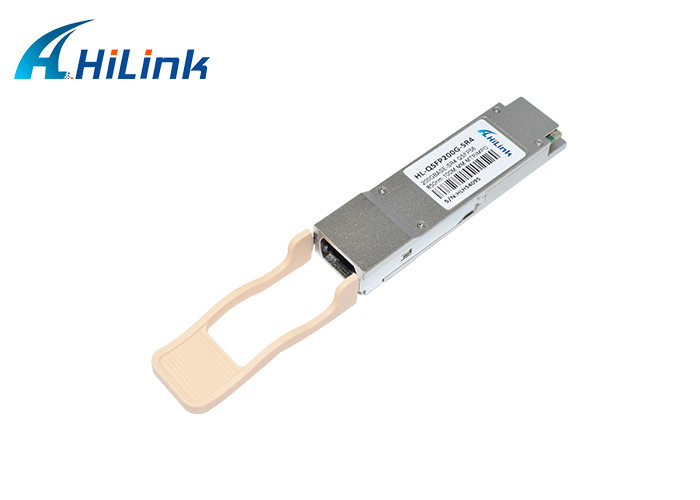

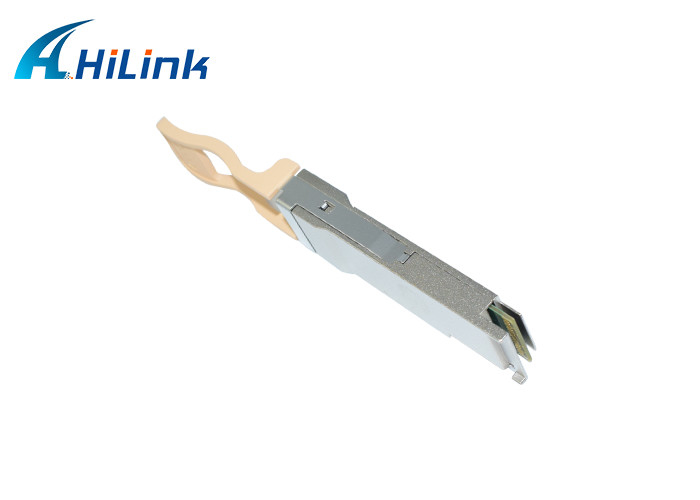

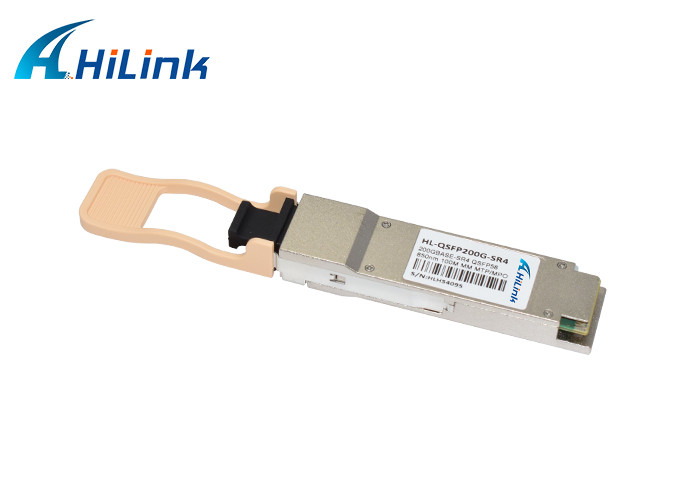

PRODUCT PICTURE SHOW

QSFP56 SR4 Optical Transceiver Module 100m 850nm 200 Gbps Fiber Optic Transceiver 0QSFP56 SR4 Optical Transceiver Module 100m 850nm 200 Gbps Fiber Optic Transceiver 1QSFP56 SR4 Optical Transceiver Module 100m 850nm 200 Gbps Fiber Optic Transceiver 2
