Place of Origin:
China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-PLC-Splitter-1*8

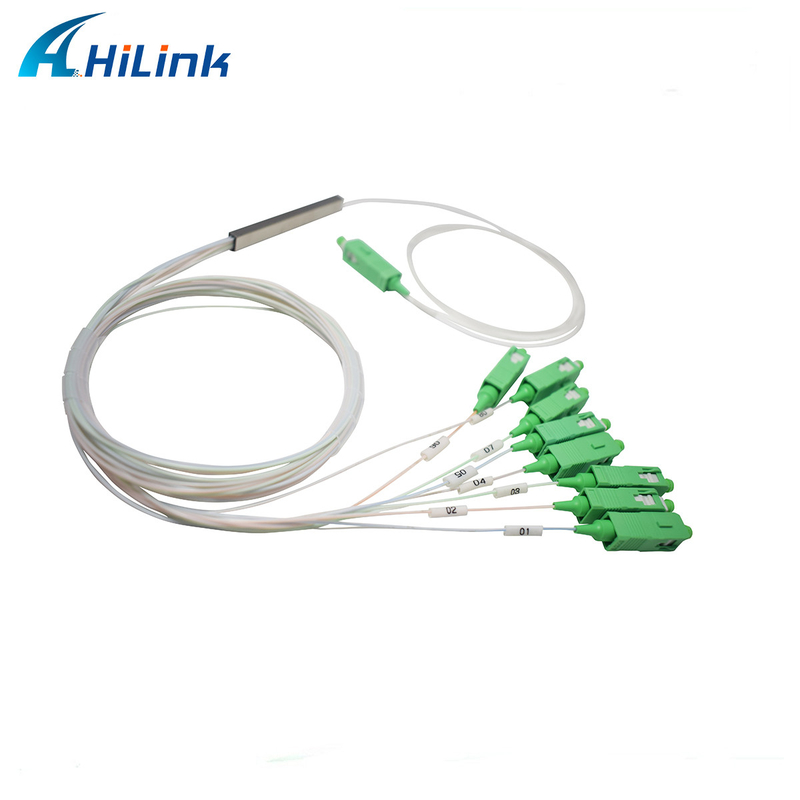

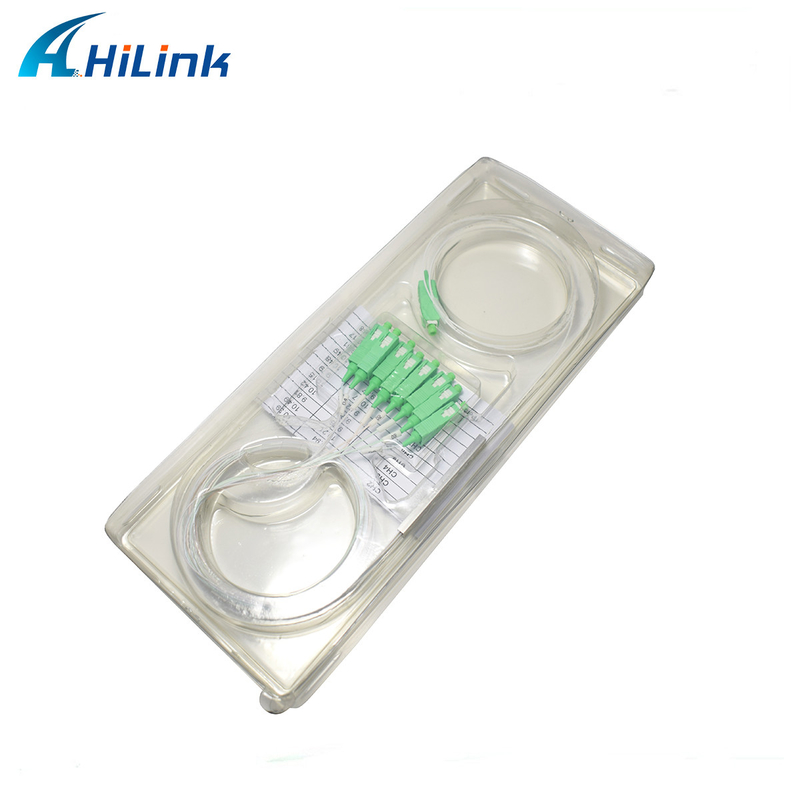

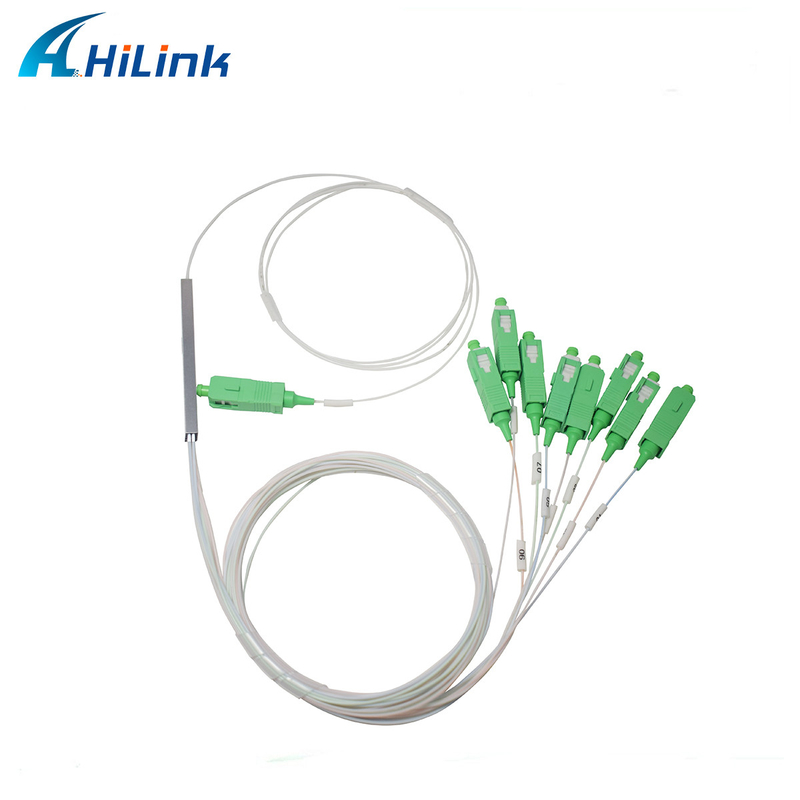

Low insertion loss 1x8 optical fiber PLC Splitter With SC/APC to SC/APC
Description
1).Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.
2).Fiber optic splitter features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
3).Rollball provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.
4).Fiber optic splitter meet GR-1209-CORE and GR-1221-CORErequirements.
Feature
Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: From 1260nm to 1650nm
Wide Operating Temperature: From -40°C to 85°C
High Reliability and Stability
Application
FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution
Specification
| Parameters | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 |
| Operating Wavelength (nm) | 1260~1650 | ||||
| Fiber Type | SMF-28e or customer specified | ||||
| Insertion Loss (dB)(S/P Grade) | 4.2 | 7.6 | 11.0 | 14.5 | 17.5 |
| Loss Uniformity (dB) | 0.8 | 1.5 | 1.5 | 2.0 | 2.5 |
| Return Loss (dB) (S/P Grade) | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.4 | 0.4 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40~85 °C)(dB) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (°C) | -40~85 | ||||
| Storage Temperature (°C) | -40~85 | ||||
| Module Dimension (mm) (L×W×H) | 100×80×10 | 100×80×10 | 120×80×18 | 140×115×18 | 140×115×18 |
Notes:1.Specified without connectors. 2.Add an additional 0.2dB loss per connector
