Dual CS Adaptor QSFP+ Transceiver Integrated SFEC Hilink QSFP28 DWDM TOSA

Dual CS Adaptor QSFP+ Transceiver Integrated SFEC Hilink QSFP28 DWDM TOSA

Dual CS Adaptor QSFP+ Transceiver

Integrated SFEC QSFP+ Transceiver

DWDM TOSA Qsfp Optical Transceiver

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-DW-QS100G-ZR

Contact Us
Request A Quote
Dual CS Adaptor QSFP+ Transceiver Integrated SFEC Hilink QSFP28 DWDM TOSA
Dual CS Adaptor QSFP+ Transceiver Integrated SFEC Hilink QSFP28 DWDM TOSA Dual CS Adaptor QSFP+ Transceiver Integrated SFEC Hilink QSFP28 DWDM TOSA Dual CS Adaptor QSFP+ Transceiver Integrated SFEC Hilink QSFP28 DWDM TOSA
Product Details
Data Rate:
100Gb/s
Distance:
80KM
Wavelength:
C13-C59
Fiber Connector:
Dual CS
Warranty:
3 Years
Package:
QSFP28
Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
Negotiable
Packaging Details
Static bag, Plastic Flat, Retail box, by requires
Delivery Time
2~4 working days
Payment Terms
L/C, T/T, Western Union.Paypal
Supply Ability
1000/PCS/MONTH
RELATED PRODUCTS
Good price QSFP-LR-40G QSFP LR4 1310NM 10KM MPO QSFP 40G SFP Transceiver Modules online

QSFP-LR-40G QSFP LR4 1310NM 10KM MPO QSFP 40G SFP Transceiver Modules

Get Best Price
Good price 100G QSFP28 ZR4 80KM 1310nm QSFP 80KM LC Transceiver Module DOM online

100G QSFP28 ZR4 80KM 1310nm QSFP 80KM LC Transceiver Module DOM

Get Best Price
Good price 100G Ethernet QSFP28-100G-ZR4 100G QSFP28 ZR4 Optical Transceiver online

100G Ethernet QSFP28-100G-ZR4 100G QSFP28 ZR4 Optical Transceiver

Get Best Price
Good price High Quality QSFP-40G-LR4 20KM Dual LC QSFP+ PSM4 LR4 Optical Transceiver Module online Video

High Quality QSFP-40G-LR4 20KM Dual LC QSFP+ PSM4 LR4 Optical Transceiver Module

Get Best Price
Contact Us
86-755-8317-6243
Contact Now
Product Description

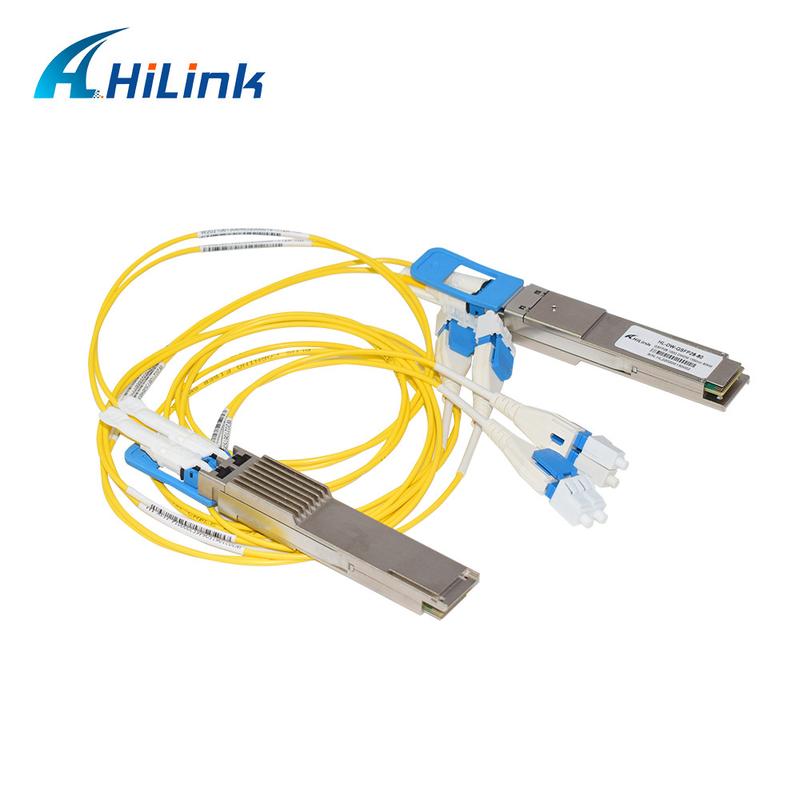

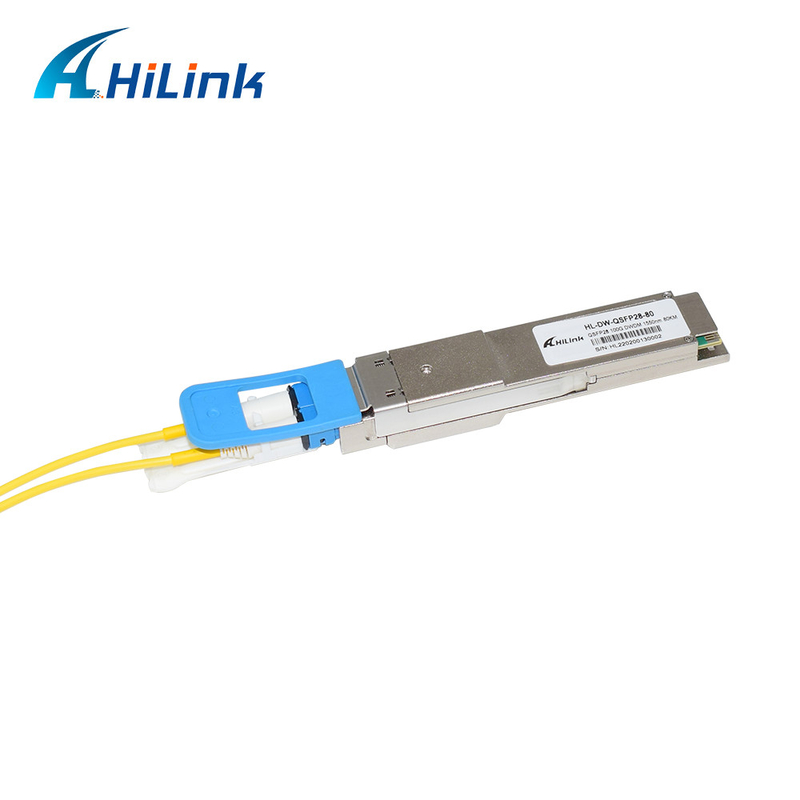

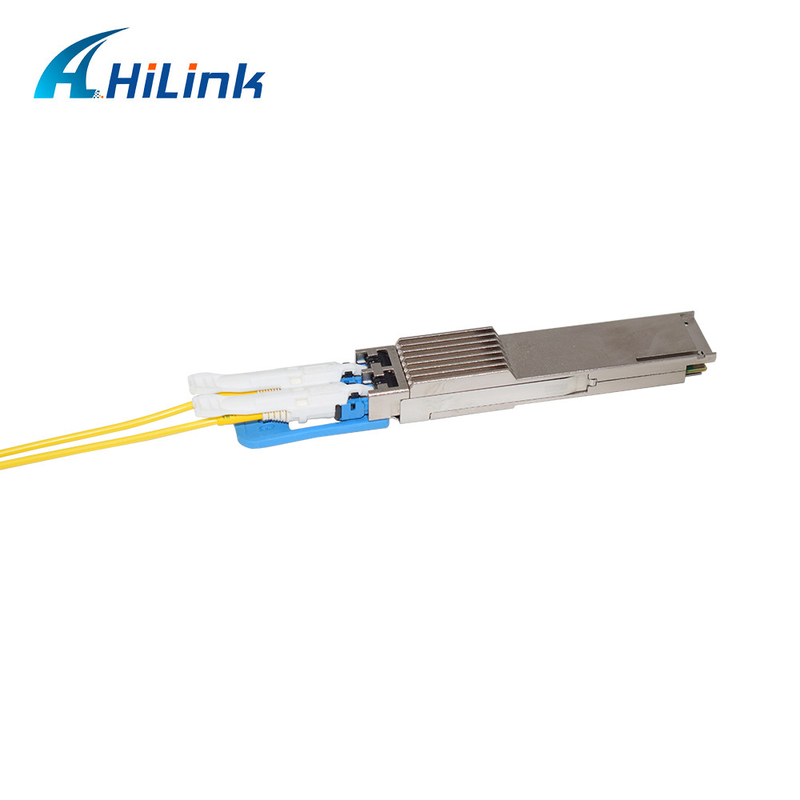

Hilink QSFP28 100G DWDM PAM4 80KM Dual CS adaptor Transceiver



QSFP28 100G DWDM PAM4 80KM Dual CS



Features

  • Hot pluggable QSFP28 MSA form factor
  • Up to 80km reach for G.652 SMF with transport white box
  • Single +3.3V power supply
  • Temperature Range 0 to 70°C
  • Transmitter: Cooled EML 2*27.5Gbaud/s DWDM TOSA
  • Receiver: 2*27.5Gbaud/s Pin-PD ROSA
  • 4*25G CAUI4 electrical interface
  • Integrated SFEC with high coding gain
  • PAM4 modulation format on 100GHz ITU DWDM wavelength grid compatible
  • Dual CS adaptor





Part No Specifications
Package Data rate Tx Pout Rx Sen. Top Others
HL-100GD-CXX QSFP28

103.125

Gbps

Cooled

EAM DFB-LD

 -1 ~ +4 dBm -12.5 dBm @BER 4E-3 0~70oC DDM












Dual CS Adaptor QSFP+ Transceiver Integrated SFEC Hilink QSFP28 DWDM TOSA 0







Passive DWDM MUX 1X100G QSFP28 DWDM 120KM Solution

Dual CS Adaptor QSFP+ Transceiver Integrated SFEC Hilink QSFP28 DWDM TOSA 1



Hilink QSFP28 100G DWDM PAM4 80KM Dual CS adaptor Transceiver

Hilink QSFP28 100G DWDM PAM4 80KM Dual CS adaptor Transceiver

Hilink QSFP28 100G DWDM PAM4 80KM Dual CS adaptor Transceiver



If you have any questions, please click "Contact Now" and send your questions, we will have a professional to provide answers. Thank you!


Part Number Data Rate Distance Wavelength Output Power Sensitivity Remark
HQ28-SR-M85-X1D 100Gbps MM 100m
(OM4)		 850nm -8.4 ~ +2.4dBm -10.3dBm QSFP28-100G-SR4
HQ28-LR-L13-10D 100Gbps SM 10km 1310nm -4.3 ~ +4.5dBm -10.6dBm QSFP28-100G-LR4
HQ28-LR-L13-10C1 100Gbps SM 10km 1310nm -4.3 ~ +4.5dBm -10.6dBm QSFP28 100G-LR4-Ethernet
HQ28-ER-L13-40D 100Gbps SM 40km 1310nm -2.9 ~ +4.5dBm -16.9dBm QSFP28 100G-ER4
HQ28-K7-L13-xxx 100Gbps SM 2km 1310nm -6.5 ~ +2.5dBm -11.5dBm QSFP28 100G-CWDM4






The 25g~100G Series

25G SFP28 SR4 25Gbps 850nm SFP28 transceiver 100M
QSFP-40G-SR4 QSFP-SR4, MMF, 850nm, 150M, MPO
QSFP-40G-CSR4 QSFP+, MMF, 850nm, 300M (OM3) - MPO
QSFP-40G-LR4 QSFP-LR4, SMF, 1270nm~1330nm,15KM LC
QSFP-40G-PSM-IR4 QSFP+-IR4,SMF ,1310NM 2KM MPO
40G QSFP+ PSM 10KM QSFP+-LR4,SMF ,1310NM 10KM MPO
100G QSFP28 SR4 100GBASE-SR4 QSFP28
QSFP28 CWDM4 2KM 100G QSFP28 CWDM4 2KM 1271~1331
QSFP28 CWDM4 500M 100G QSFP28 CWDM4 500 1271~1331
QSFP28 PSM4 1310nm 2km QSFP28 PSM4 1310nm 2km MPO SMF
25G SFP28 AOC 1M 25Gbps 850nm Multimode SFP28 AOC 1~100M
25G SFP28 DAC SFF-8402 25G SFP28 to SFP28 DAC 1m 3m 5meter
40G QSFP+ AOC 1M QSFP-AOC Active 40Gbase 1~100meter
40G QSFP+ DAC 1M QSFP SFF8436 Passive Cable 1~5M
100G QSFP28 TO QSFP28 DAC 1M 2M 3M 5M SFF-8665 100G QSFP28 Passive
100G QSFP28-SR4 AOC 1M 100GBASE-SR4 QSFP28 AOC Fiber

Dual CS Adaptor QSFP+ Transceiver Integrated SFEC Hilink QSFP28 DWDM TOSA 2Dual CS Adaptor QSFP+ Transceiver Integrated SFEC Hilink QSFP28 DWDM TOSA 3
