Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-QSFP-40G-SR4
Video
ZTE Compatible 40G QSFP SR 850nm 150m Optical SFP Transceiver
PRODUCT DESCRIPTIONS
PRODUCT FEATURES
· Four-channel full-duplex transceiver modules
· Transmission data rate up to 11.3Gbit/s per channel
· Up to 100m on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF
· Low power consumption <1.5W
· Operating case temperature: 0 to 70℃
· 3.3V power supply voltage
· Hot Pluggable QSFP form factor
· MPO connector receptacle
· Built-in digital diagnostic function
APPLICATIONS
· Proprietary High Speed Interconnections
· Infiniband QDR and DDR interconnects
· Data Center
QSFP SERIES
| Part Number | Product Description | |
| HL-QSFP-40G-SR4 | QSFP+,40Gb/s, 40GBASE-SR4, MMF, 850nm, 150M | |
| HL-QSFP-40G-LR4 | QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM | |
| HL-QSFP-40G-ER4 | QSFP+, 40Gb/s, 40GBASE-ER4, SMF, 1310nm, 40KM | |
| HL-QSFP28-100G-SR4 | QSFP+, 100Gb/s, 100GBASE-SR4, MMF, 850nm, 150M | |
| HL-QSFP28-100G-LR4 | QSFP+, 100Gb/s, 100GBASE-LR4, SMF, 1310nm, 10KM | |
| HL-QSFP28-100G-ER4 | QSFP+, 100Gb/s, 100GBASE-ER4, SMF, 1310nm, 40KM | |
| HL-QSFP28-100G-ZR4 | QSFP+, 100Gb/s, 100GBASE-ZR4, SMF, 1310nm, 80KM | |

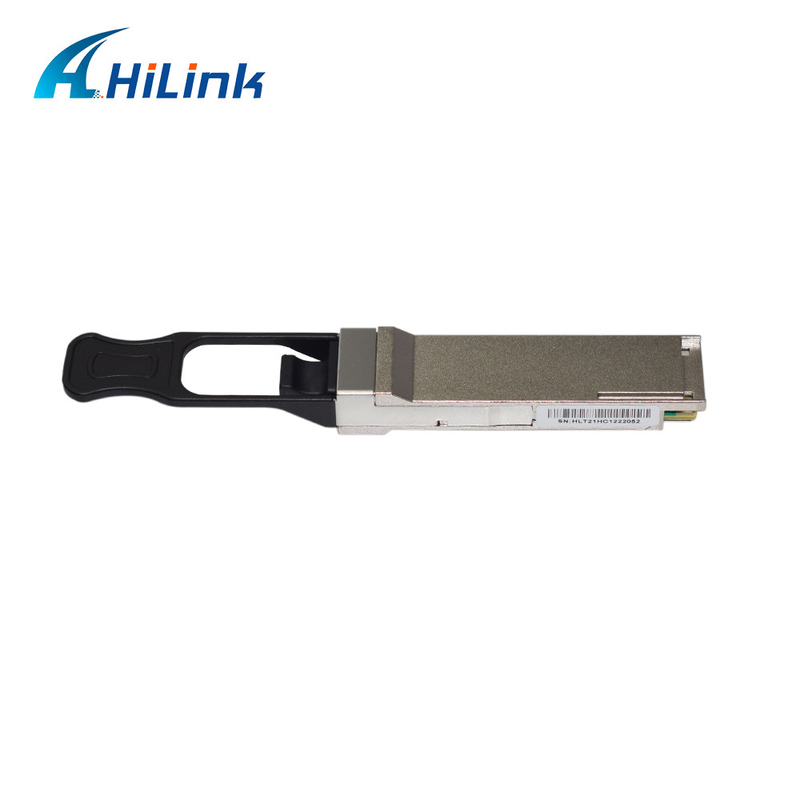

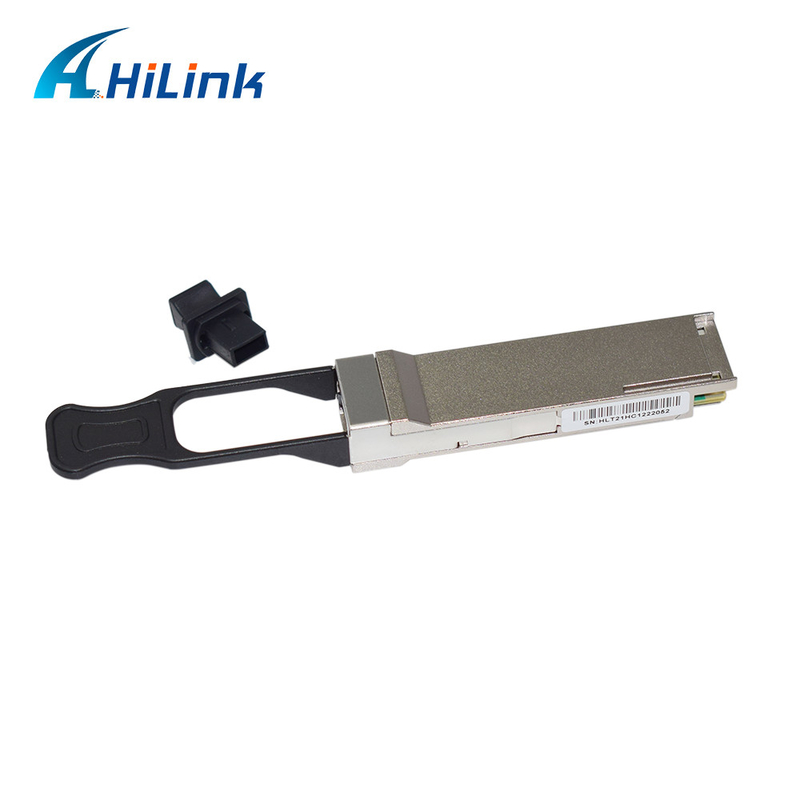

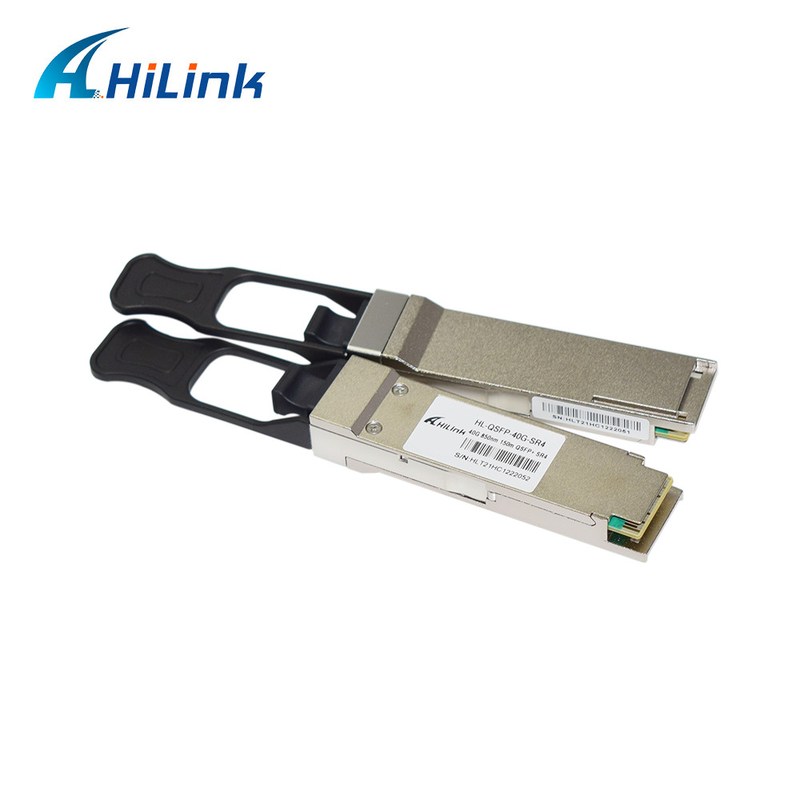

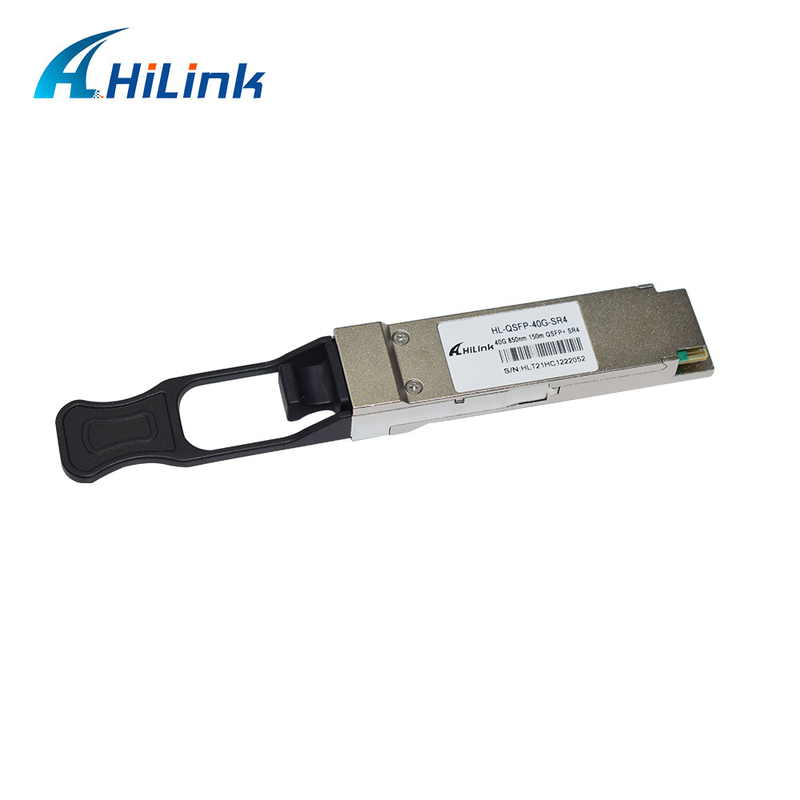

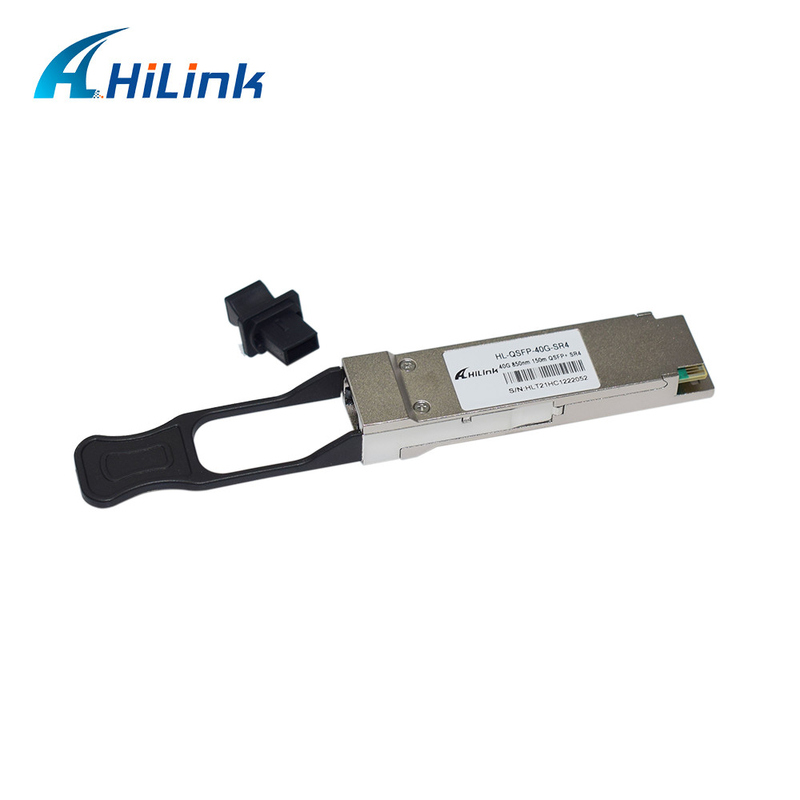

PRODUCT PICTURE SHOW
Optical Parameters
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Transmitter | ||||||
| Center Wavelength | λC | 840 | 860 | nm | 1 | |
| RMS Spectral Width | λrms | 0.65 | nm | 1 | ||
| Average Launch Power, each lane | PAVG | -7.6 | 2.3 | dBm | ||
| Optical Modulation Amplitude (OMA) | POMA | -5.6 | 0 | dBm | 1 | |
| Difference in Launch Power between any two lanes | Ptx,diff | 4.0 | dB | |||
| Launch Power in OMA minus Transmitter and Dispersion Penalty (TDP), each Lane | OMA-TDP | -6.5 | dB | 1 | ||
| Rise/Fall Time | Tr/Tf | 50 | ps | |||
| Extinction Ratio | ER | 3.5 | dB | |||
| Transmitter Eye Mask Margin | EMM | 10 | % | 2 | ||
| Average Launch Power OFF Transmitter, each Lane | Poff | -30 | dBm | |||
| Transmitter Eye Mask Definition {X1, X2, X3, Y1, Y2, Y3} | {0.23, 0.34, 0.43, 0.27, 0.35, 0.4} | |||||
| Receiver | ||||||
| Center Wavelength | λC | 840 | 850 | 860 | nm | |
| Damage Threshold | THd | 3.4 | dBm | |||
| Overload, each lane | OVL | 2.4 | dBm | |||
| Receiver Sensitivity in OMA, each Lane | SEN | -9.5 | dBm | |||
| Signal Loss Assert Threshold | LOSA | -30 | dBm | |||
| Signal Loss Deassert Threshold | LOSD | -12 | dBm | |||
| LOS Hysteresis | LOSH | 0.5 | 8 | dB | ||
| Optical Return Loss | ORL | -12 | dBm | |||
