Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL- 100G - QSFP-BD-SR4
Video

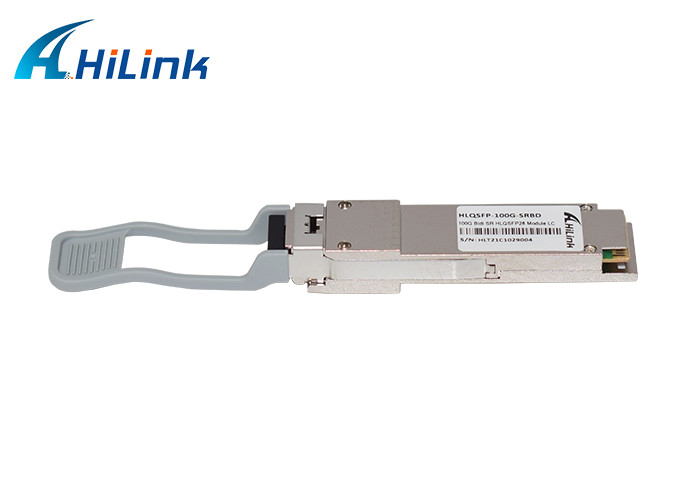

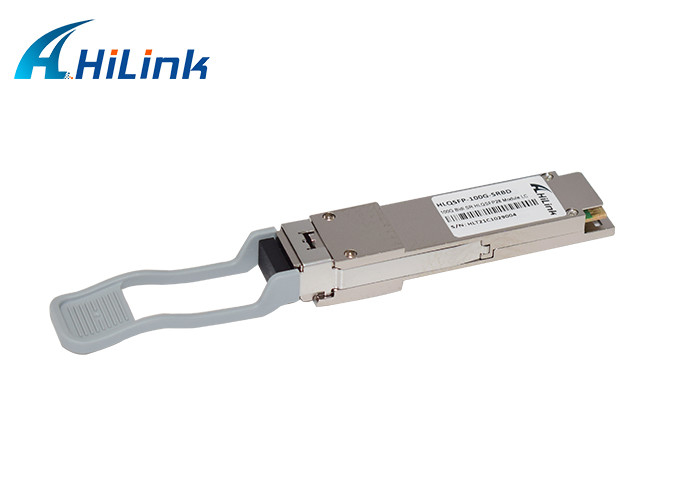

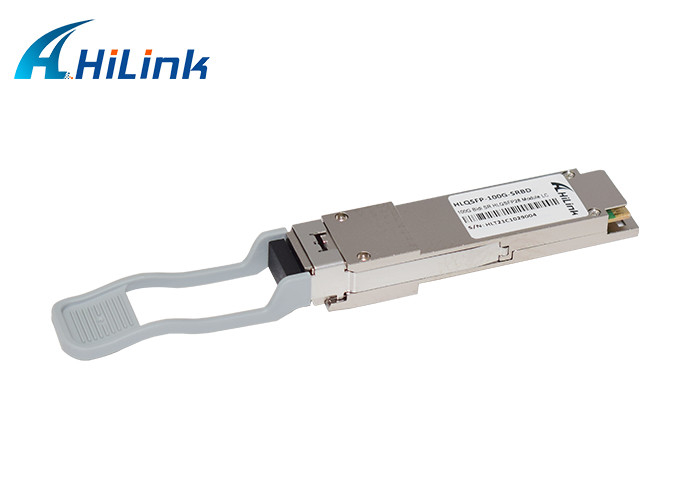

100G QSFP28 Bidi SR Multi-Mode 850nm 100m Duplex LC MMF Optical Transceiver
Kindly Remind :
Tell us your needed compatibility !
Our products are compatible with Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.
This 100GBASE Quad Small Form-Factor Pluggable (QSFP) portfolio offers customers a wide variety of high-density and low-power 100 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider applications. The QSFP-100G modules are our new generation of 100G transceiver modules solution based on a QSFP form factor. (See Figure 1.) It supports link lengths of up to 70m (100m) over OM3 (OM4) Multimode Fiber with MPO connectors. It primarily enables high-bandwidth 100G optical links over 12-fiber parallel fiber terminated with MPO multifiber connectors. QSFP-100G-SR4-S supports 100GBase Ethernet rate.
Features:
² Compliant to the 100GbE XLPPI electrical specification per IEEE 802.3bm
² Compliant to QSFP28 SFF-8636 Specification
² Aggregate bandwidth of > 100Gbps
² Dual wavelength VCSEL bi-directional optical interface, PAM4 2 × 50-Gb/s 850 nm/900 nm
² QSFP28 MSA compliant
² Capable of over 70m transmission on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF
² Single +3.3V power supply operating
² Without digital diagnostic functions
² Temperature range 0°C to 70°C
² RoHS Compliant Part
² Utilizes a standard LC duplex fiber cable allowing reuse of existing cable infrastructure
² Support 40G/100Gbps
Applications:
² 100 Gigabit Ethernet interconnects
² Datacom/Telecom switch & router connections
² Data aggregation and backplane applications
² Proprietary protocol and density applications
| Parameter | Symbol | Min | Typ | Max | Units | Notes |
| Operating Case Temperature | TC | 0 | - | +70 | °C | |
| Power Supply Voltage | VCC | 3.14 | 3.3 | 3.46 | V | |
| Data rate | 103.125 | 112 | Gb/s |
QSFP SERIES :
| QSFP | Nominal Wavelength (nm) | Cable Type | Core Size (Microns) | Modal Bandwidth (MHz*km)*3 | Cable Distance*1 | Power Consumption (W) | Pull Tab Color |
| QSFP-100G-SR4-S | 850 | MMF |
50.0 50.0 |
2000 (OM3) 4700 (OM4) |
70m 100m |
3.5 | Beige |
| QSFP-100G-LR4-S | 1295, 1300, 1304, 1309 | SMF | G.652 | - | 10km | 3.5 | Blue |
| QSFP-100G-CWDM4-S | 1271, 1291, 1311, 1331 | SMF | G.652 | - | 2km | 3.5 | Green |
| QSFP-100G-PSM4-S | 1310 | SMF | G.652 | - | 500m | 3.5 | Orange |
| QSFP-100G-SM-SR | 1271, 1291, 1311, 1331 | SMF | G.652 | - | 2km | 3.5 | Green |
