Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-QS100GCW2km
Video

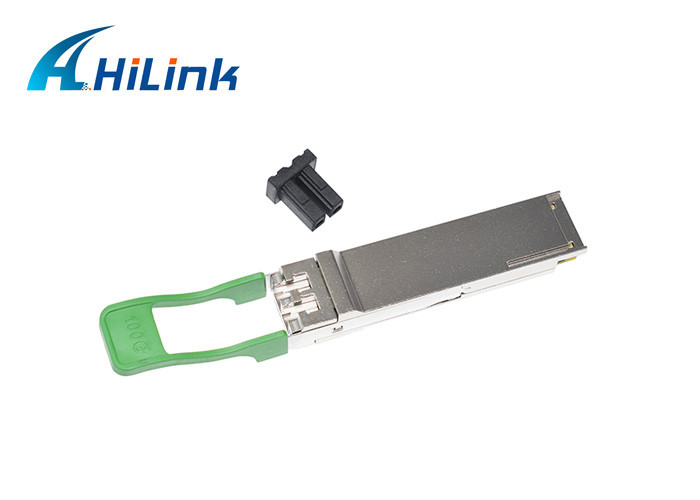

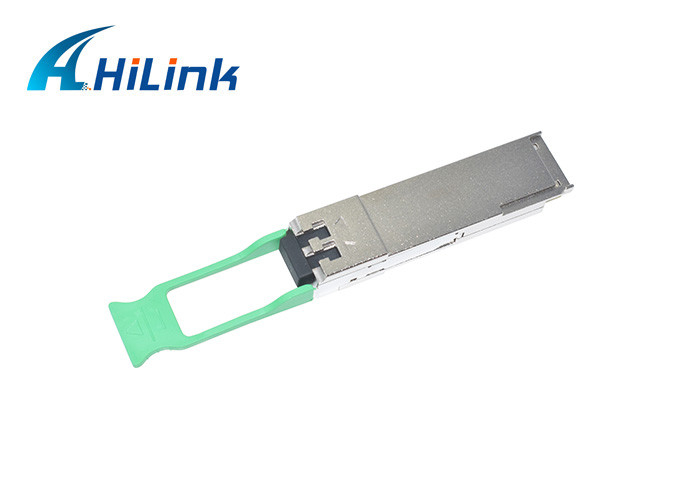

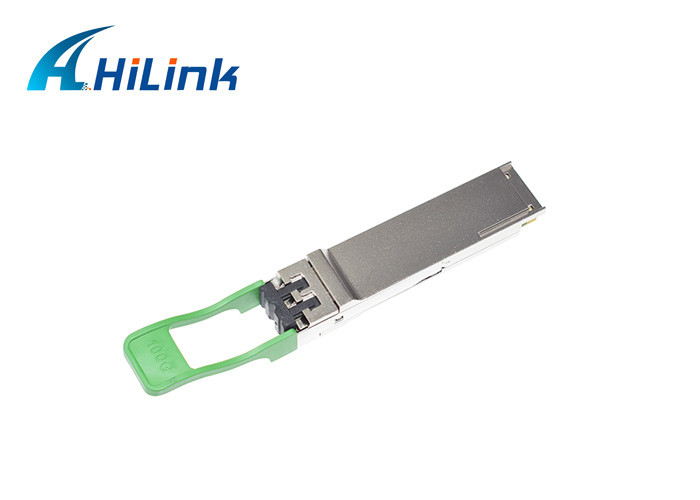

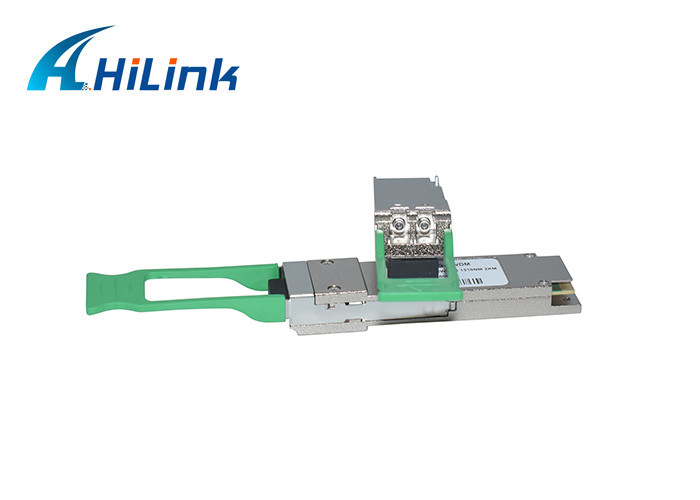

Brand Compatible Duplex LC Connector 100G QSFP28 CWDM CWDM 2KM For FTTX
General:
The HL-QA0GCM-C00 is a Four-Channel, Pluggable, dual LC, Fiber-Optic QSFP28 Transceiver for 100G Ethernet applications. The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 26Gbps operation for an aggregate data rate of 104Gbps 2km using single mode fiber. These modules are designed to operate over single mode fiber systems using 1271nm-1331nm DFB laser array. QSFP28 CWDM4 is one kind of transceiver which provides increased port density and total system cost savings. They are compliant with the QSFP28 MSA, CWDM4 MSA and portions of IEEE P802.3bm.
100G QSFP28 CWDM 2KM
Fea
l Supports 100GBASE-CWDM4(103.1Gb/s);
l Lane bit rate 25.78 Gb/s;
l Up to 2km transmission on SMF;
l CWDM DML laser and PIN receiver;
l High speed I/O electrical interface (CAUI-4);
l Digital Diagnostic monitoring;
l QSFP28 MSA package with duplex LC connector;
l Single +3.3V power supply;Maximum power consumption 3.5 W;
l Operating case temperature: 0 to +70 °C;
Application
100G Ethernet
Proprietary High Speed Interconnections Datacenter
100G CWDM4 application with FEC
