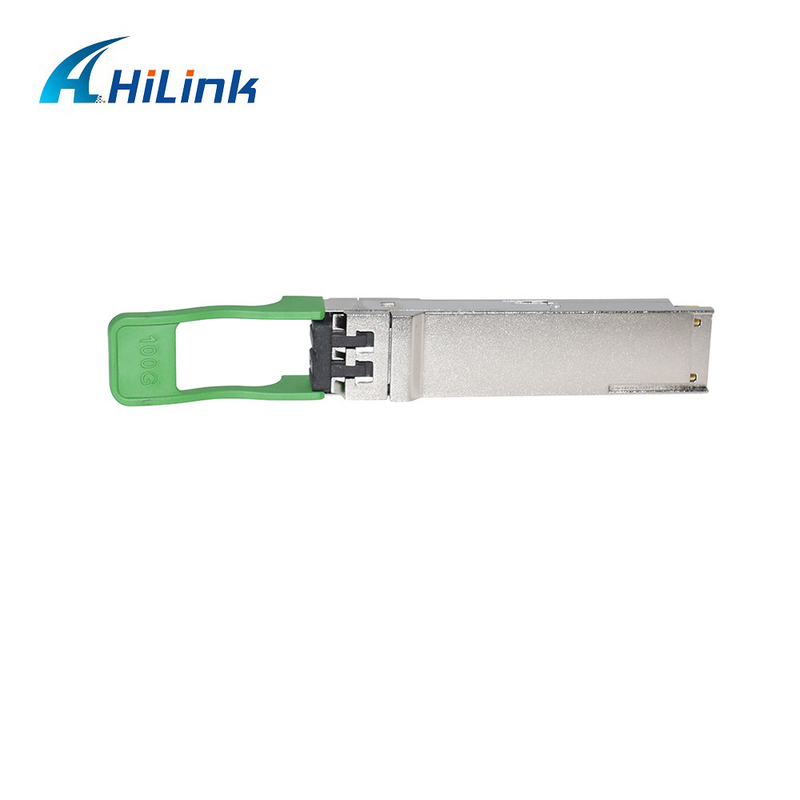

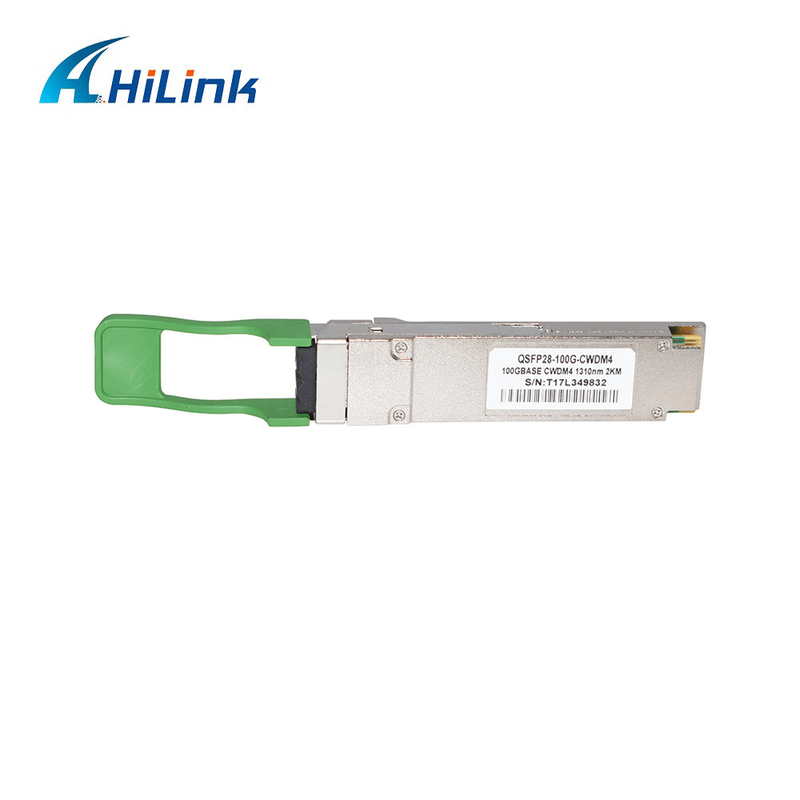

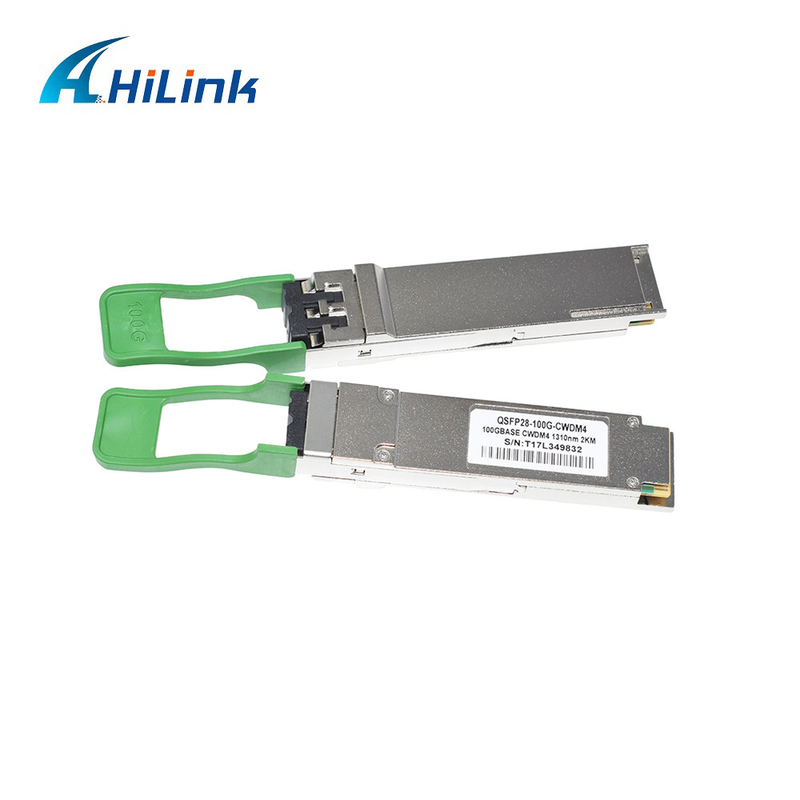

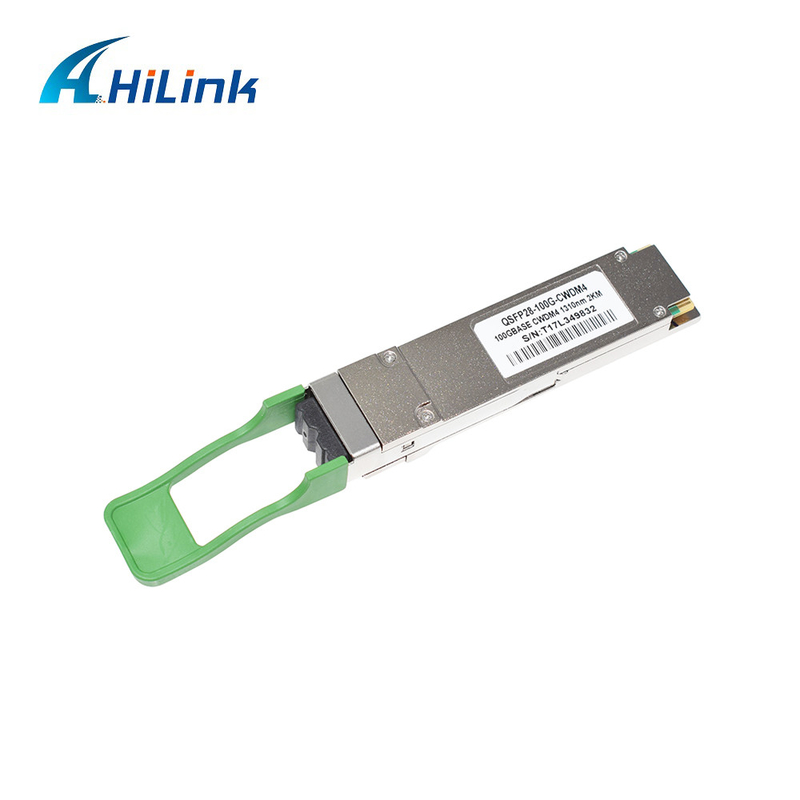

Name: 2km 1310nm SMF LC Qsfp Optical Transceiver QSFP28 100G CWDM4 LR
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QS100G-LR
Price: Negotiable USD
Availability: InStock

Home > products > QSFP+ Transceiver >

2km 1310nm SMF LC Qsfp Optical Transceiver QSFP28 100G CWDM4 LR

SMF LC Qsfp Optical Transceiver

1310nm Qsfp Optical Transceiver

CWDM4 LR Gigabit Fiber Transceiver

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-QS100G-LR

Request A Quote

2km 1310nm SMF LC Qsfp Optical Transceiver QSFP28 100G CWDM4 LR

Product Details

Data Rate:

100Gb/s

Distance:

2KM

Wavelength:

1295nm/1300nm/1304nm/1309nm

Fiber Connector:

Dual LC

Warranty:

3 Years

Package:

QSFP28

Payment & Shipping Terms

Minimum Order Quantity

2pcs

Price

Negotiable

Packaging Details

Static bag, Plastic Flat, Retail box, by requires

Delivery Time

2~4 working days

Payment Terms

L/C, T/T, Western Union.Paypal

Supply Ability

100/PCS/MONTH

QSFP-LR-40G QSFP LR4 1310NM 10KM MPO QSFP 40G SFP Transceiver Modules

Get Best Price

100G QSFP28 ZR4 80KM 1310nm QSFP 80KM LC Transceiver Module DOM

Get Best Price

100G Ethernet QSFP28-100G-ZR4 100G QSFP28 ZR4 Optical Transceiver

Get Best Price

Video

High Quality QSFP-40G-LR4 20KM Dual LC QSFP+ PSM4 LR4 Optical Transceiver Module

Get Best Price

86-755-8317-6243

Contact Now

Product Description

Hilink QSFP28 100G LR CWDM4 2km 1310nm SMF LC Optical Qsfp Gbic Transceiver

100G Hilink QSFP28 CWDM4 is designed to operate over single-mode fiber system using 4X25 CWDM channel in 1310 band and links up to 2km. The hilink module converts 4 inputs channel of 25Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission.

Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data. The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm. It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. Single-mode fiber (SMF) is applied in this module.

Product Features:

* Compliant with 100G CWDM4 MSA

* 4 CWDM lanes Mux/De-mux design

* Compliant to SFF-8636 QSFP28 MSA

* 4 independent full-duplex channels

* Up to 26Gbps data rate per channel

* Built-in quad TX CDR and RX CDR

* Single 3.3V power supply

* LAN-WDM laser transmitter

* Transmission distance of 2km over SM fiber with FEC

* RoHS Compliant

Standards:

100G Ethernet

Proprietary High Speed Interconnections

Datacenter

100G CWDM4 application with FEC

Item	Description
Transceiver form factor	QSFP28
Transmission speed	100GE
Center wavelength (nm)	1295, 1300, 1304, 1309
Standards compliance	compatible with the 100GBASE-ER4
Connector type	LC Dual
Applicable cable and maximum transmission distance	Single-mode fiber (G.652): Disables the RS-FEC function: 30 km Enables the RS-FEC function: 40 km
Transmit power (dBm)	-2.5 to +3.2
Maximum receiver sensitivity (dBm)	-18.5
Overload power (dBm)	-3.5
Extinction ratio (dB)	8
Operating temperature	0°C to 70°C (32°F to 158°F)
Part number	HL-QSFP28-100G-ER4

If you have any questions, please click "Contact Now" and send your questions, we will have a professional to provide answers. Thank you!

Part Number	Data Rate	Distance	Wavelength	Output Power	Sensitivity	Remark
HQ28-SR-M85-X1D	100Gbps	MM 100m (OM4)	850nm	-8.4 ~ +2.4dBm	-10.3dBm	QSFP28-100G-SR4
HQ28-LR-L13-10D	100Gbps	SM 10km	1310nm	-4.3 ~ +4.5dBm	-10.6dBm	QSFP28-100G-LR4
HQ28-LR-L13-10C1	100Gbps	SM 10km	1310nm	-4.3 ~ +4.5dBm	-10.6dBm	QSFP28 100G-LR4-Ethernet
HQ28-ER-L13-40D	100Gbps	SM 40km	1310nm	-2.9 ~ +4.5dBm	-16.9dBm	QSFP28 100G-ER4
HQ28-K7-L13-xxx	100Gbps	SM 2km	1310nm	-6.5 ~ +2.5dBm	-11.5dBm	QSFP28 100G-CWDM4

The 25g~100G Series

25G SFP28 SR4	25Gbps 850nm SFP28 transceiver 100M
QSFP-40G-SR4	QSFP-SR4, MMF, 850nm, 150M, MPO
QSFP-40G-CSR4	QSFP+, MMF, 850nm, 300M (OM3) - MPO
QSFP-40G-LR4	QSFP-LR4, SMF, 1270nm~1330nm,15KM LC
QSFP-40G-PSM-IR4	QSFP+-IR4,SMF ,1310NM 2KM MPO
40G QSFP+ PSM 10KM	QSFP+-LR4,SMF ,1310NM 10KM MPO
100G QSFP28 SR4	100GBASE-SR4 QSFP28
QSFP28 CWDM4 2KM	100G QSFP28 CWDM4 2KM 1271~1331
QSFP28 CWDM4 500M	100G QSFP28 CWDM4 500 1271~1331
QSFP28 PSM4 1310nm 2km	QSFP28 PSM4 1310nm 2km MPO SMF
25G SFP28 AOC 1M	25Gbps 850nm Multimode SFP28 AOC 1~100M
25G SFP28 DAC SFF-8402	25G SFP28 to SFP28 DAC 1m 3m 5meter
40G QSFP+ AOC 1M	QSFP-AOC Active 40Gbase 1~100meter
40G QSFP+ DAC 1M	QSFP SFF8436 Passive Cable 1~5M
100G QSFP28 TO QSFP28 DAC	1M 2M 3M 5M SFF-8665 100G QSFP28 Passive
100G QSFP28-SR4 AOC 1M	100GBASE-SR4 QSFP28 AOC Fiber
