Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-QSFP-40G
Video
40GBASE Ethernet SR4 150M 850nm Fiber Optical Transceiver Module With MPO Connector
PRODUCT DESCRIPTIONS
The HL-M40S85-C00 is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for InfiniBand QDR/DDR/SDR,12G/10G/8G/4G/2G fiber channel, PCIe and SAS Applications. The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 11.3Gbps operation for an aggregate data rate of 45.2Gbps 100m using OM3 fiber. These modules are designed to operate over multimode fiber systems using 850nmVCSEL laser array. An optical fiber ribbon cable with an MPO/MTP connector can be plugged into the QSFP module receptacle. QSFP+ SR4 is one kind of parallel transceiver which provides increased port density and total system cost savings.
PRODUCT FEATURES
Four-channel full-duplex transceiver modules
Transmission data rate up to 11.3Gbit/s per channel
Up to 100m on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF
Low power consumption <1.5W
Operating case temperature: 0 to 70℃
3.3V power supply voltage
Hot Pluggable QSFP form factor
MPO connector receptacle
Built-in digital diagnostic function
APPLICATIONS
Proprietary High Speed Interconnections
Infiniband QDR and DDR interconnects
Data Center
QSFP SERIES
| Part Number | Product Description | |
| HL-QSFP-40G-SR4 | QSFP+,40Gb/s, 40GBASE-SR4, MMF, 850nm, 150M | |
| HL-QSFP-40G-LR4 | QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM | |
| HL-QSFP-40G-ER4 | QSFP+, 40Gb/s, 40GBASE-ER4, SMF, 1310nm, 40KM | |
| HL-QSFP28-100G-SR4 | QSFP+, 100Gb/s, 100GBASE-SR4, MMF, 850nm, 150M | |
| HL-QSFP28-100G-LR4 | QSFP+, 100Gb/s, 100GBASE-LR4, SMF, 1310nm, 10KM | |
| HL-QSFP28-100G-ER4 | QSFP+, 100Gb/s, 100GBASE-ER4, SMF, 1310nm, 40KM | |
| HL-QSFP28-100G-ZR4 | QSFP+, 100Gb/s, 100GBASE-ZR4, SMF, 1310nm, 80KM | |

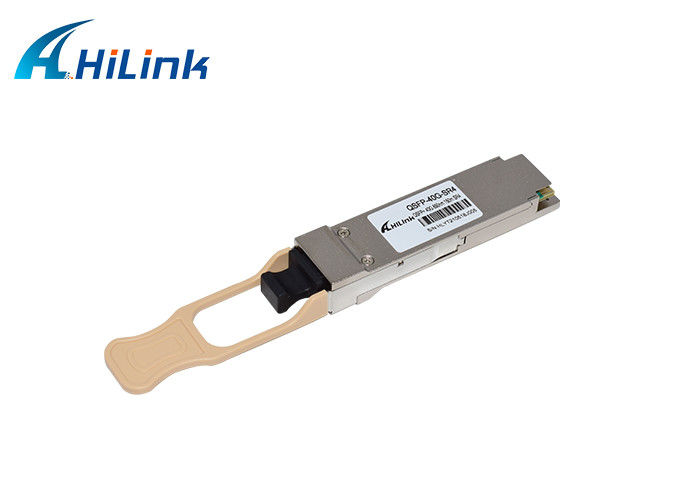

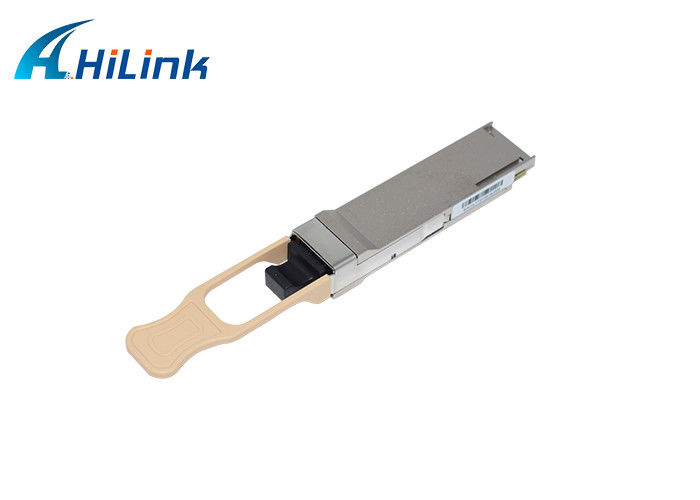

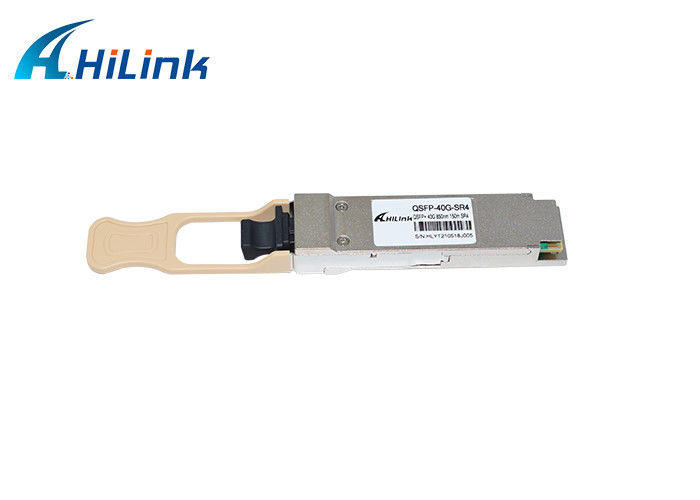

PRODUCT PICTURE SHOW
Our Service
Contact our sales for more details to confirm your order.
Short lead time after confirmation.
We deliver goods by international Express.
Quick response for customers' feedback and other questions.
Shipment & Payment
International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc.
Payment: T/T, Western Union, Paypal and so on.
Guarantee
Brand new.
OEM/ODM is available.
100% through quality test and aging test.
3 years warranty(From the date of shipment).
Technician support
We support technical guide to solve malfunction or substitute components, and provide the project of related networking configuration.
After-sales service
We have after service for 24 hours, promises to supply technical service or guide in anytime.
Our co-workers will be response clients's requirement in 12 hours after emergency happened.
Packing Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.
FAQ:
Q:Do you sell second-hand products?
A:No.All our products are brand new,we never use secont-hand components.
Q:What payment terms do you accept?
A:T/T,Paypal,Western Union are acceptable.
Q:What are the shipping ways can you offer?
A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.
Q:Do your products come with warranty?
A:Yes,We provide 3 years warranty for all our products from the date of shipment.
As we have various kinds of products,if you can't find the correct item you need,please send us inquiry.We will follow up shortly.
Send your inquiry directly to us
