MMF/SMF 1310nm 2km Hilink 40G SR4 QSFP Optical Transceiver Module
PRODUCT DESCRIPTIONS
The HL-MA0S85-C00 is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP28 Transceiver for IEEE 802.3bm,100GBASE SR4 Applications,or 100G Gigabit Ethernet and Infiniband and FDR/EDR Applications. The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 25.78Gbps operation for an aggregate data rate of 103.12Gbps 70m using OM3 fiber.
PRODUCT FEATURES
Four-channel full-duplex transceiver modules
Transmission data rate up to 25.78Gbit/s per channel
Up to 70m on OM3 Multimode Fiber(MMF) and 100m on OM4 MMF
Low power consumption <2.5W
Operating case temperature 0℃ to70℃
3.3V power supply voltage
RoHS 6 compliant
Hot Pluggable QSFP28 form factor
MPO connector receptacle
Built-in digital diagnostic function
APPLICATIONS
IEEE 802.3bm 100GBASE SR4
Proprietary High Speed Interconnections
Data center
QSFP SERIES
| Part Number | Product Description | |
| HL-QSFP-40G-SR4 | QSFP+,40Gb/s, 40GBASE-SR4, MMF, 850nm, 150M | |
| HL-QSFP-40G-LR4 | QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM | |
| HL-QSFP-40G-ER4 | QSFP+, 40Gb/s, 40GBASE-ER4, SMF, 1310nm, 40KM | |
| HL-QSFP28-100G-SR4 | QSFP+, 100Gb/s, 100GBASE-SR4, MMF, 850nm, 150M | |
| HL-QSFP28-100G-LR4 | QSFP+, 100Gb/s, 100GBASE-LR4, SMF, 1310nm, 10KM | |
| HL-QSFP28-100G-ER4 | QSFP+, 100Gb/s, 100GBASE-ER4, SMF, 1310nm, 40KM | |
| HL-QSFP28-100G-ZR4 | QSFP+, 100Gb/s, 100GBASE-ZR4, SMF, 1310nm, 80KM | |

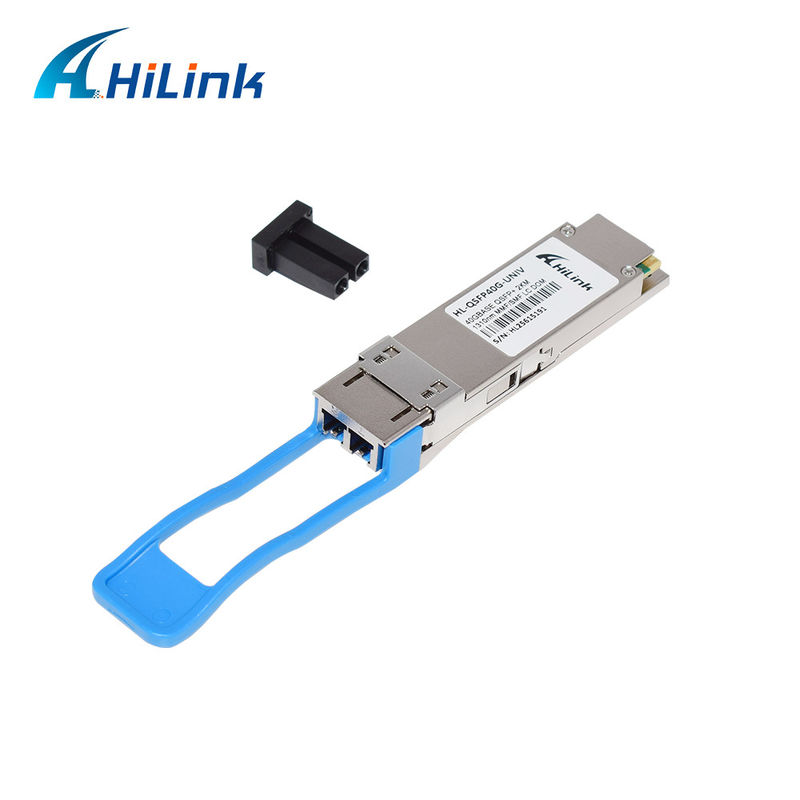

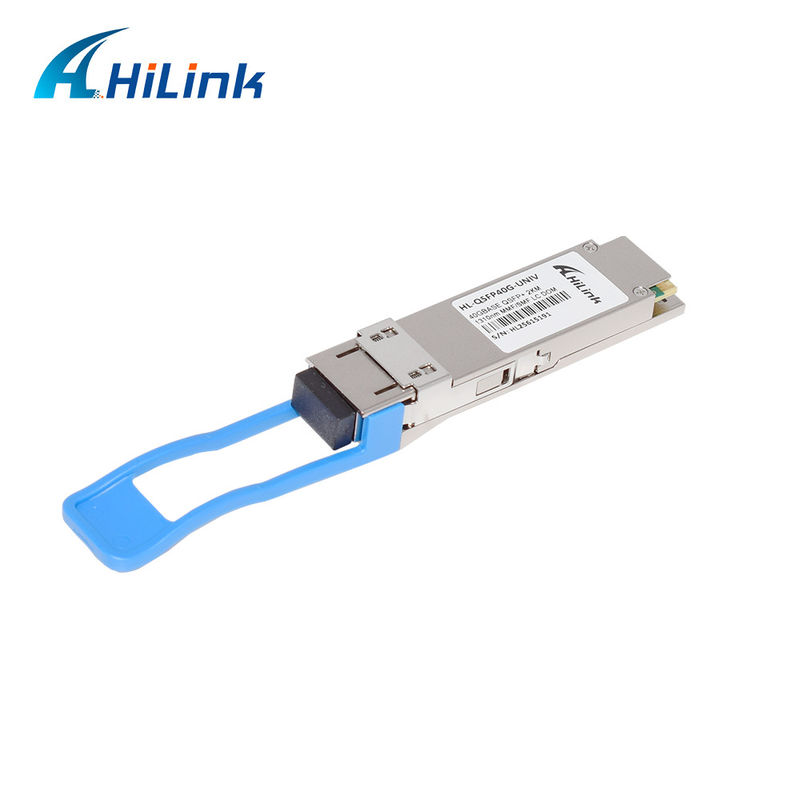

PRODUCT PICTURE SHOW
