Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-100G-SR-850nm

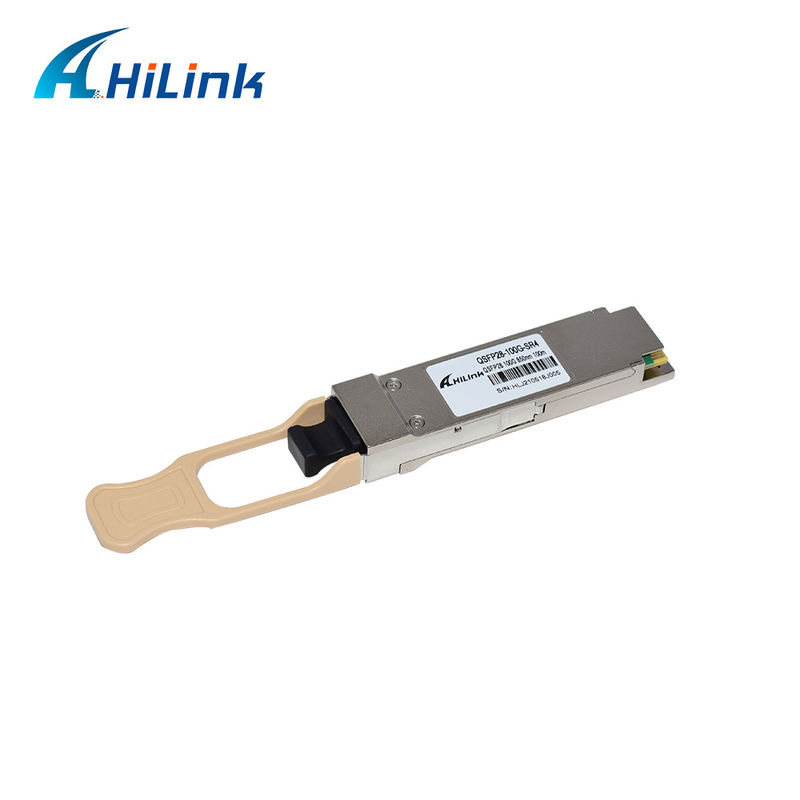

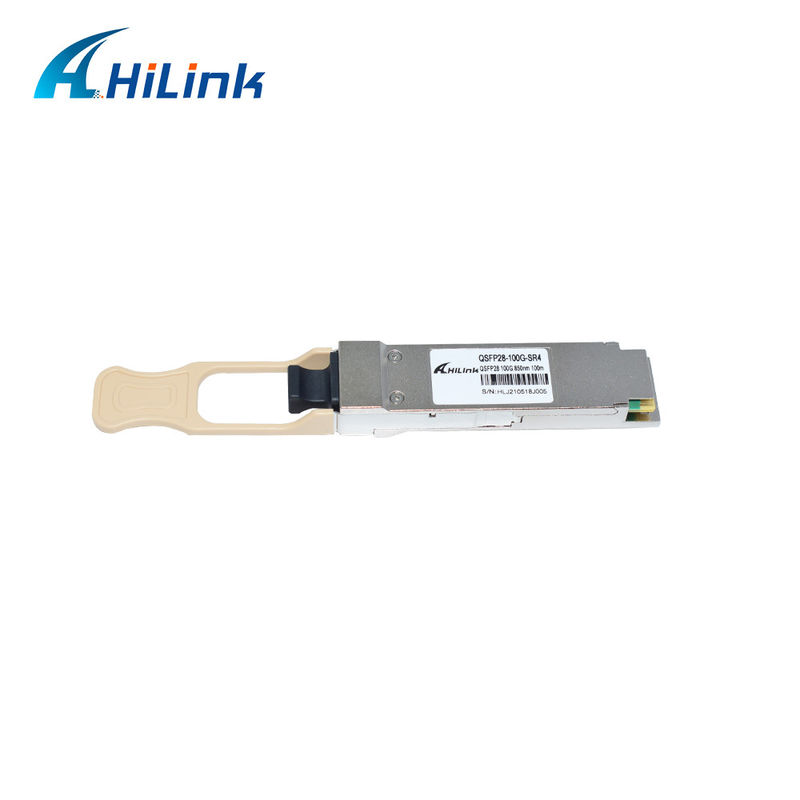

MPO 100G SR 850nm Optical Transceiver Module DDM 100M QSFP28 Sfp Optical Transceiver
Product Features
MTP/MP0 optical connector
Single +3.3V power supply
Hot-pluggable QSFP28 MSA form factor
Up to 100m OM4 MMF Distance
4x28G Electrical Serial Interface (CEI-28G-VSR)
AC coupling of CML signals
Low power dissipation(Max:3.5W)
Built in digital diagnostic function
Operating case temperature range:0℃ to 70℃
Compliant with 100GBASE-SR4
I2C Communication Interface
Applications
100GBASE-SR4
Infiniband QDR/DDR/SDR
100G Datacom connections
|
Item |
Description |
|---|---|
| Transceiver form factor | QSFP+ |
| Transmission speed | 40GE |
| Center wavelength (nm) | 850 |
| Standards compliance | 40GBASE-SR4 |
| Connector type | MPO/PC (8-strand or 12-strand, type B, female connector) |
| Applicable cable and maximum transmission distance |
|
| Transmit power (dBm) | -7.6 to +2.4 |
| Maximum receiver sensitivity (dBm) | -5.4 |
| Overload power (dBm) | 2.4 |
| Extinction ratio (dB) | 3.0 |
| Operating temperature | 0°C to 70°C (32°F to 158°F) |
| Part number | HL-QSFP-40G-SR4 |
Standards
Compliant with IEEE 802.3ba
Compliant with QSFP28 MSA hardware specifications
Compliant with RoHS
QSFP28 series
| Package | Part Number | Data Rate | Reach | Wave | TX | RX Sens | Power Cons | Interface |
| (km) | (nm) | (dBm) | (dBm) | |||||
| QSFP28 SR4 | HL-QSFP28-SR4 | 100G | 150m | 850 | -8.4~2.4 | -10.3 | <2W | MPO |
| QSFP28 PSM4 | HL-QSFP28-PSM4 | 100G | 2km | 1310 | -6.0~2.0 | -10.1 | <3.5W | MPO |
| QSFP28 CWDM4 | HL-QSFP28-IR4 | 100G | 2km | CWDM | -6.5~2.5 | -10.1 | <3.5W | LC |
| QSFP28 LR4 | HL-QSFP28-LR4 | 100G | 10km | LAN WDM | -4.3~4.5 | -10.6 | <3.5W | LC |
| QSFP28 LR4 25KM | HL-QSFP28-25K | 100G | 25km | LAN WDM | -4.1~4.5 | -11.5 | <3.5W | LC |
| QSFP28 ER4 Lite | HL-QSFP28-ER4 | 100G | 40km | LAN WDM | -2.5~4.5 | -18.5 | <4W |
Guarantee:
›& Brand new.
›& OEM/ODM is available.
›& 100% through quality test and aging test.
›& 3 years warranty(From the date of shipment).
Technician support:
We support technical guide to solve malfunction or substitute components, and provide the project of related networking configuration.
After-sales service
We have after service for 24 hours, promises to supply technical service or guide in anytime.
Our co-workers will be response clients's requirement in 12 hours after emergency happened.
Packing Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.
FAQ:
1. Q:Do you sell second-hand products?
A:No.All our products are brand new,we never use second-hand components.
2. Q:What payment terms do you accept?
A:T/T,Paypal,Western Union are acceptable.
3. Q:What are the shipping ways can you offer?
A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.
4. Q:Do your products come with warranty?
A:Yes,We provide 3 years warranty for all our products from the date of shipment.
5. Q:What devices can your products compatible with?
A:Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
6. Q:How to place an order?
A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.
