Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL- 40G - QSFP-IR4
Video
40G QSFP+ IR4 PSM MPO Connector 2KM transmitting distance 1310nm wavelength QSFP modules
Our products are compatible with Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.
QSFP+ 40GBASE-LR4 SMF 1270~1330nm 2KM SMF/MMF LC Connector
40G QSFP+ IR4
Features :
Full duplex 4 channel 1310nm parallel module
Transmission data rate up to 11.3Gbit/s per channel
SFF-8436 QSFP+ compliant
Hot pluggable electrical interface
Singlemode fiber with MPO connectors
Differential AC-coupled high speed data interface
4 channels 1310nm FP array ,4 channels PIN photo detector array
Maximum link length of 2km on G652 single mode fiber (SMF)
Maximum power consumption 3.5W
Housing isolated from connector ground
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS 6 compliant
Applications :
Infiniband Connectivity SDR/DDR/QDR
10/40 Gigabit Ethernet
2/4/8 Gbps Fiber Channel
Data Centers and Storage Arrays
QSFP Series :
| ordering information | |
| Part Number | Product Description |
| HiLink-QSFP-40G-SR4 | QSFP+, 40Gb/s, 40GBASE-SR4, MMF, 850nm, 100M |
| HiLink-QSFP-40G-LR4 | QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM |
| HiLink-QSFP-100G-SR4 | QSFP+, 100Gb/s, 100GBASE-SR4, MMF, 850nm, 100M |
| HiLink-QSFP-100G-LR4 | QSFP+, 100Gb/s, 100GBASE-LR4, SMF, 1310nm, 10KM |
| HiLink-QSFP-40G-IR4 | QSFP+, 40Gb/s, 100GBASE-IR4, SMF, 1310nm, 2KM |
| HiLink-QSFP-40G-IR4 | QSFP+, 40Gb/s, 100GBASE-IR4, SMF, 1310nm, 10KM |

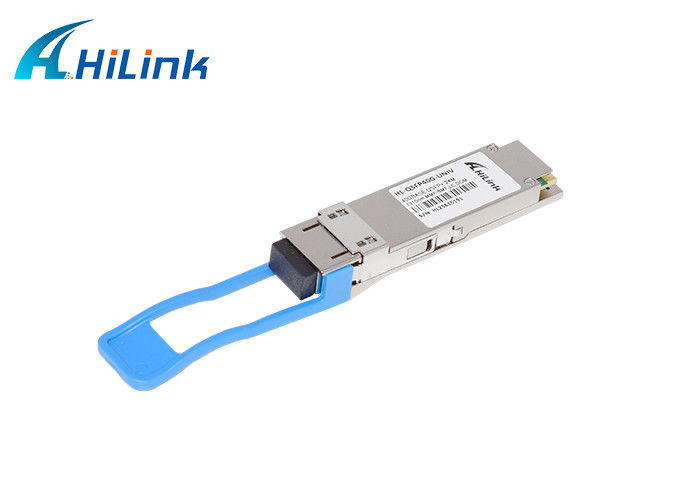

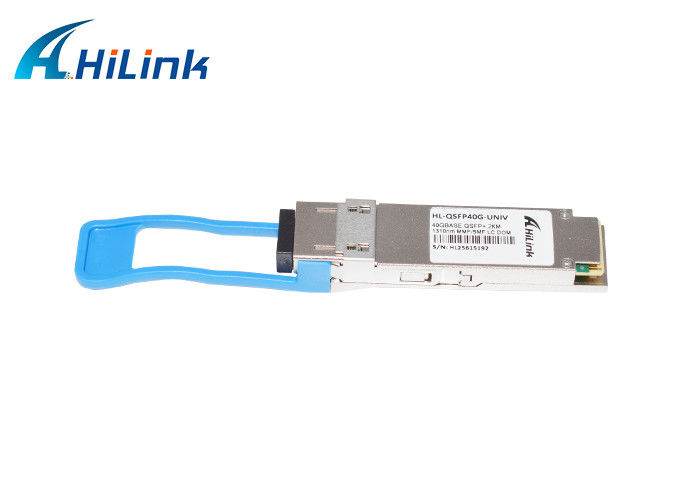

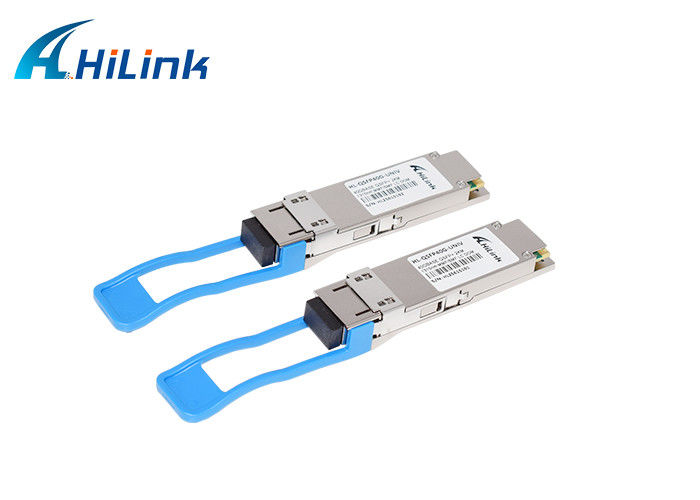

PRODUCT PICTURE:
