Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-Q28-100G-SR4

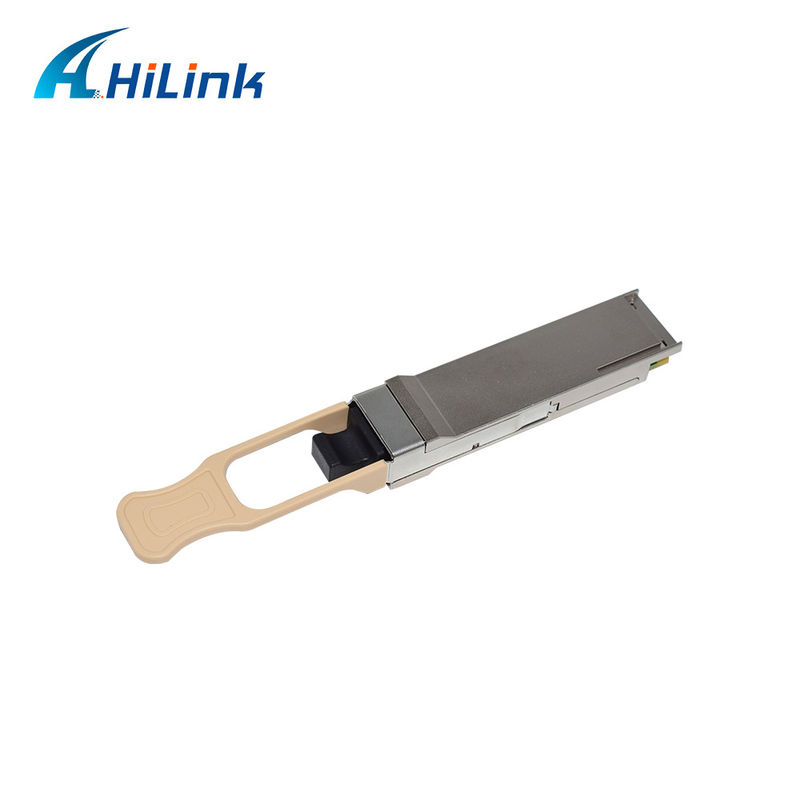

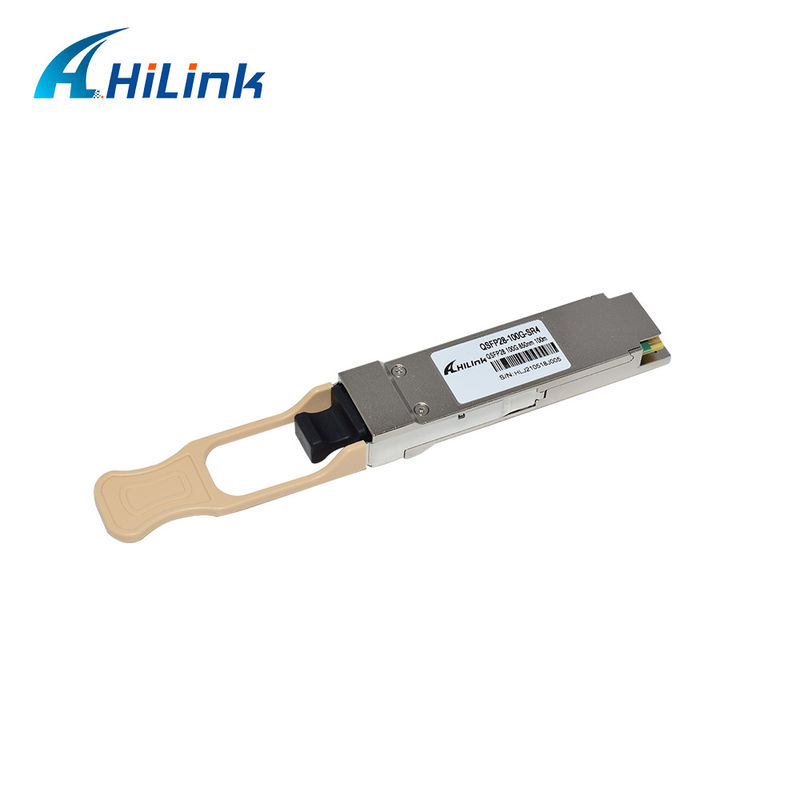

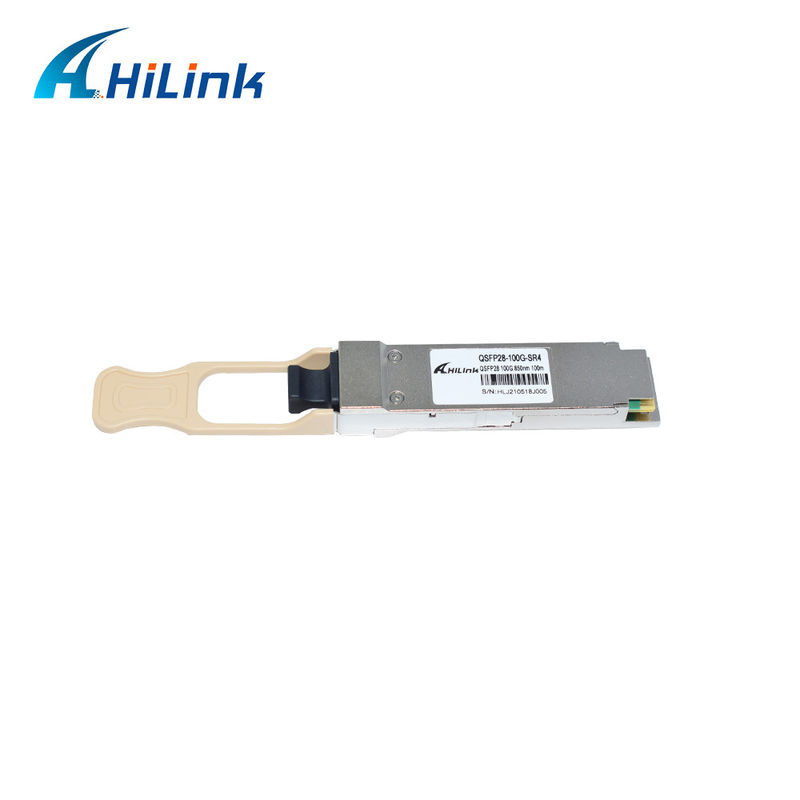

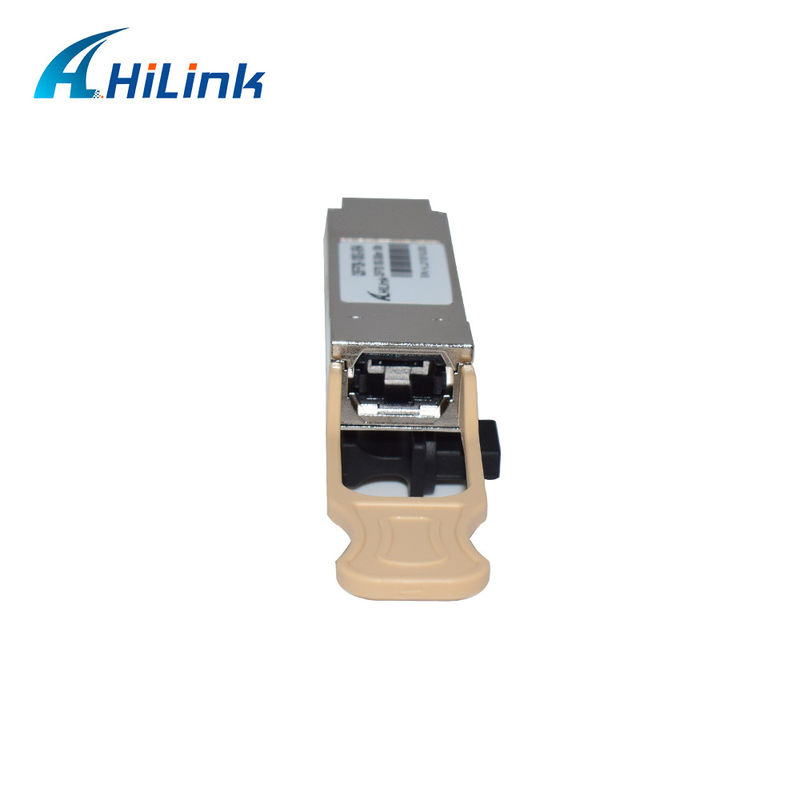

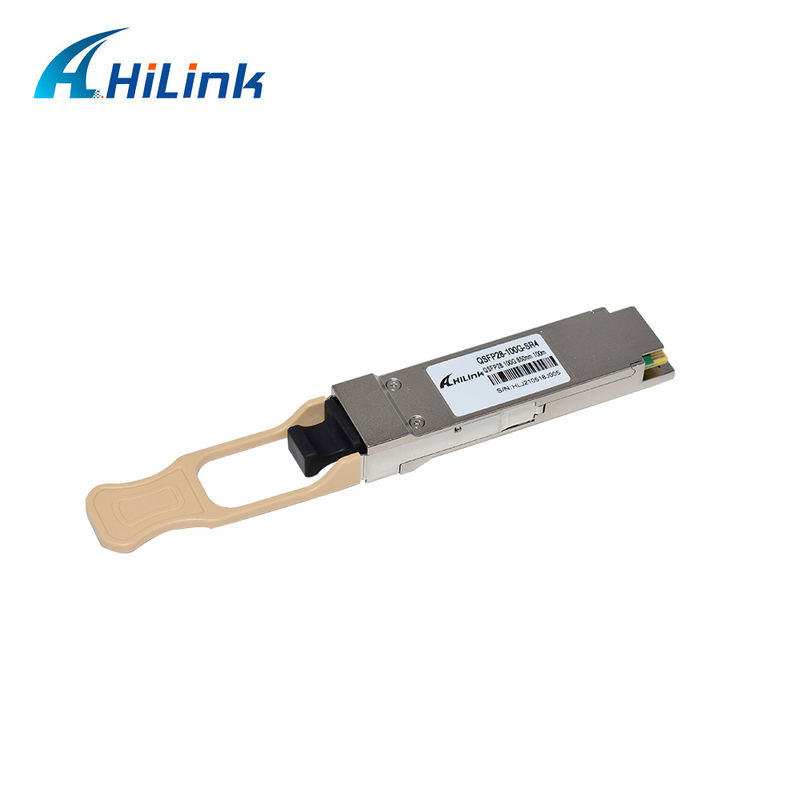

MPO 100G 850nm SR Optical Transceiver Module DDM 100M QSFP28
Product Features
MTP/MP0 optical connector
Single +3.3V power supply
Hot-pluggable QSFP28 MSA form factor
Up to 100m OM4 MMF Distance
4x28G Electrical Serial Interface (CEI-28G-VSR)
AC coupling of CML signals
Low power dissipation(Max:3.5W)
Built in digital diagnostic function
Operating case temperature range:0℃ to 70℃
Compliant with 100GBASE-SR4
I2C Communication Interface
Applications
100GBASE-SR4
Infiniband QDR/DDR/SDR
100G Datacom connections
|
Item |
Description |
|---|---|
| Transceiver form factor | QSFP28 |
| Transmission speed | 100GE |
| Center wavelength (nm) | 850 |
| Standards compliance | 100GBASE-SR4 |
| Connector type | MPO/PC (8-strand or 12-strand, type B, female connector) |
| Applicable cable and maximum transmission distance |
|
| Transmit power (dBm) | -7.6 to +2.4 |
| Maximum receiver sensitivity (dBm) | -5.4 |
| Overload power (dBm) | 2.4 |
| Extinction ratio (dB) | 3.0 |
| Operating temperature | 0°C to 70°C (32°F to 158°F) |
| Part number | HL-QSFP28-100G-SR4 |
Standards
Compliant with IEEE 802.3ba
Compliant with QSFP28 MSA hardware specifications
Compliant with RoHS
QSFP28 series
| Package | Part Number | Data Rate | Reach | Wave | TX | RX Sens | Power Cons | Interface |
| (km) | (nm) | (dBm) | (dBm) | |||||
| QSFP28 SR4 | HL-QSFP28-SR4 | 100G | 150m | 850 | -8.4～2.4 | -10.3 | <2W | MPO |
| QSFP28 PSM4 | HL-QSFP28-PSM4 | 100G | 2km | 1310 | -6.0～2.0 | -10.1 | <3.5W | MPO |
| QSFP28 CWDM4 | HL-QSFP28-IR4 | 100G | 2km | CWDM | -6.5～2.5 | -10.1 | <3.5W | LC |
| QSFP28 LR4 | HL-QSFP28-LR4 | 100G | 10km | LAN WDM | -4.3～4.5 | -10.6 | <3.5W | LC |
| QSFP28 LR4 25KM | HL-QSFP28-25K | 100G | 25km | LAN WDM | -4.1～4.5 | -11.5 | <3.5W | LC |
| QSFP28 ER4 Lite | HL-QSFP28-ER4 | 100G | 40km | LAN WDM | -2.5～4.5 | -18.5 | <4W | LC |
OEM and ODM
OEM/ODM order is available.
Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
What we supply
We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with most of brands. If more details, please contact us.
International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.
