Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-CWDM LGX2x-xx

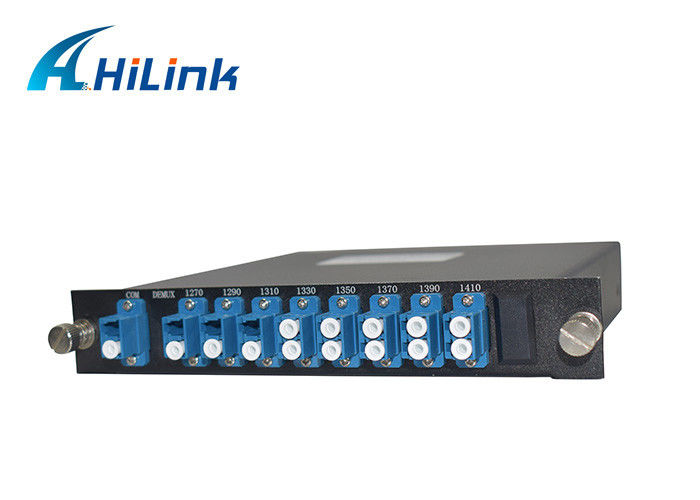

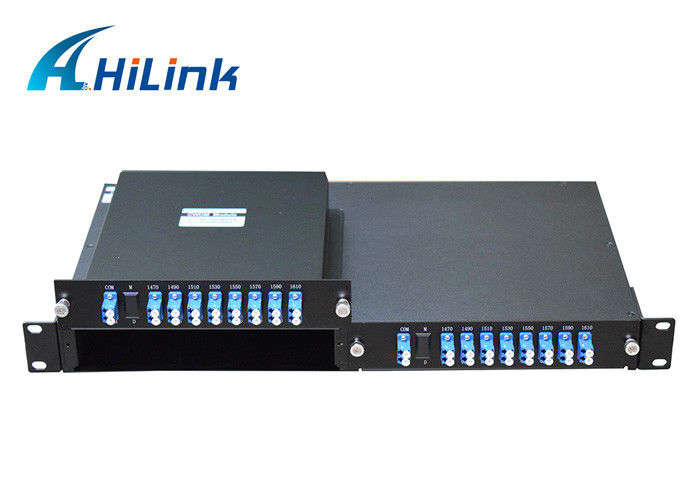

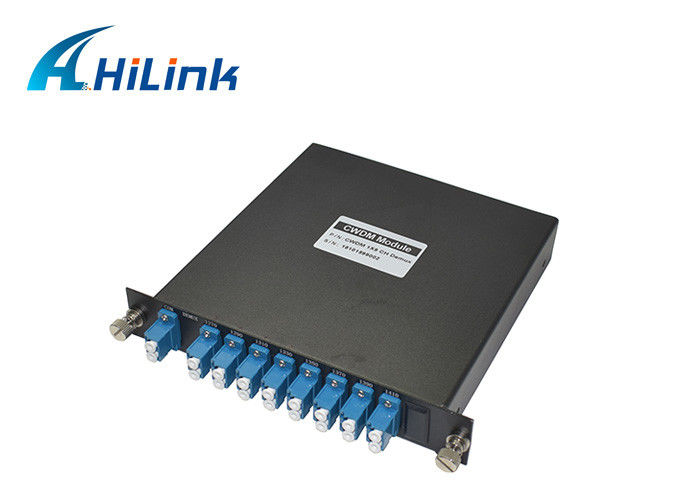

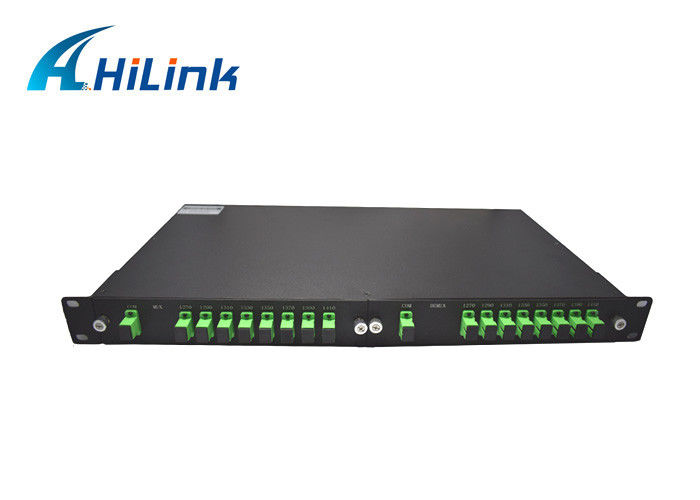

Compact 2 Slot Half-Sized 8ch LGX Cassette Dual Fiber CWDM Mux Demux Module in 19" Rack Mount
The Hilink compact CWDM Mux/Demux Module over a single or duplex single mode fiber is quite common to extend your overall bandwidth. It offer high stability and reliability, and has small package size. Its operating wavelength is from 1270nm to 1610nm(1261nm-1611nm) which totally offer 18 channels with 20nm channel spacing. It's always used with CWDM SFP/XFP/SFP28
Feature:
-1. Low Insertion Loss
-2. High Reliability and Stability
-3. Low PDL
-4. Compact Design 2 in one rack mounted
-5. Wide Operating Wavelength: 1270nm-1610nm (1261nm~1611nm)
-6. Wide Operating Temperature: -20 to +80℃
Applications
CWDM System
WDM Network
| Parameter for referrence | |||||||||
|
Operating Wavelength (nm) |
Mux | 1470 | 1490 | 1510 | 1530 | 1550 | 1570 | 1590 | 1610 |
| Insertion Loss (dB) | <2.5 | 2.19 | 1.73 | 1.31 | 1.19 | 0.87 | 0.73 | 0.8 | 0.39 |
|
Operating Wavelength (nm) |
Demux | 1470 | 1490 | 1510 | 1530 | 1550 | 1570 | 1590 | 1610 |
| Insertion Loss (dB) | <2.5 | 0.37 | 0.57 | 0.65 | 0.84 | 1 | 1.25 | 1.6 | 1.61 |
Example of CWDM solution:
