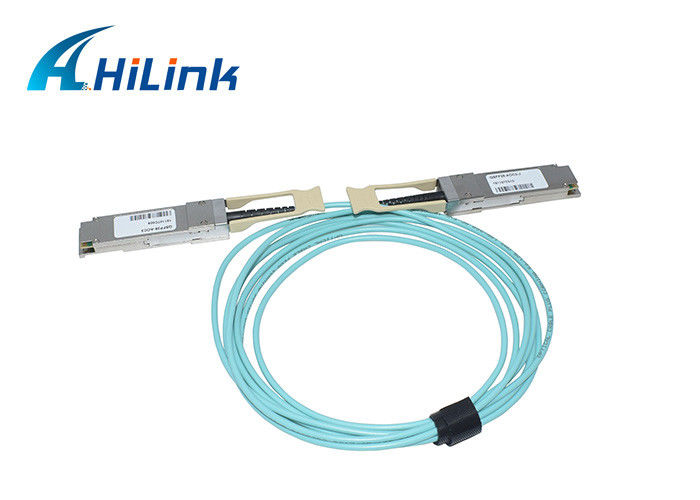

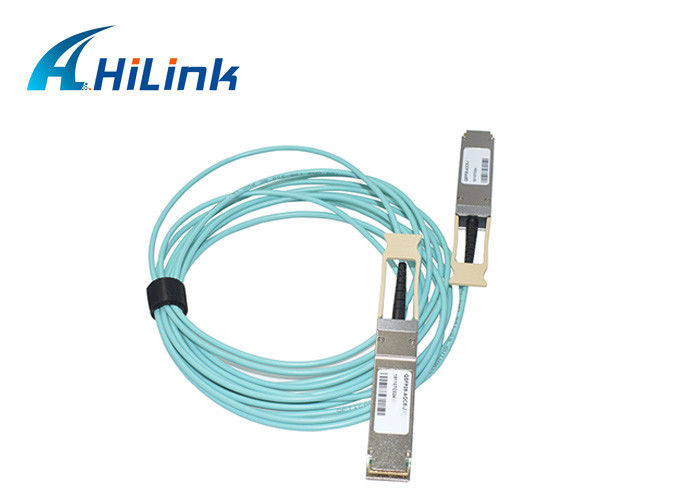

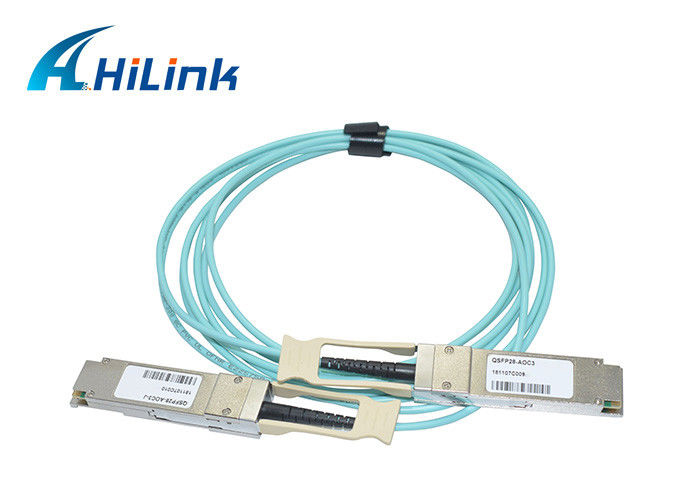

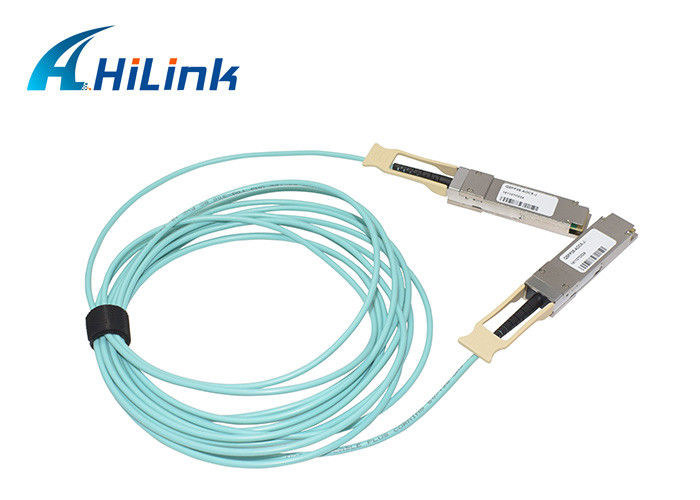

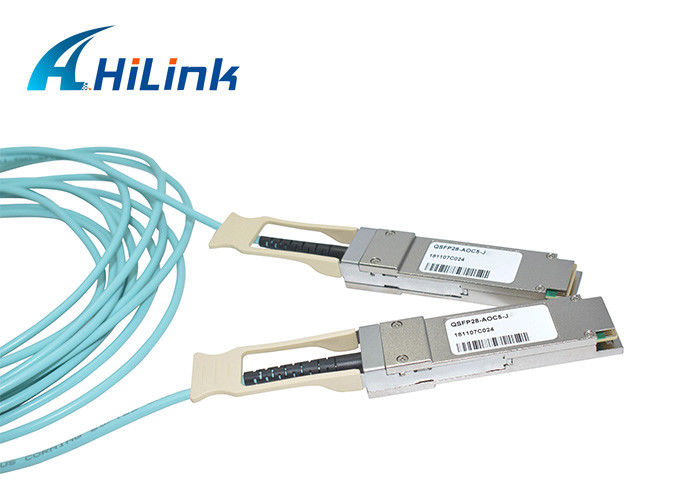

100G AOC Hilink Optical Active Cable For QSFP28 Port Switch

Optical Active Cable 100G AOC Hilink For QSFP28 Port Switch

Description

The HQS-MPO101-XXXC is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ AOC for 100 Gigabit Ethernet and Infiniband EDR Applications. This AOC is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 100 Gbps bandwidth. Each lane can operate at 25.78125 Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses an 12 fiber MTP (MPO) connector. This module incorporates HTD proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.

Features

¨ 4 channels full-duplex transceiver modules

¨ Supports 100Gbps total data rate

¨ Transmission data rate up to 28.05Gbps per channel

¨ 4 channels 850nm VCSEL array

¨ 4 channels PIN photo detector array

¨ Low power consumption <3.5W

¨ Hot Pluggable QSFP form factor

¨ Maximum link length of 70m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF

¨ Single MPO connector receptacle

¨ Built-in digital diagnostic functions

¨ Operating case temperature 0°C to +70°C

¨ 3.3V power supply voltage

¨ RoHS 6 compliant(lead free)

Applications

¨ IEEE 802.3bm 100GBASE SR4

¨ Infiniband EDR

¨ 128G Fibre Channel

¨ 4x28Gb/s Multimode OTN

QSFP Cable Series

OEM and ODM

OEM/ODM order is available.

Shipment

International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 2-7 days.

Guarantee

We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.

What we supply

We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with Mainstream switches.
