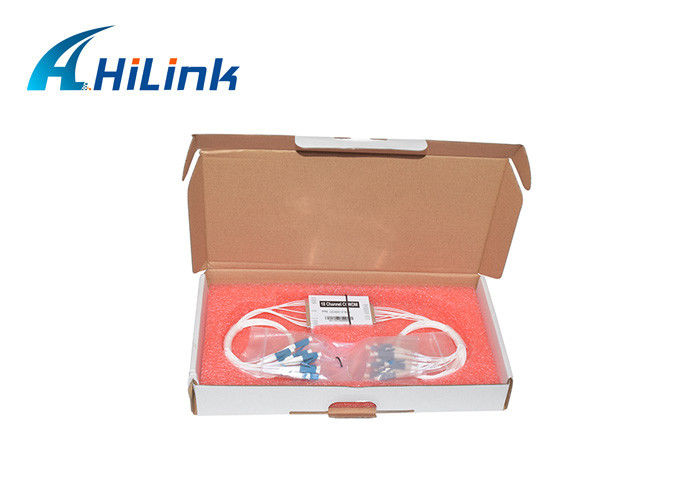

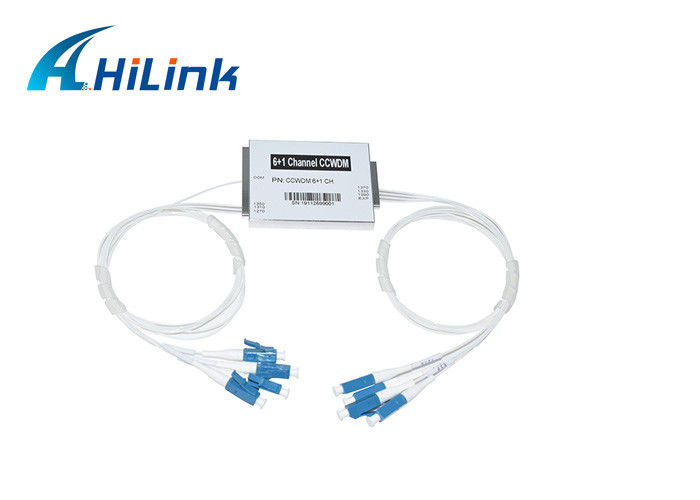

6+1CH MINI CWDM solution CCWDM module LC UPC connectors 0.5M Length
Compact Coarse Wavelength Division Multiplexing (CCWDM) is the use of the Fiber Optical Multiplexer to different wavelengths of light signals multiplexed to a single optical fiber for transmission, at the receiving end of the link, with the Fiber Optical Multiplexer fiber mixed signal is decomposed into different wavelengths signal, connected to the respective receiving device
Features
Low Insertion Loss
High Isolation
Low PDL
Compact Design, Mini size
Good channel-to-channel uniformity
Wide Operating Wavelength:
From 1260nm to 1620nm
Wide Operating Temperature:
From -40°C to 85°C
High Reliability and Stability
Applications
Specifications
| Description | Unit | Min | Typical | Max. | ||
| Optional channel loss | dB | 0.8 | 1.0 | |||
| Pass band width | nm | 13 | ||||
| Flatness | dB | 0.3 | 0.5 | |||
| Adjacent channel isolation | dB | 30 | 35 | |||
| Non adjacent channel isolation | dB | 40 | 45 | |||
| Directivity | dB | 55 | ||||
| PDL | dB | 0.2 | ||||
| PMD | ps | 0.2 | ||||
| Max. power | mw | 300 | ||||
| Pass channel insertion loss | P | dB | 0.8 | 1.0 | ||
| A | 1.0 | 1.5 | ||||
| Channel wavelength | nm |
1471 1491 1511 1531 1551 1571 1591 1611 Can be selected on request or any 4channel between 1260-1625 |
||||
| Operating temperature | °C | 0 ~+70 | ||||
| Storage temperature | °C | -40 ~+85 | ||||
| Package | mm | 43(L)X28(W)X6(H) or customerized | ||||
Order Information:
| CCWDM4+1- | XXXX- | X- | X- | XX- | X- | X |
|
|
Wavelength | Grade | Pigtail Type | Length | connector | package |
|
1471 .... 1491 1611 |
P A |
0=bare fiber 250um 1=900um loose tube 2=2mm cable 3=3mm cable |
05=0.5m 10=1.0m 15=1.5m |
0=none 1=FC/PC 2=FC/APC 3=SC/PC 4=SC/APC 5=LC/PC 6=Others |
0=Standard 1=Special |
simplex or duplex
Fiber connector: LC/SC or other
Package: ABS plastic box, LGX metal cassette box, 19inch rack mount
