Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-DAC
Video

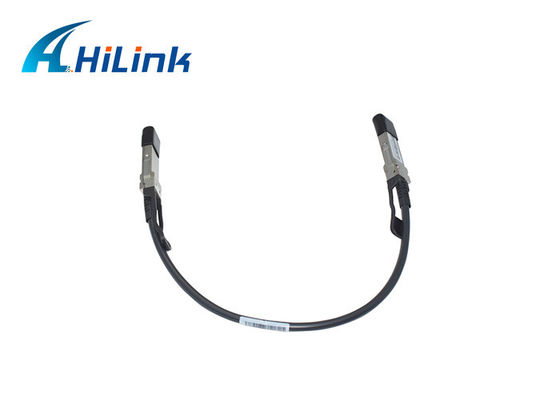

40G QSFP to QSFP DAC Direct Attach Cable 0.5M Compatible With Most Switches Routers
QSFP to QSFP DAC 1M
40 Gigabit Ethernet QSFP+ passive copper cable assembly, 1m length
QSFP+ copper direct-attach cables are suitable for very short distances and offer a highly cost-effective way to establish a 40-Gigabit link between QSFP+ ports of QSFP+ switches within racks and across adjacent racks. These cables are used for 40GbE and Infniband standards to maximize performance.
Features
w Hybrid cable conforms to the Small Form Factor SFF-8436 and SFF-8431
w Support for multi-gigabit data rates :1.0 Gbps - 10.3125 Gbps (per channel)
w Maximum aggregate data rate: 41.25 Gbps (4 x 10.3125Gbit/s)
w Hybrid cable link length up to 5m (passive limiting)
w High-Density QSFP 38-PIN and QSFP 38-PIN Connector
w Power Supply :+3.3V
w Low power consumption: 0.02 W (typ.)
w Temperature Range: 0~ 70 °C
Applications
w 10G/40Gigabit Ethernet
w InfiniBand SDR, DDR, QDR
w Switches, Routers, and HBAs
w Data Centers
w Fibre Channel
w Networked storage systems
w Computer cluster cross-connect
