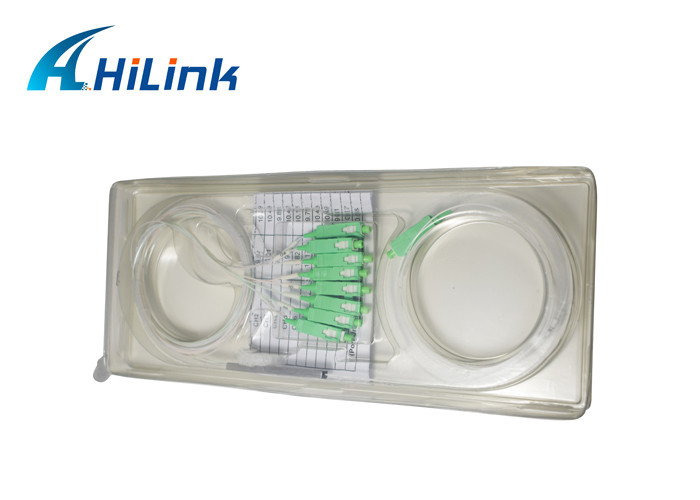

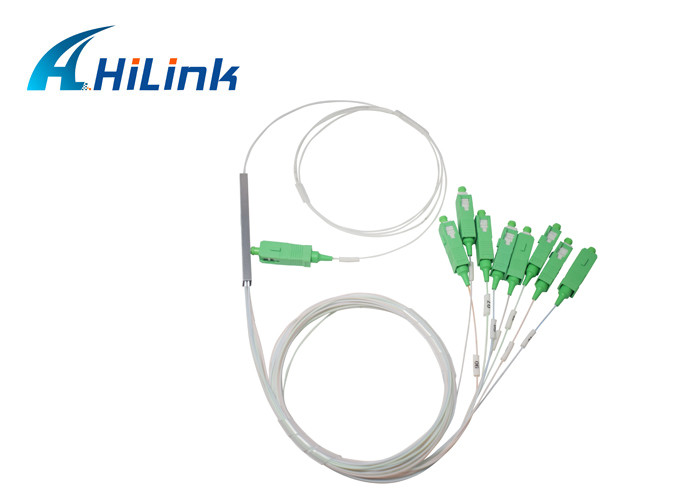

Passive Network Mini Steel pipe SC/APC Singlemode Fiber Optical FTTH 1x8 PLC Splitter FBT Coupler
Description
1).Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.
2).Fiber optic splitter features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
3).Rollball provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.
4).Fiber optic splitter meet GR-1209-CORE and GR-1221-CORErequirements.
Feature
1).Low Insertion loss
2).Low PDL
3).Compact Design
4).Good channel-to-channel uniformity
5).Wide Operating Wavelength: 1260-1650nm
6).Wide Operating Temperature: -40°C - 85°C
7).High Reliability and Stability
Application
1).FTTX Systems
2).PON Networks
3).CATV Links
4).Optical Signal Distribution
Specification
| Parameters | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 |
| Operating Wavelength (nm) | 1260~1650 | ||||
| Fiber Type | SMF-28e or customer specified | ||||
| Insertion Loss (dB)(S/P Grade) | 4.2 | 7.6 | 11.0 | 14.5 | 17.5 |
| Loss Uniformity (dB) | 0.8 | 1.5 | 1.5 | 2.0 | 2.5 |
| Return Loss (dB) (S/P Grade) | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.4 | 0.4 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40~85 °C)(dB) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (°C) | -40~85 | ||||
| Storage Temperature (°C) | -40~85 | ||||
| Module Dimension (mm) (L×W×H) | 100×80×10 | 100×80×10 | 120×80×18 | 140×115×18 | 140×115×18 |
Notes:1.Specified without connectors. 2.Add an additional 0.2dB loss per connector
